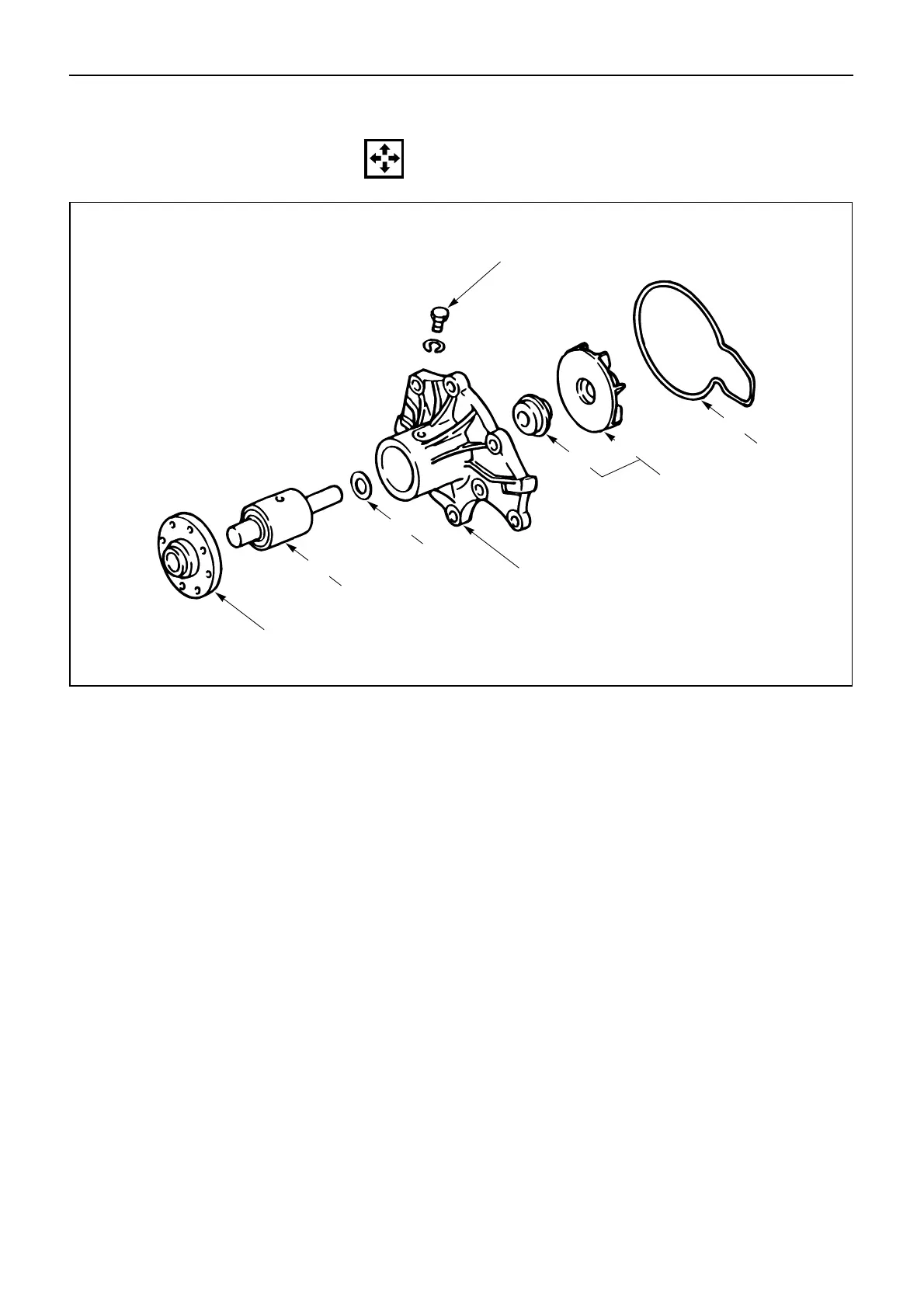

COOLING SYSTEM

WATER PUMP

DISASSEMBLY

125

2

1

4

7

6

5

3

★

★

★

★

★

Disassembly Steps

▲ 1. O-ring

2. Set screw

▲ 3. Cooling fan center

▲ 4. Impeller and seal unit

▲ 5. Bearing unit

6. Thrower

7. Water pump body
