ENGINE ASSEMBLY ( 1 )

39

DISASSEMBLY

SINGLE UNIT

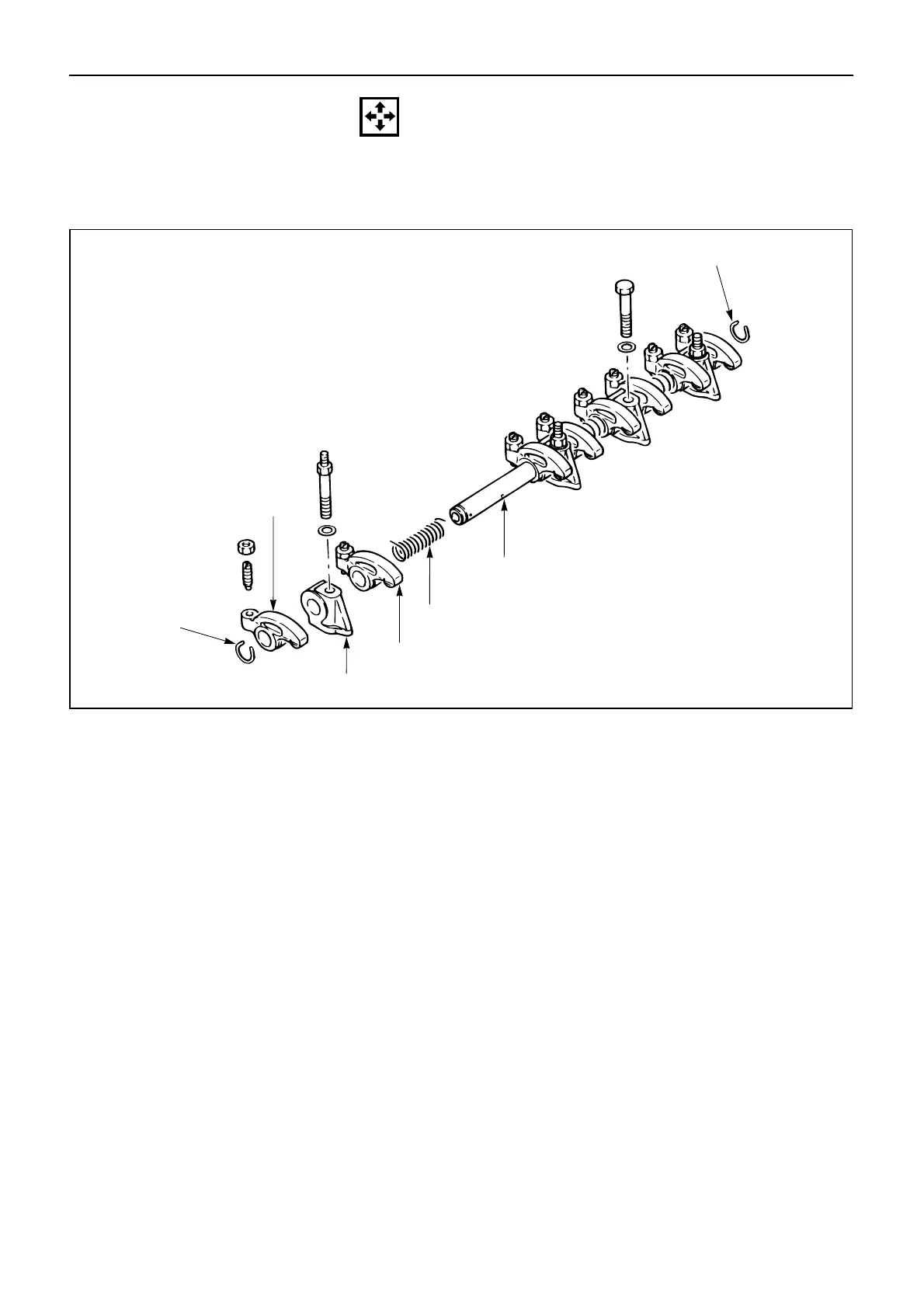

ROCKER ARM SHAFT AND ROCKER ARM

6

7

5

4

3

1

2

Disassembly Steps

▲ 1. Rocker arm shaft snap ring

▲ 2. Rocker arm

▲ 3. Rocker arm shaft bracket

4. Rocker arm

5. Rocker arm shaft spring

6. Rocker arm shaft snap ring

7. Rocker arm shaft
