Isuzu A-4JB1 Repair Manual

ENGINE ELECTRICALS
154
INSPECTION AND REPAIR
Make the necessary adjustments, repairs, and part replacements if excessive wear or damage is dis-
covered during inspection.

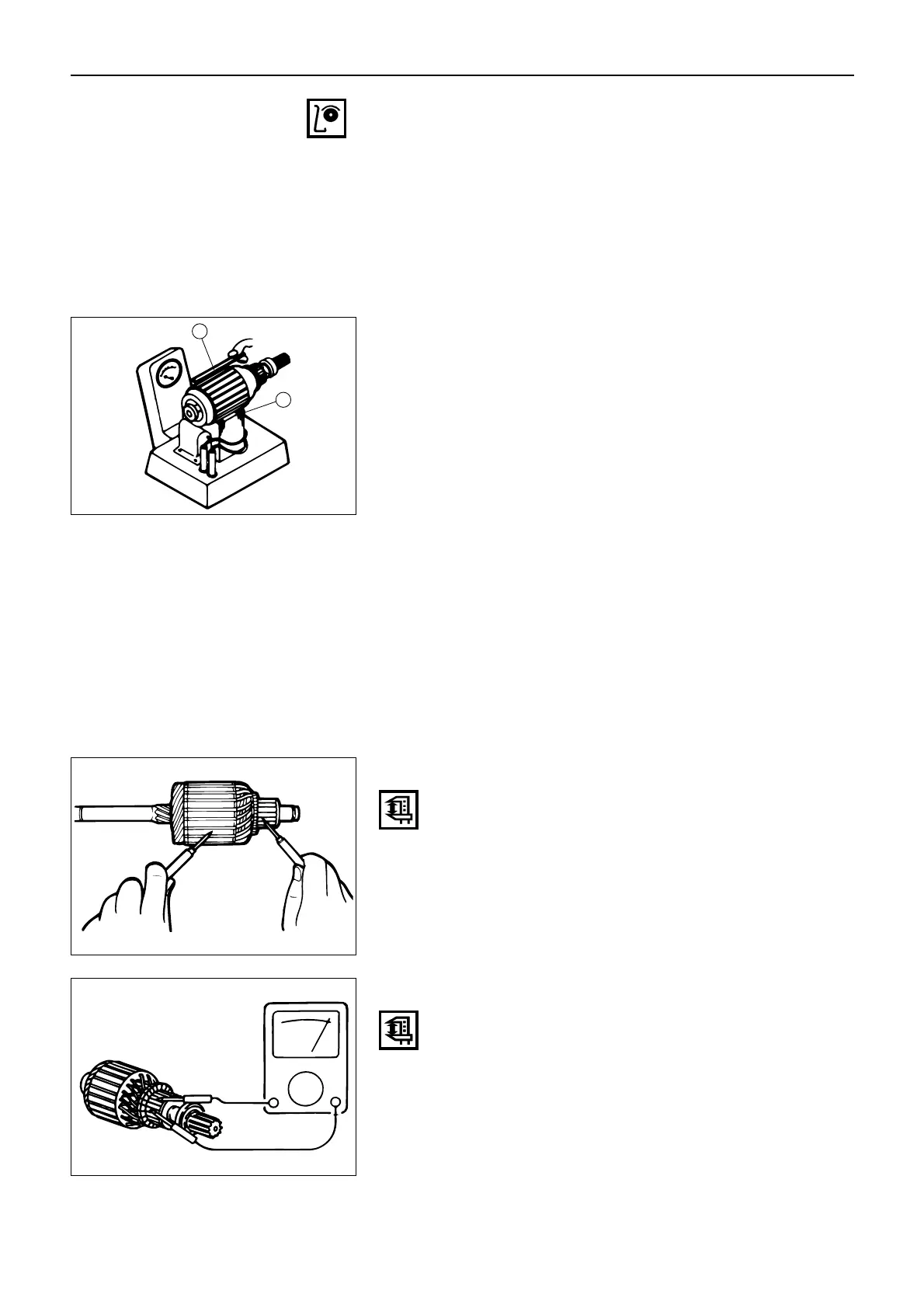

ARMATURE
Armature Short Circuit Test
1. Place the armature on a growler tester 1.
2. Hold a hack saw blade 2 against the armature core
while slowly rotating the armature.
If the armature is short circuited, the hack saw blade
will vibrate and will be attracted to the armature
core.
A short circuited armature must be replaced.
1
2
Armature Winding Ground Test
Check for continuity across the commutator segments
and the core.
If there is continuity, the armature is internally grounded
due to insulation failure and must be replaced.
Armature Winding Continuity Test
Check for continuity across the commutator segment.
If there is no continuity, the armature coil is open and
must be replaced.
