FUEL SYSTEM

138

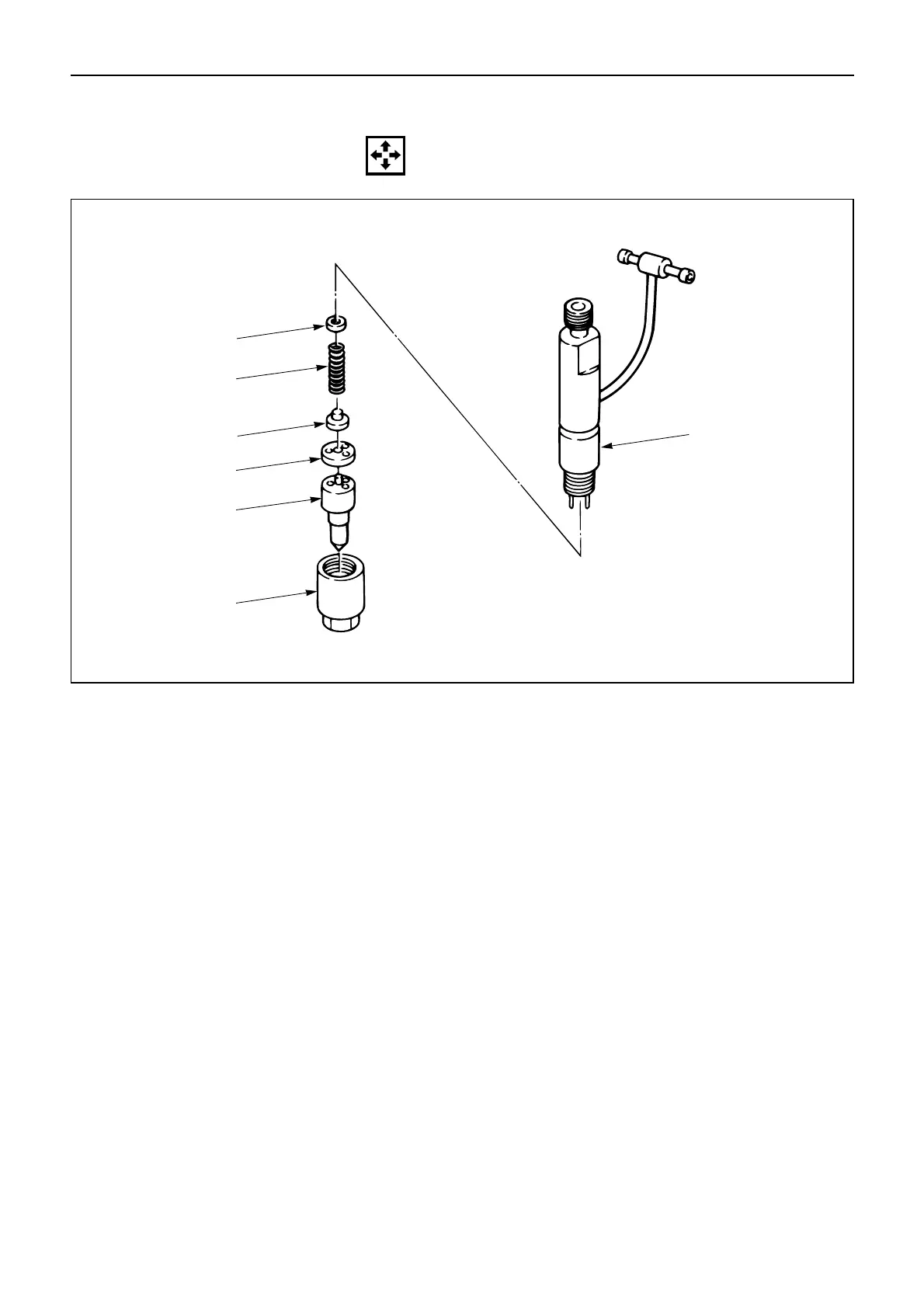

INJECTION NOZZLE

DISASSEMBLY

7

6

5

4

3

2

1

Disassembly Steps

1. Retaining nut

▲ 2. Injection nozzle

3. Spacer

4. Spring seat

5. Spring

6. Adjusting shim

7. Nozzle holder
