ENGINE ASSEMBLY ( 1 )

DISASSEMBLY

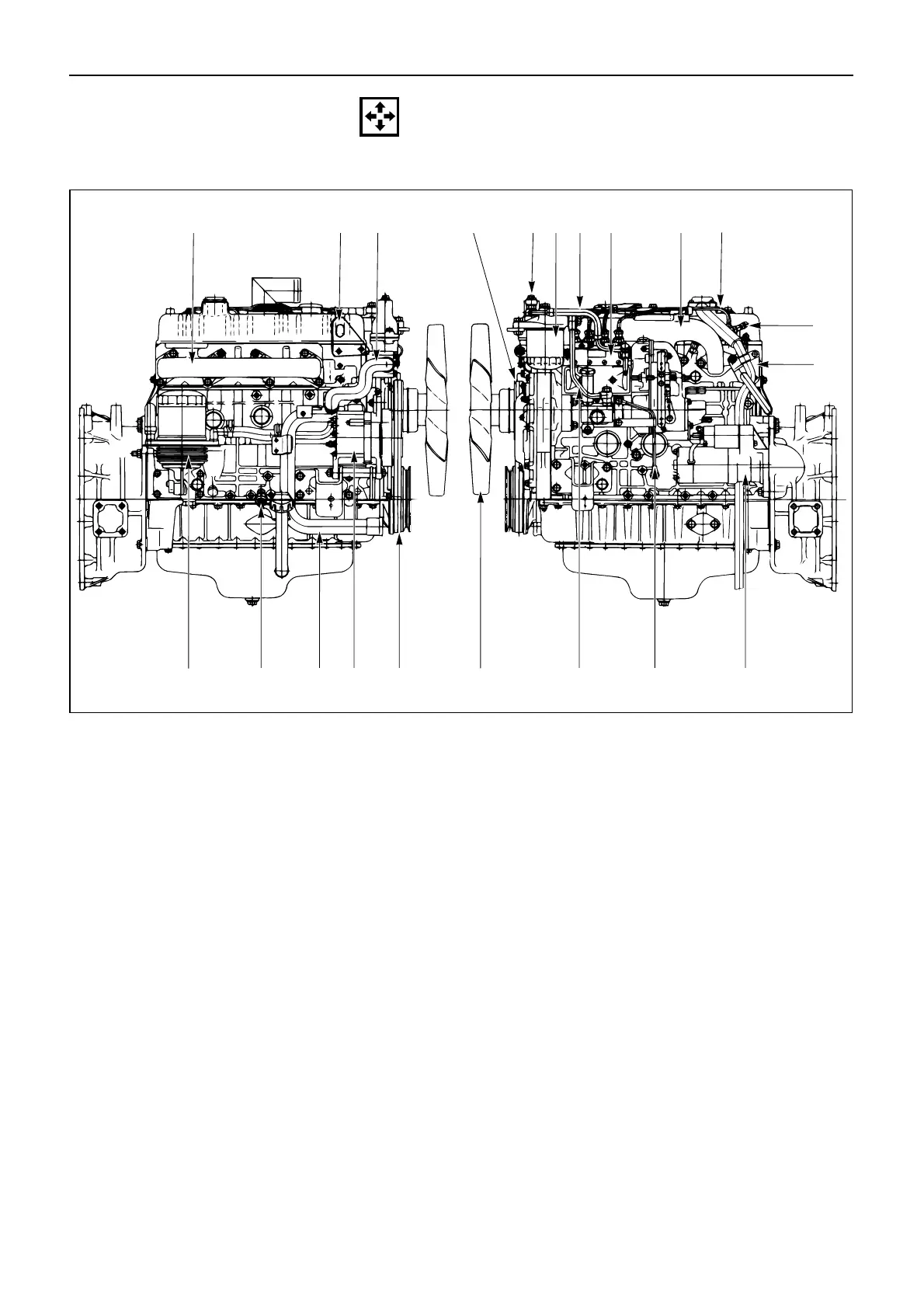

These disassembly steps are based on the A-4JA1 engine.

21 20 18 3 7 8 5 13 14 12

16 17 19 4 2 1 6 9 15

Disassembly Steps - 1

1. Cooling fan and spacer

2. Cooling fan drive belt

3. Cooling fan drive pulley

4. Alternator and adjusting plate

5. Fuel pipe (Fuel filter to

injection pump)

6. Fuel pipe (Fuel filter to feed pump)

7. Fuel pipe (Fuel filter leak off)

8. Fuel filter

9. Oil pipe (Injection pump to cylinder

body)

10. Rear engine hanger

11. Fuel leak off pipe

▲ 12. Fuel injection pipe with clip

▲ 13. Injection pump

14. Intake manifold

15. Starter

16. Oil filter

17. Oil pressure switch

18. Cooling water rubber hose

19. Cooling water intake pipe

20. Front engine hanger

▲ 21. Exhaust manifold
