– 17 –

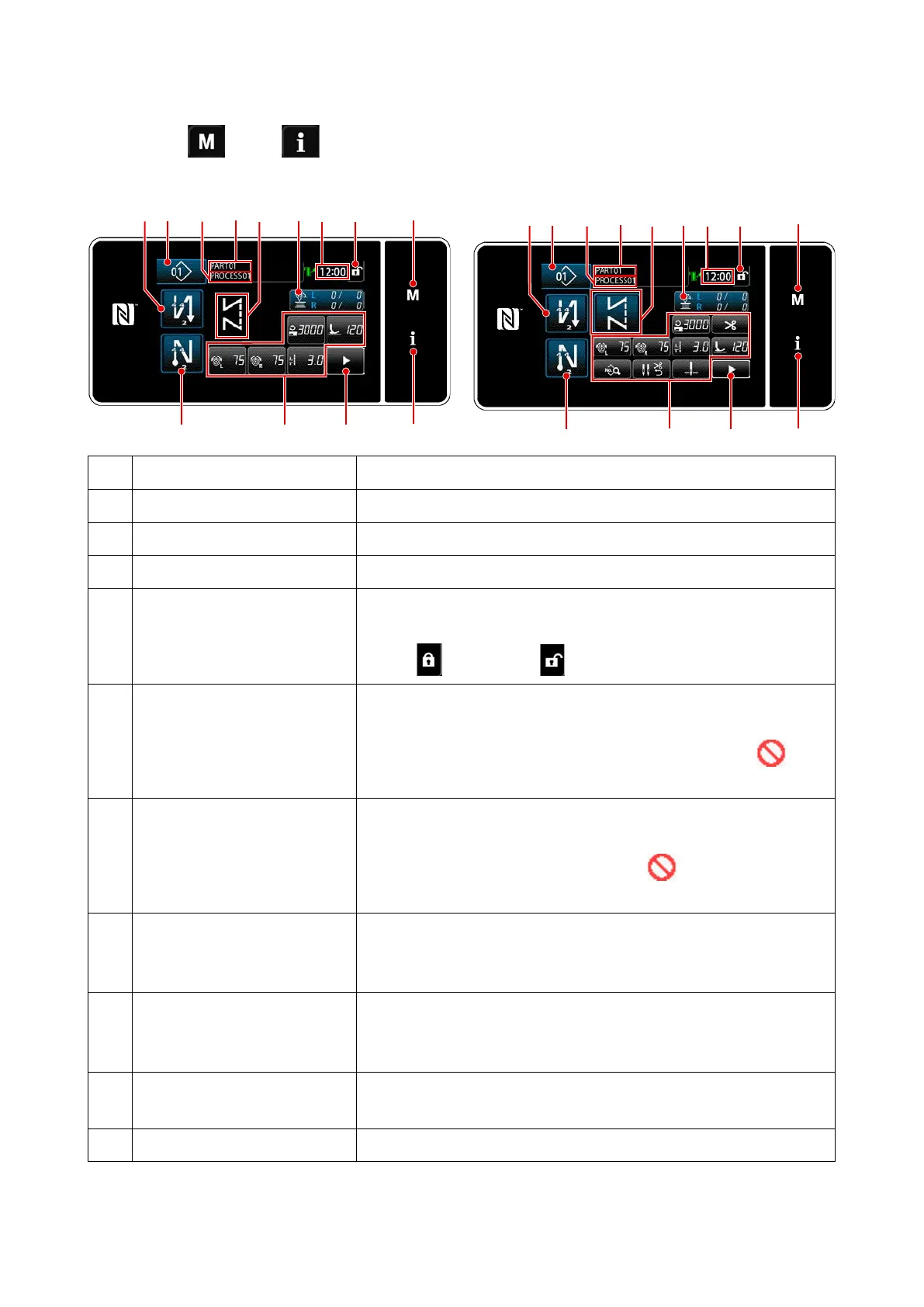

2-16-2. Names and functions of the panel keys
Switch/display Description
❶
Mode key This switch is used for displaying the menu screen.
❷
Information key This switch is used for displaying the information screen.
❸
Sewing pattern No. button This switch is used for displaying the number of the sewing pattern.
❹
screen on it.
Locked: Unlocked:
❺
Sewing-start reverse-feed
stitch button
This switch is used for changing the ON/OFF status of the reverse
feed stitching at the beginning of sewing. When reverse feed stitch-
ing at the beginning of sewing is placed in the OFF state, mark
is displayed at the upper left of the button.
❻
Sewing-end reverse-feed stitch
button
This switch is used for changing the ON/OFF status of reverse feed
stitching at the end of sewing. When reverse feed stitching at the
end of sewing is placed in the OFF state, mark is displayed at
the upper left of the button.
❼
Part number In the case the part number/process display is selected with U404,
the part number is displayed. In the case the comment display is
selected, the comment is displayed.
❽
Process/comment In the case the part number/process display is selected with U404,
the process is displayed. In the case the comment display is select-
ed, the comment is displayed.
❾
Clock display
hour system.
Sewing pattern display
<Operator mode> <Maintenance personnel mode>
* Changeover between the operator mode and the maintenance personnel mode is carried out by
pressing
❶
and
❷
simultaneously.
❹ ❶❸
❷❻
❺ ❼
❽ ❾
❹ ❶❸
❷❻
❺ ❼
❽ ❾
To Next Page
