Overview ! 41

Chapter 5: Installing Modules

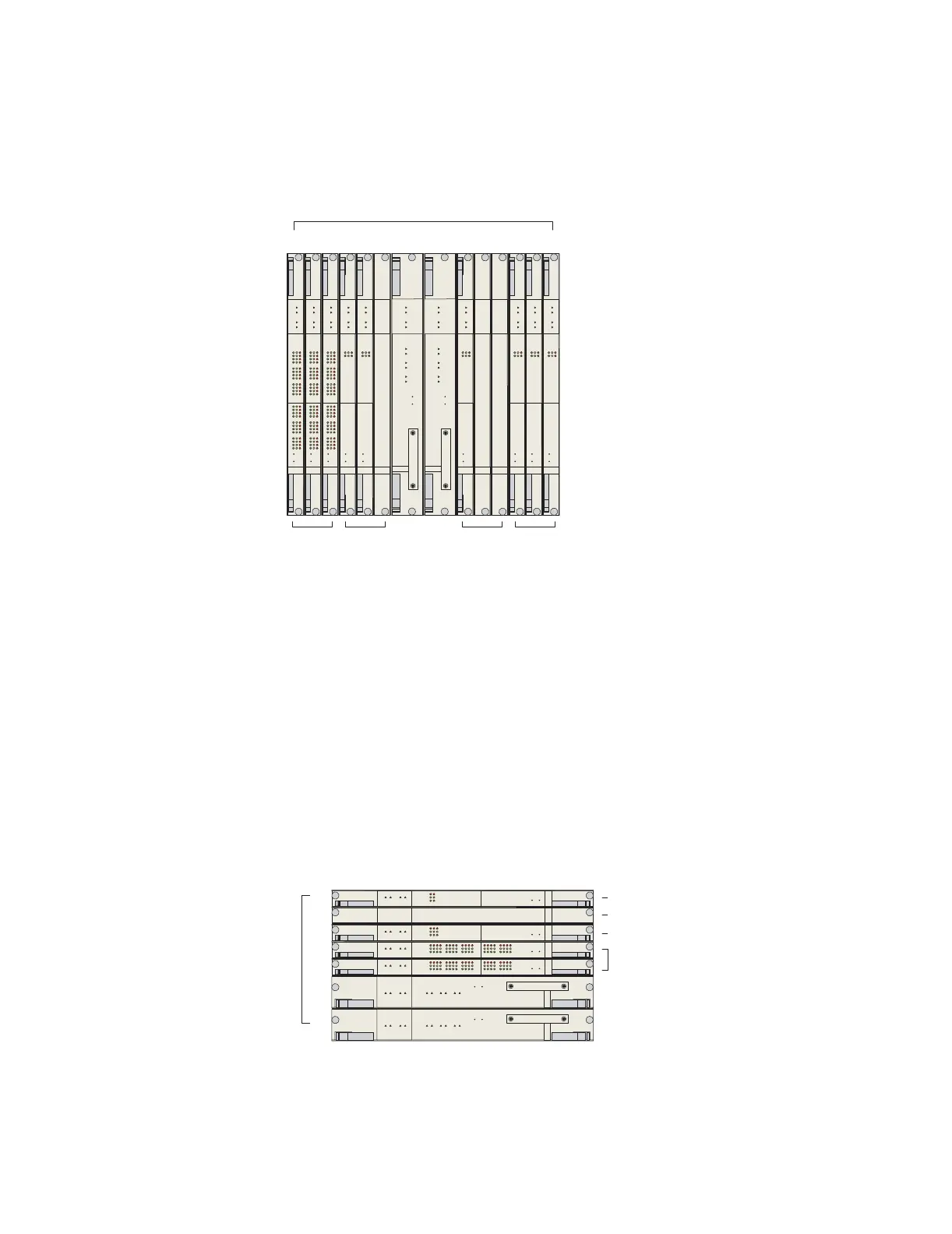

Figure 22: ERX-1410 slot groups

Slot Groups for the ERX-7xx Models

A slot group in an ERX-7xx model comprises one slot or two adjacent slots. The

groups for an ERX-7xx model consist of the following slots (Figure 23):

! Slot group 1 – slots 2 and 3

! Slot group 2 – slot 4

! Slot group 3 – slot 5

! Slot group 4 – slot 6

Slots 0 and 1 are reserved for the SRP modules.

Figure 23: ERX-7xx model slot groups

SRP SRP

CT3 OC3CT1 OC3CT1CT1 CT3 CT3 CT3

Chassis slots

12340 5 6 7 8 9 10 11 12 13

Slot

group 1

Slot

group 2

Slot

group 3

Slot

group 4

g013743

Slot group 1

Slot group 2

Slot group 3

Slot group 4

SRP SRP

E3 ATM

OC3CE1 CE1

Chassis slots

g013744
