Section 13: Test Script Builder (TSB) Series 2600A System SourceMeter® Instruments Reference Manual
Figure 13-13
Importing a script from memory of the Series 2600A
Instrument console
With communications established with the SourceMeter instrument, the Instrument Console is
used for the following operations:
• Execute chunks, which are individual ICL commands and TSL programming statements.
• Display returned data (readings and messages).
• Display error messages caused by erroneous code sent from the Instrument Console.
The instrument console is opened by clicking the Instrument Console tab in the lower window
pane of the Test Script Builder (see
Figure 13-1).

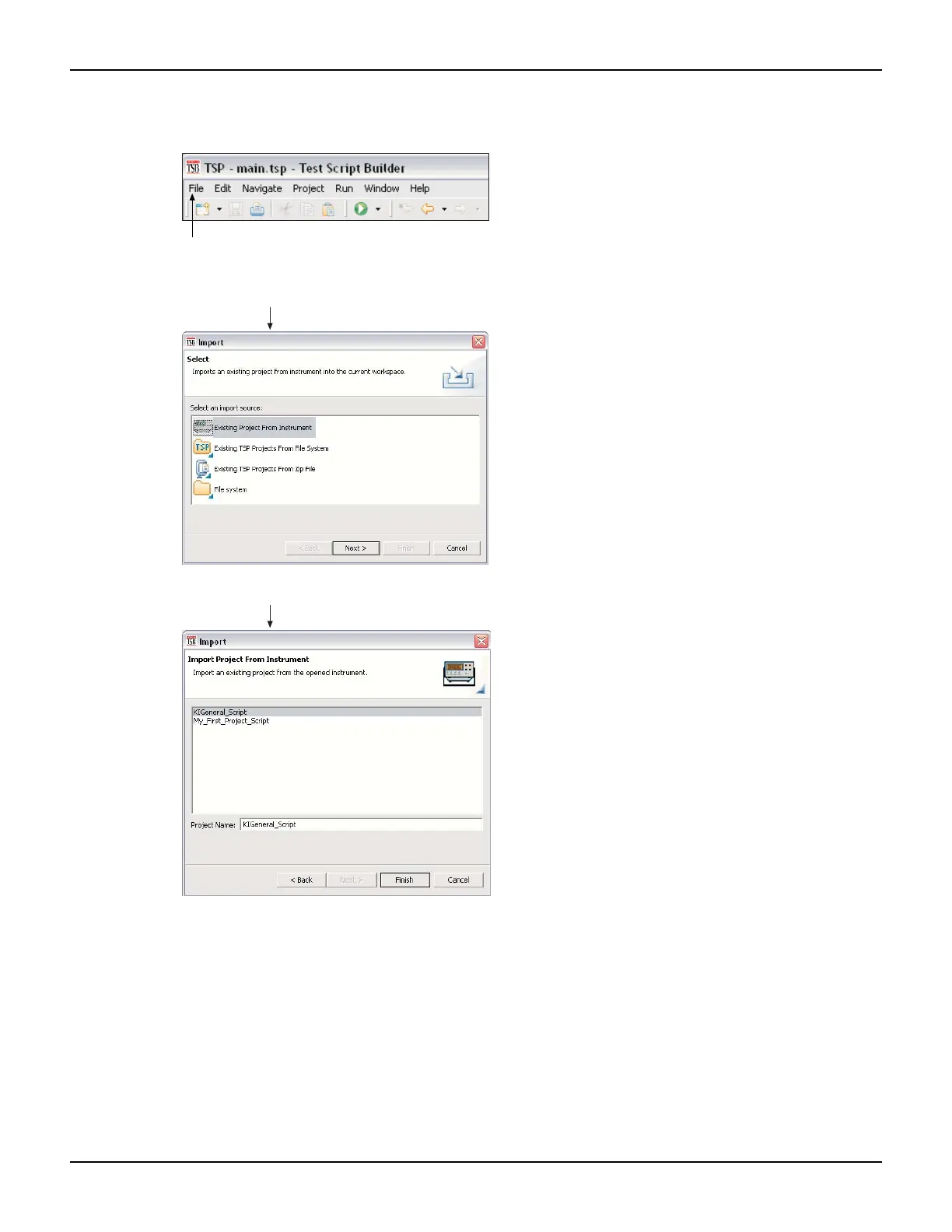

A) Click File to display the drop-down file menu
and click Import to open the Import wizard.
B) In the Import Select box, click Existing Project
From Instrument and then click Next.
C) In the Import Project From Instrument box, click
the KIGeneral_Script project, and then click Finish.

Keithley 2600a series Specifications

General

Category	Source Measure Unit (SMU)
Model	2600A Series
Type	Precision SourceMeter
Voltage Range	±200V
Current Range	±10fA to ±10A (depending on model)
DC Current	±10A
Pulse Current	±100A
Maximum Power	20W to 200W (depending on model)
Power per Channel	20W
Accuracy	0.012% basic
Interface	GPIB, USB, Ethernet
Power Supply	100V to 240V, 50Hz to 60Hz
Weight (1-channel)	4.5kg
Channels	1 or 2
Dimensions (1-channel)	89 mm high x 214 mm wide x 429 mm deep (3.5 in x 8.4 in x 16.9 in)
Dimensions (2-channel)	89 mm high x 214 mm wide x 429 mm deep (3.5 in x 8.4 in x 16.9 in)
