G3-4 Front Wheel Hub and Spindle 04/03 G03018

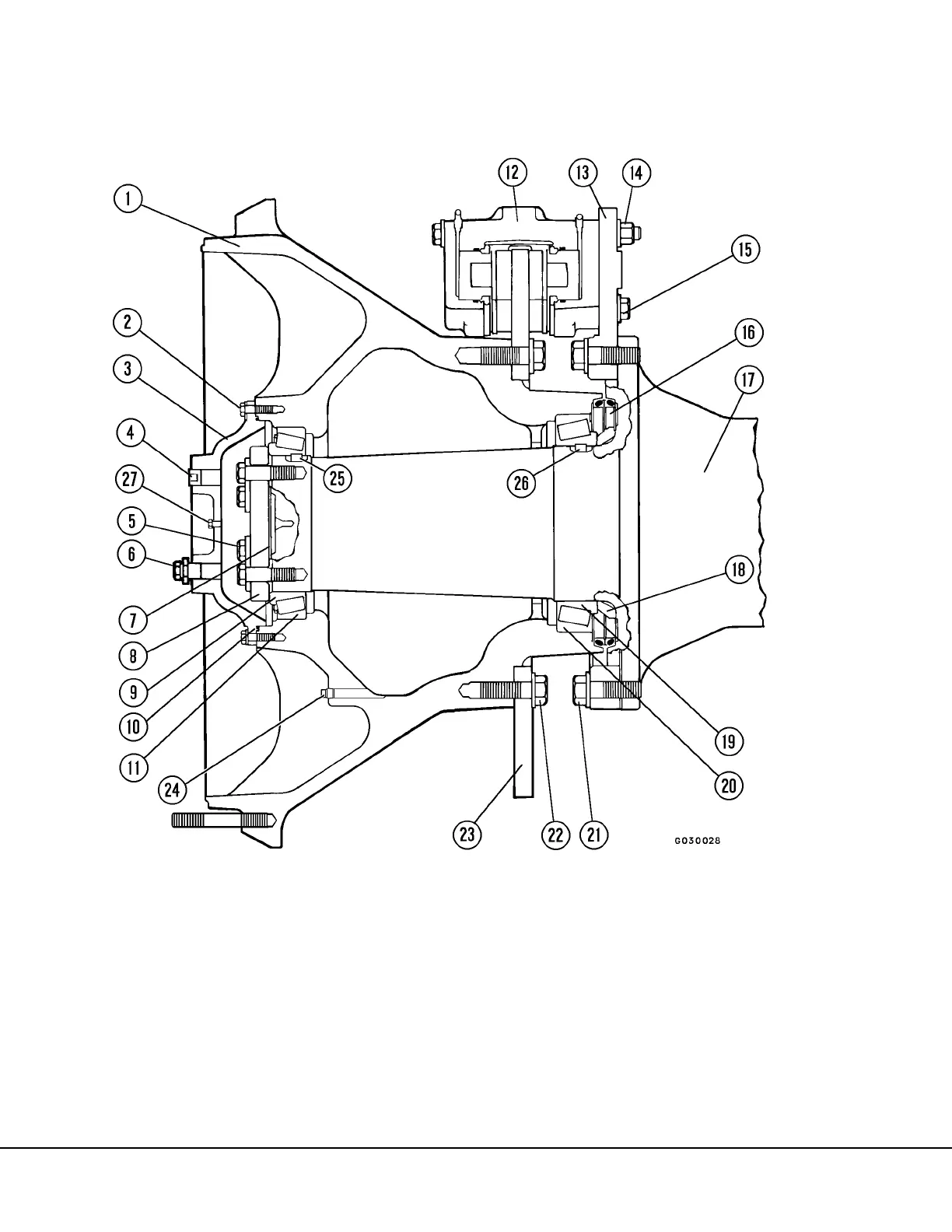

FIGURE 3-5. SPINDLE AND WHEEL HUB ASSEMBLY
1. Hub
2. Capscrews & Lockwashers
3. Cover
4. Oil Fill Plug
5. Capscrews & Flatwashers
6. Oil Level Sight Gauge
7. Shims
8. Bearing Retainer
9. Cone
10. O-Ring
11. Cup
12. Disc Brake
13. Brake Support
14. Capscrew, Flatwasher, & Nut
15. Capscrew & Flatwasher
16. Seal Assembly
17. Spindle
18. Spacer
19. Cone
20. Cup
21. Capscrew & Flatwasher
22. Capscrew & Flatwasher
23. Brake Disc
24. Oil Drain Plug
25. Bearing Pin, Outboard
26. Bearing Pin, Inboard
27. Relief Valve
