N5-6 Operator Controls N05056
AIR CLEANER VACUUM GAUGES

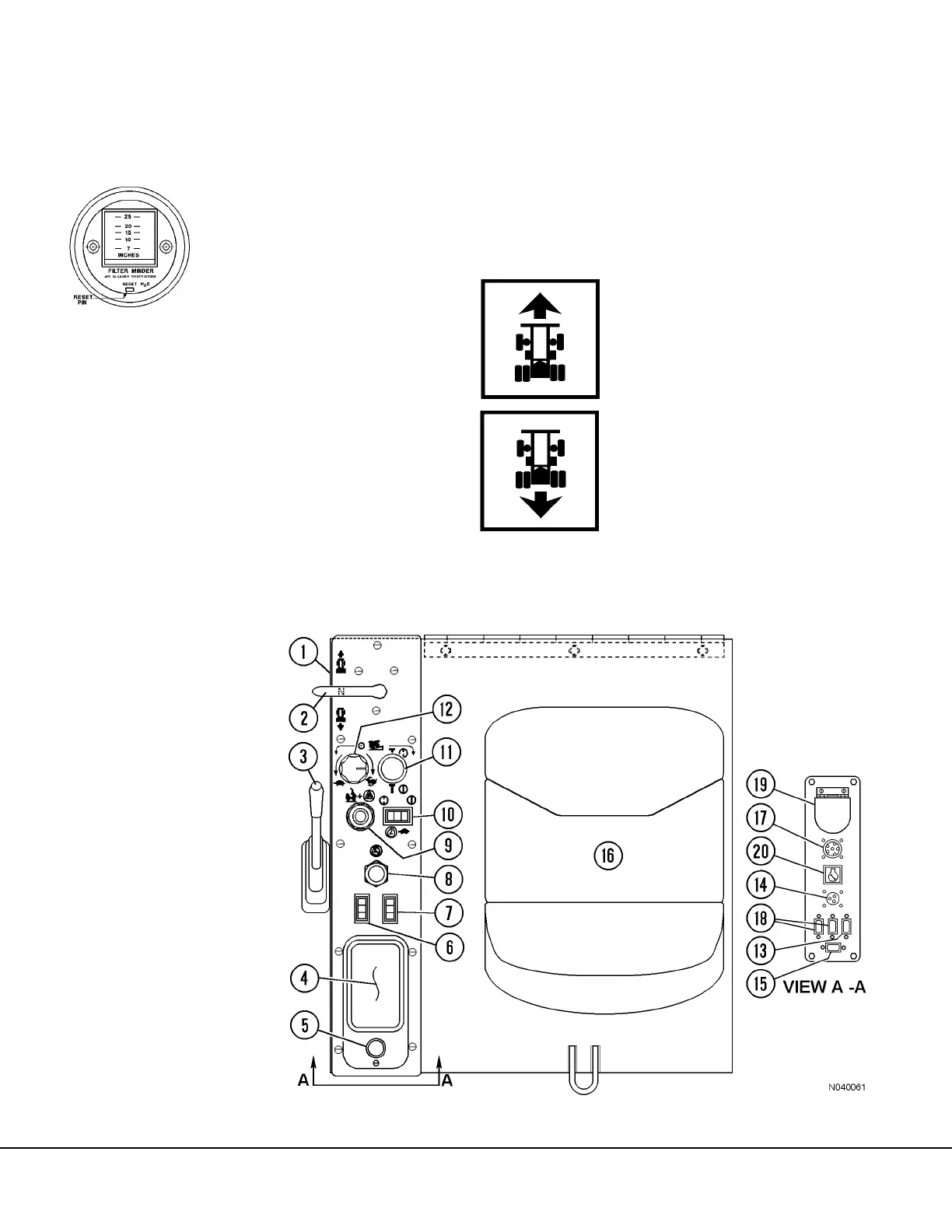

The air cleaner vacuum gauges (14, Figure 5-1) pro-
vide a continuous reading of maximum air cleaner re-
striction reached during operation.
The air cleaner(s) should
be serviced when the
gauge(s) shows the follow-
ing maximum recom-
mended restriction:
Komatsu
SDA16V160 or
SSDA16V160 Engine:
25 inches of H
2
O vacuum.
NOTE: After service, push the reset button on face of
gauge to allow the gauge to return to zero.
CENTER CONSOLE CONTROLS
Refer to Figure 5-5 for the following controls.
F-N-R SELECTOR SWITCH
The selector switch (2, Figure 5-5) is mounted on a
console to the right of the operator's seat. The Selec-
tor Switch controls the FORWARD-NEUTRAL-
REVERSE motion of the truck. When the Selector
Switch handle is positioned to the center, it is in the
"N" position and is in "NEUTRAL". The handle must
be in neutral to start the engine.
The truck should be stopped before the selector han-
dle is moved to a drive position.
1. Center Console
2. F-N-R Selector Switch
3. Hoist Control Lever
4. Ash Tray
5. Cigar Lighter
6. L.H. Window Switch
7. R.H. Window Switch
8. Engine Shutdown Switch
9. Override Switch
10. (Not Used)
11. RSC Switch
12. RSC Dial
13. Statex III Diagnositics Port
14. Engine Diagnostic Port
(CENSE)
15. Modular Mining Port (Optional)
16. Passenger Seat
17. Engine Diagnostic Port
(QUANTUM)
18. Not Used
19. Data Store Button
20. Service Engine Light (Blue)
FIGURE 5-5. CONSOLE CONTROLS
The operator can select FOR-
WARD drive by moving the
handle forward.
REVERSE drive is selected by
moving the handle to the rear.
