KTM 250 XC-W TPI User Manual

14 WHEELS, TIRES
110

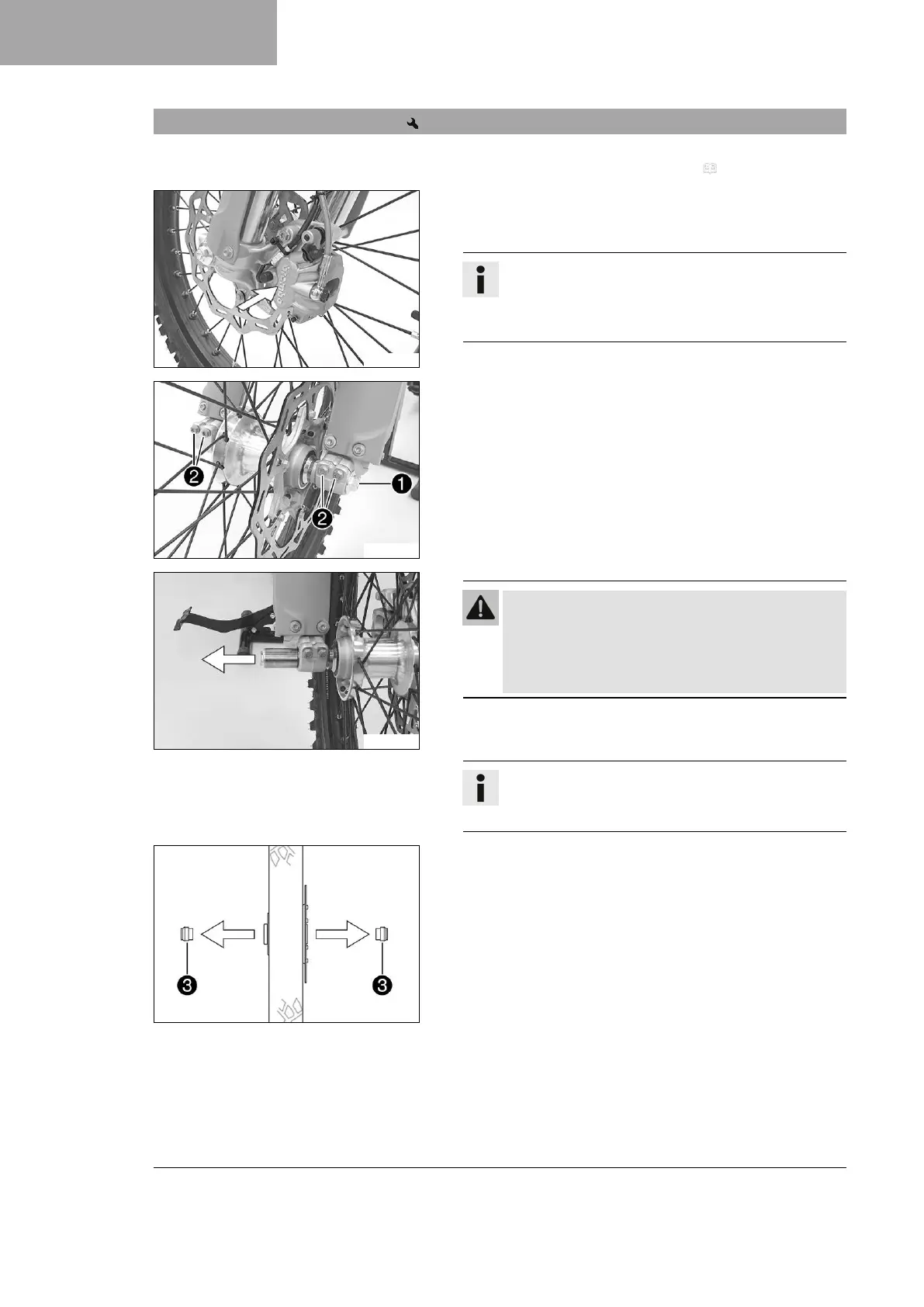

14.1 Removing the front wheel
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 65)
V00363-10
Main work
– Manually press the brake caliper toward the brake disc to push
back the brake pistons.
Info
Make sure that you do not press the brake caliper
against the spokes when pushing back the brake
pistons.
V00364-10
–
Loosen screw
1
by several rotations.
–
Loosen screws
2
.
–
Press on screw
1
to push the wheel spindle out of the axle
clamp.
–
Remove screw
1
.
V00365-10
Warning
Danger of accidents Damaged brake discs reduce the
braking effect.
– Always lay the wheel down in such a way that the
brake disc is not damaged.
– Hold the front wheel and remove the wheel spindle. Take the
front wheel out of the fork.
Info
Do not actuate the hand brake lever when the front
wheel is removed.
H00934-10
(All Standard and Six Days models)
–
Remove spacers
3
.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
