SERVICE WORK ON THE ENGINE 18
147

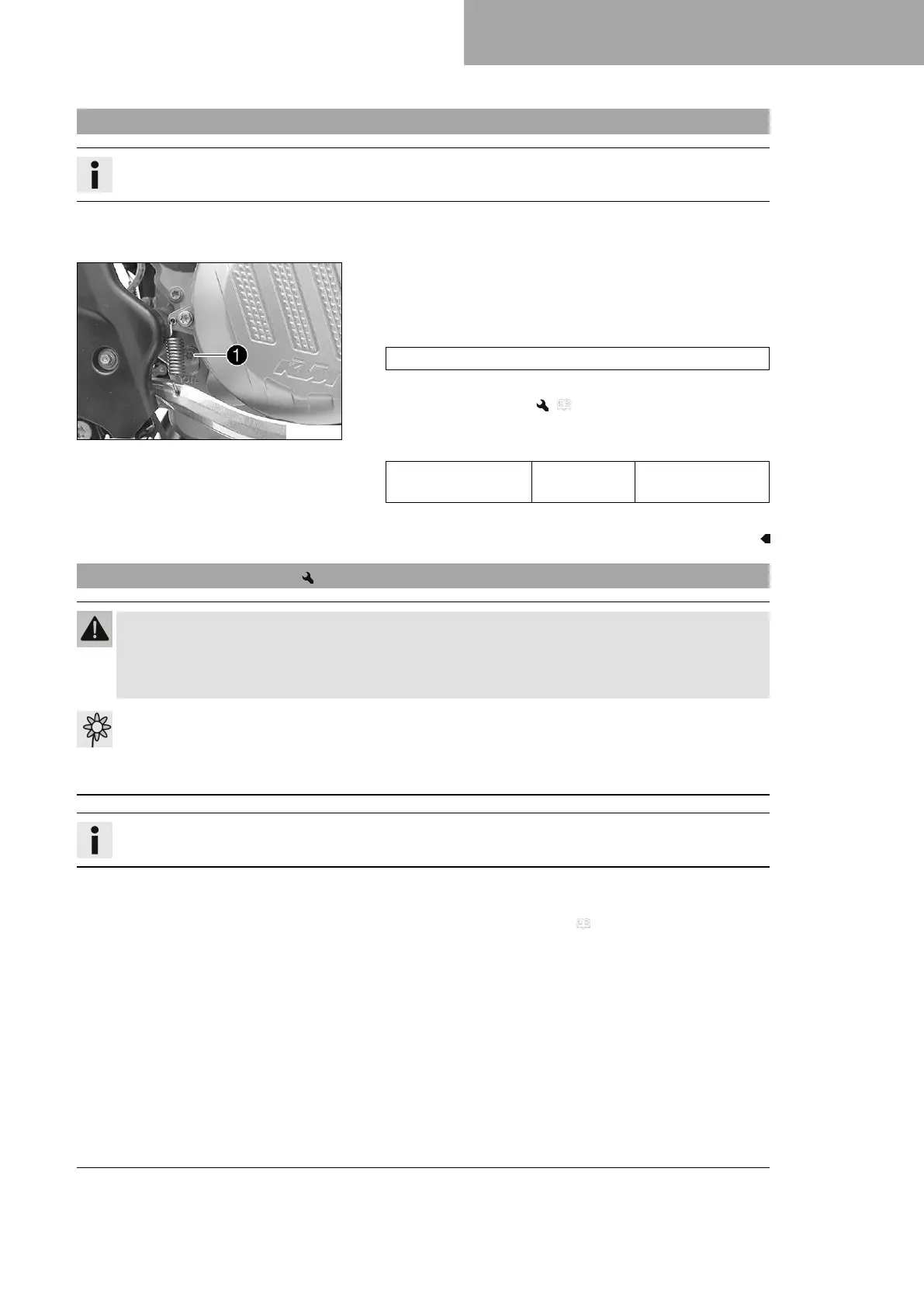

18.5 Checking the gear oil level
Info
The gear oil level must be checked when the engine is cold.
Preparatory work
– Stand the motorcycle upright on a horizontal surface.
E00912-10
Main work
– Detach the foot brake lever spring.
–
Remove gear oil level monitoring screw
1
.
– Check the gear oil level.
A small quantity of gear oil must run out of the drilled hole.
» If no gear oil runs out:
– Add the gear oil. ( p. 148)
– Mount and tighten the gear oil level monitoring screw.
Guideline
Screw, gear oil level
monitoring
M6 10 Nm (7.4 lbf ft)
– Attach the foot brake lever spring.
18.6 Changing the gear oil
Warning
Danger of scalding Engine and gear oil get very hot when the motorcycle is ridden.
– Wear suitable protective clothing and safety gloves.
– In the event of scalding, rinse the area affected immediately with lukewarm water.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Drain the gear oil while the engine is at operating temperature.
Preparatory work
(All special models)
– Remove the engine guard. ( p. 97)
– Park the motorcycle on a level surface.
– Place an appropriate container under the engine.
