KTM 250 XC-W TPI User Manual

12 SERVICE WORK ON THE CHASSIS
80

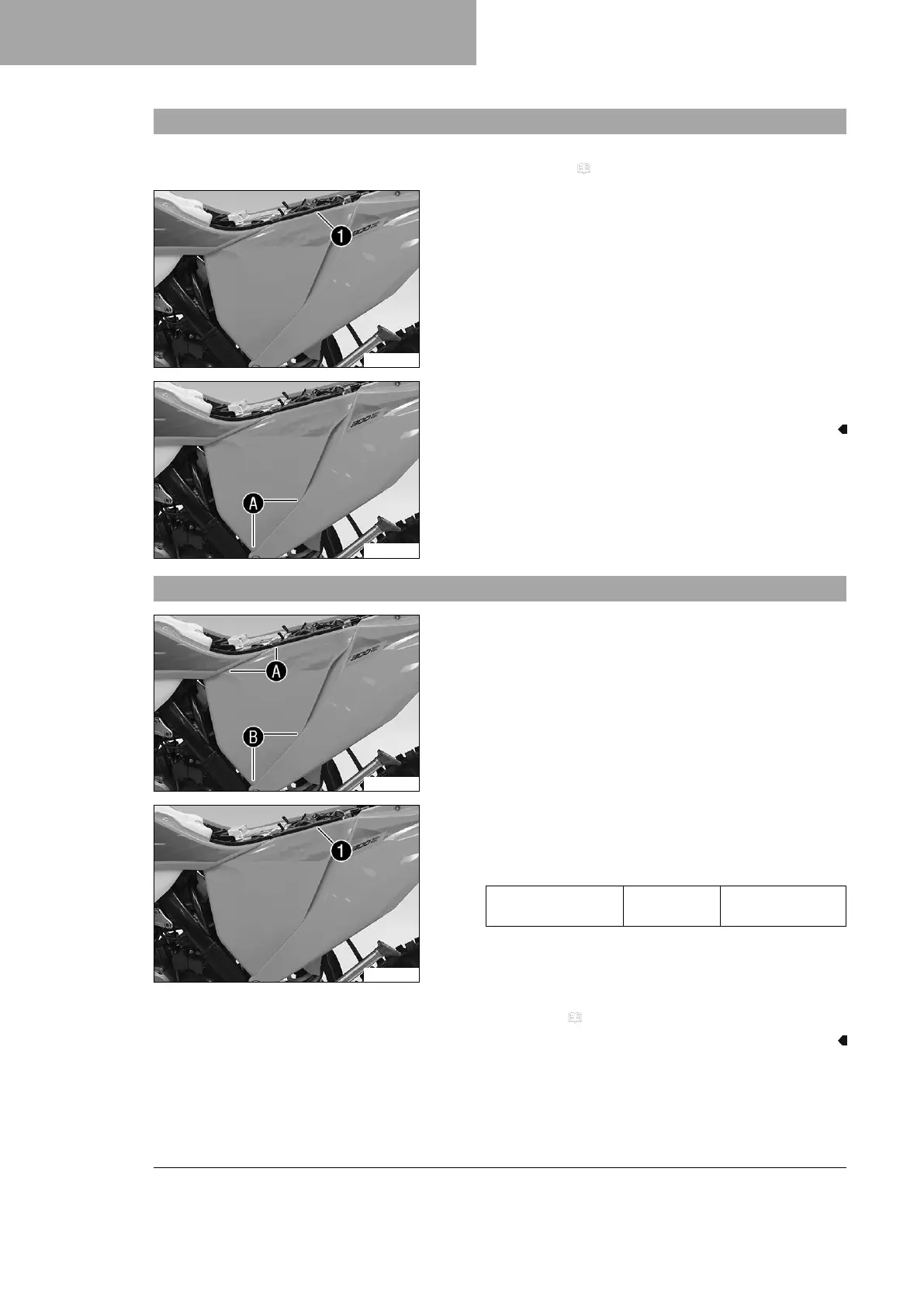

12.22 Removing the air filter box cover
Preparatory work
– Remove the seat. ( p. 79)
S03526-10
Condition
The air filter box cover is secured.
–
Remove screw
1
.
S03526-11
–
Pull off the air filter box cover in area
A
laterally and take it
off at the front.
12.23 Installing the air filter box cover
S03526-12
Main work
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
S03526-10
Condition
The air filter box cover is secured.
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)
Finishing work
– Mount the seat. ( p. 79)

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
