KTM 250 XC-W TPI User Manual

17 TUNING THE ENGINE
136
–
Tighten nut
4
.
–
Tighten nut
2
.
–
Slide on sleeve
1
.
– Check the throttle grip for smooth operation.
Finishing work
– Check the throttle cable play. ( p. 135)

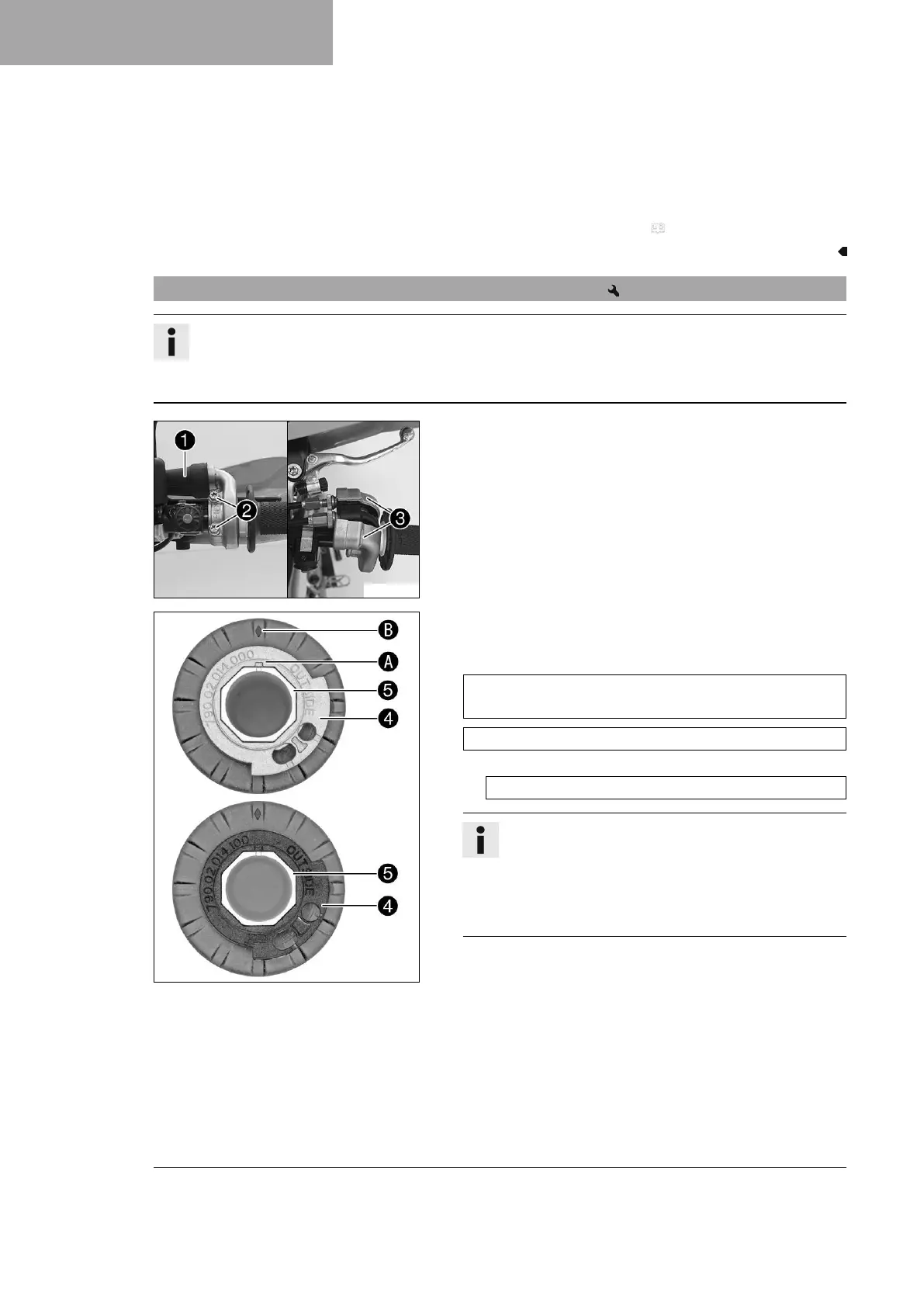

17.3 Setting the characteristic map of the throttle response
Info
On the throttle grip, the characteristic map of the throttle response is changed by changing the guide
plate.
A guide plate with a different characteristic map is supplied.
E01228-10
Main work
–
Push back sleeve
1
.
–
Remove screws
2
and half-shells
3
.
– Detach the throttle cables and take off the grip tube.
102246-10
–
Remove guide plate
4
from handle tube
5
.
– Position the required guide plate on the grip tube.
Guideline
The label OUTSIDE must be visible. Marking
A
must be
positioned at marking
B
.
Grey guide plate (79002014000)
Alternative 1
Black guide plate (79002014100)
Info
The gray guide plate opens the throttle valve more
slowly.
The black guide plate opens the throttle valve more
quickly.
The gray guide plate is mounted upon delivery.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
