KTM 250 XC-W TPI User Manual

TUNING THE CHASSIS 11
59

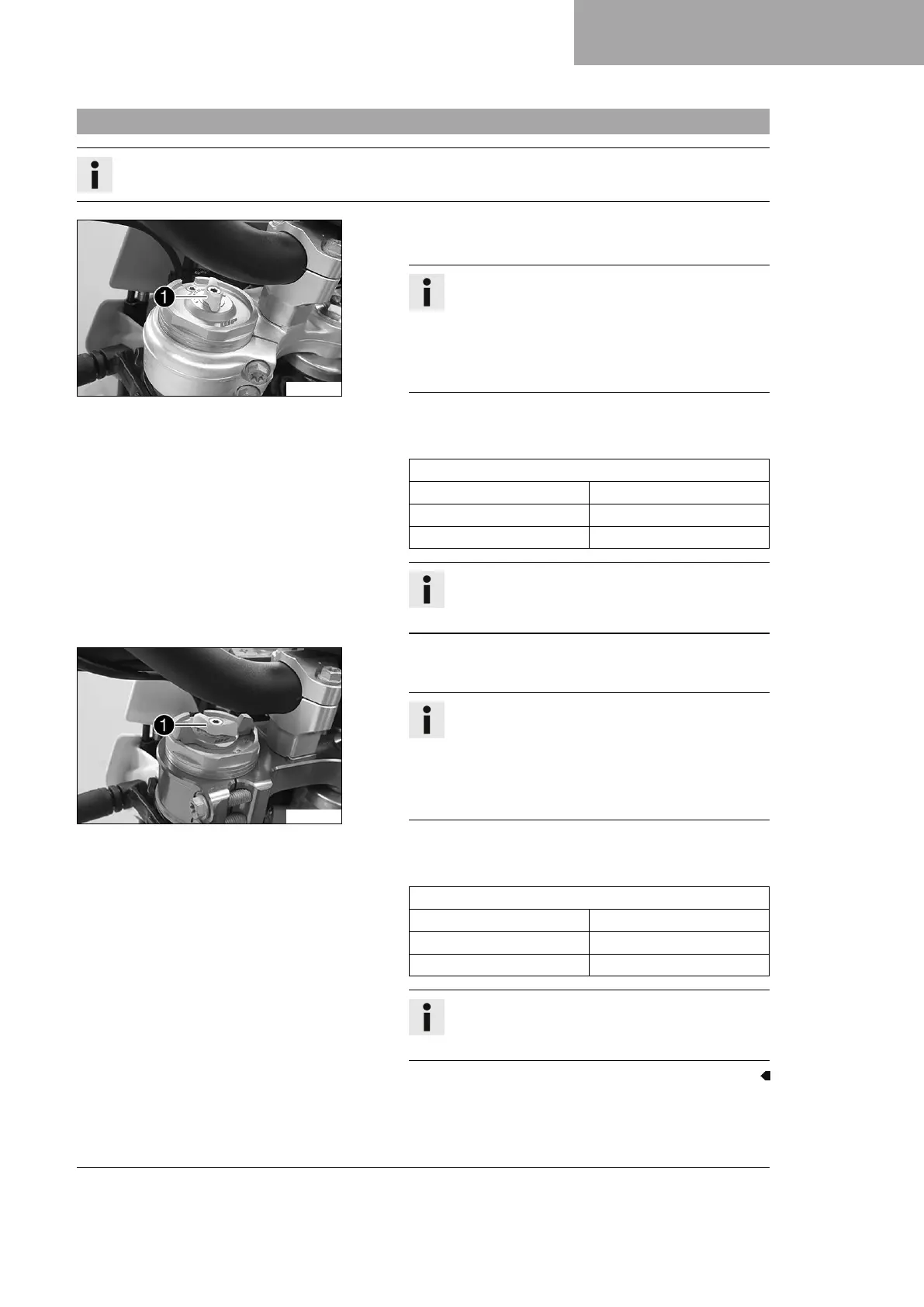

11.12 Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
S03470-10
(All standard EXC/XC-W models, 300 EXC Erzberg Edition TPI EU)
–
Turn white adjuster
1
clockwise as far as it will go.
Info
Adjuster
1
is located at the upper end of the left
fork leg.
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
S03471-10
(All Six Days models)
–
Turn white adjuster
1
clockwise as far as it will go.
Info
Adjuster
1
is located at the upper end of the left
fork leg.
The compression damping is located in left fork
leg COMP (white adjuster). The rebound damping is
located in right fork leg REB (red adjuster).
– Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Compression damping
Comfort 18 clicks
Standard 15 clicks
Sport 12 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
