6 CONTROLS
18

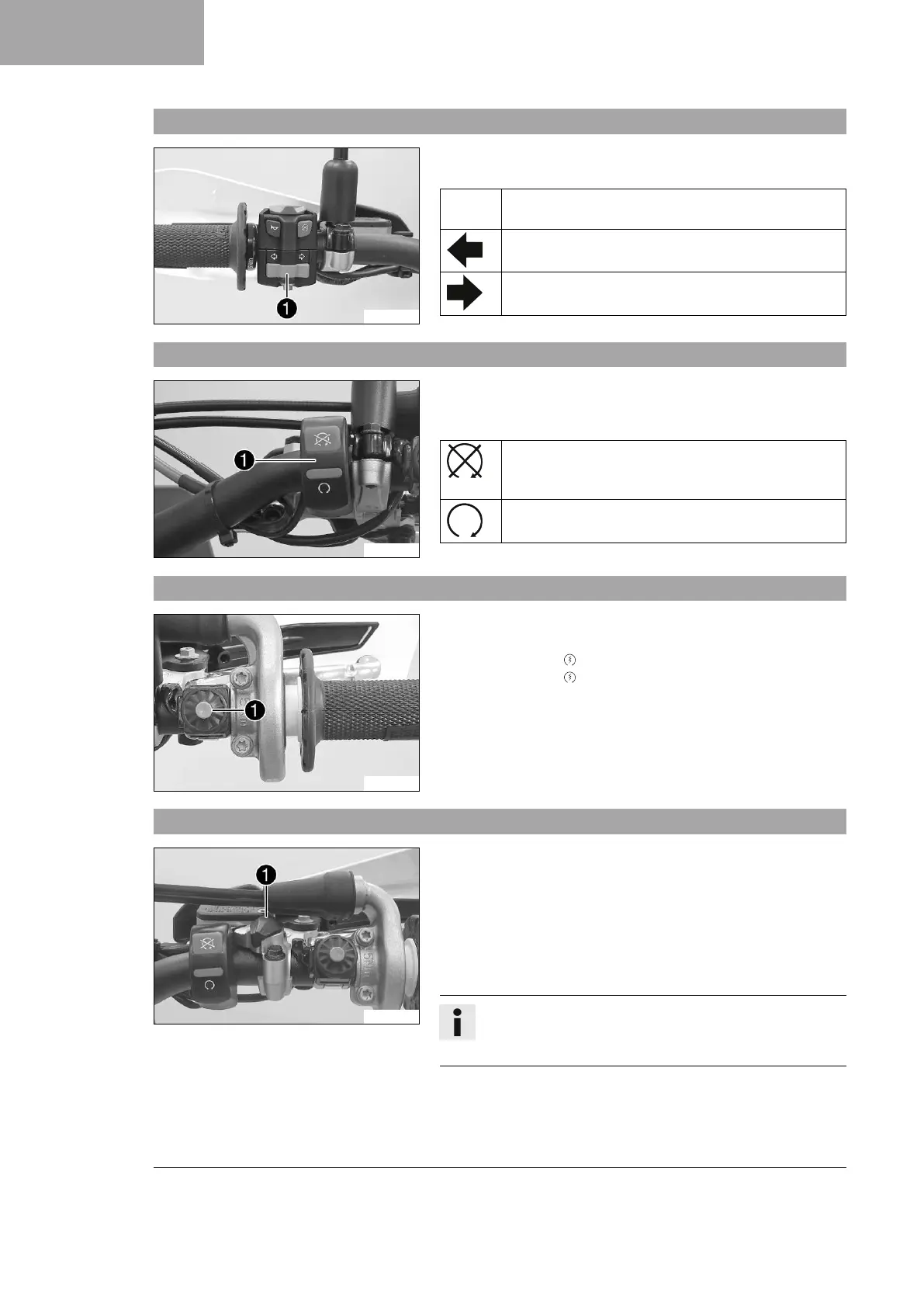

6.9 Turn signal switch (All EXC models)
E00820-12
Turn signal switch
1
is fitted on the left side of the handlebar.
Possible states
Turn signal off – The turn signal switch is in the cen-
tral position.
Left turn signal, on – The turn signal switch is turned
to the left.
Right turn signal, on – The turn signal switch is
turned to the right.
6.10 Emergency OFF switch (All EXC models)
E00322-10
The emergency OFF switch
1
is fitted on the right side of the
handlebar.
Possible states
Ignition off – In this position, the ignition circuit
is interrupted, a running engine stops, and a
non-running engine will not start.
Ignition on – In this position, the ignition circuit is
closed, and the engine can be started.
6.11 Start button
E00824-10
Start button
1
is fitted on the right side of the handlebar.
Possible states
• The start button is in the basic position
• The start button is pressed – In this position, the starter
motor is actuated.
6.12 Map switch (All special models)
E00859-10
The map switch
1
is fitted on the right side of the handlebar.
Possible states
• Map switch in position I – The ignition timing map Perfor-
mance is active in this position.
• Map switch in position II – The ignition timing map Soft is
active in this position.
The engine characteristic can be altered with the map switch.
Info
The map switch has no function in the homologated
(restricted) condition of the motorcycle.
