12 SERVICE WORK ON THE CHASSIS
68

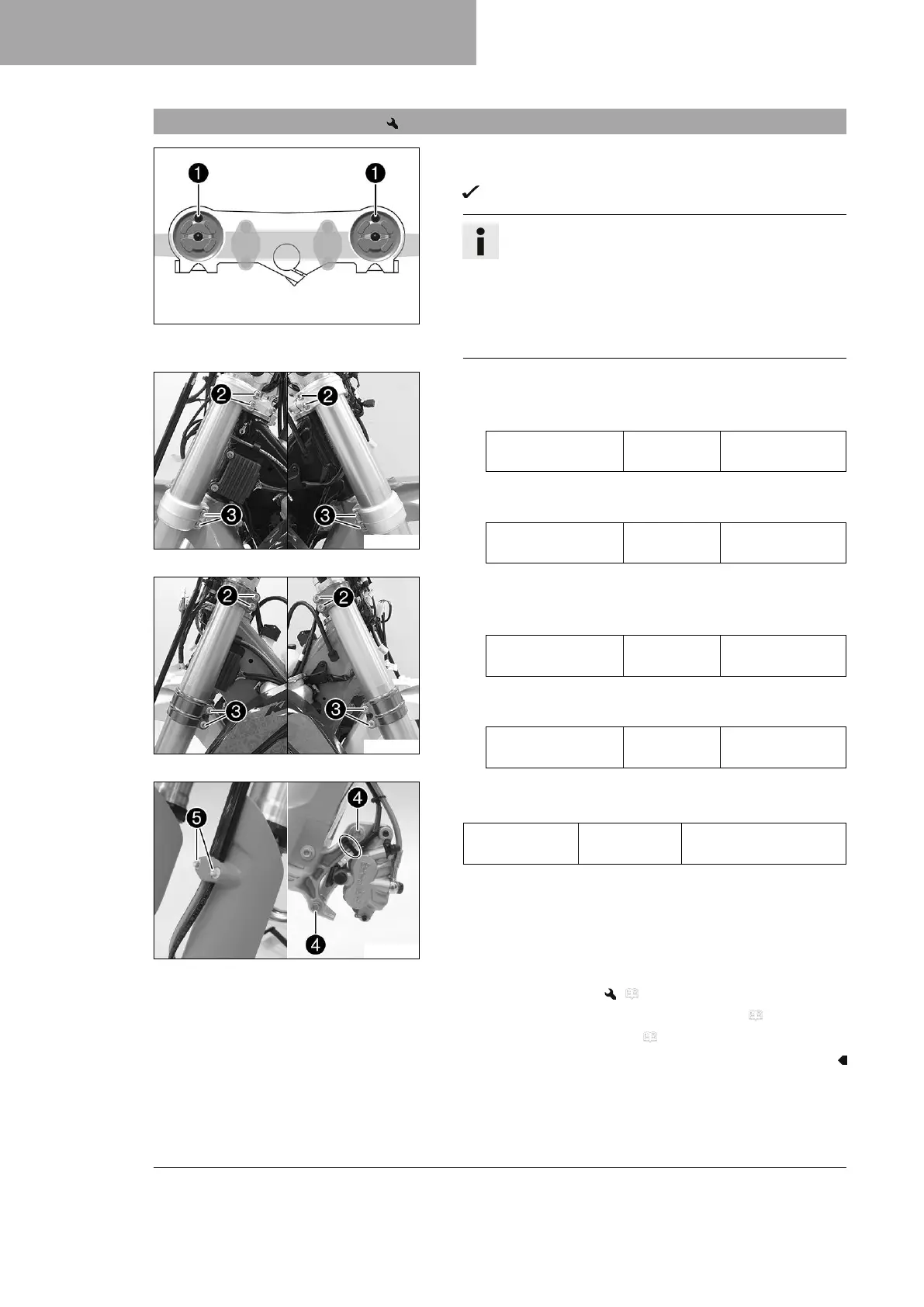

12.8 Installing the fork legs
S03463-10
Main work
– Position the fork legs.
Bleeder screws
1
are positioned toward the front.
Info
The rebound damping is located in right fork leg REB
(red adjuster). The compression damping is located in
left fork leg COMP (white adjuster).
Grooves are milled into the side of the upper end of the
fork legs. The second milled groove (from the top) must
be flush with the upper edge of the upper triple clamp.
S03475-11
(All standard EXC/XC-W models)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 20 Nm
(14.8 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
S03476-11
(All special models)
–
Tighten screws
2
.
Guideline
Screw, top triple
clamp
M8 17 Nm
(12.5 lbf ft)
–
Tighten screws
3
.
Guideline
Screw, bottom
triple clamp
M8 15 Nm
(11.1 lbf ft)
E00375-11
–
Position the brake caliper, and mount and tighten screws
4
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Mount the cable ties.
– Position the brake line, the wiring harness, and the clamp.
Mount and tighten screws
5
.
Finishing work
– Install the front wheel. ( p. 111)
– Install the headlight mask with the headlight. ( p. 125)
– Check the headlight setting. ( p. 127)

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
