15 ELECTRICAL SYSTEM
126
E00899-11
– Position the headlight mask and secure it with rubber
straps
2
.
The holding lugs engage in the fender.
– Position the brake line and wiring harness in the brake line
guide.
Finishing work
– Check the headlight setting. ( p. 127)

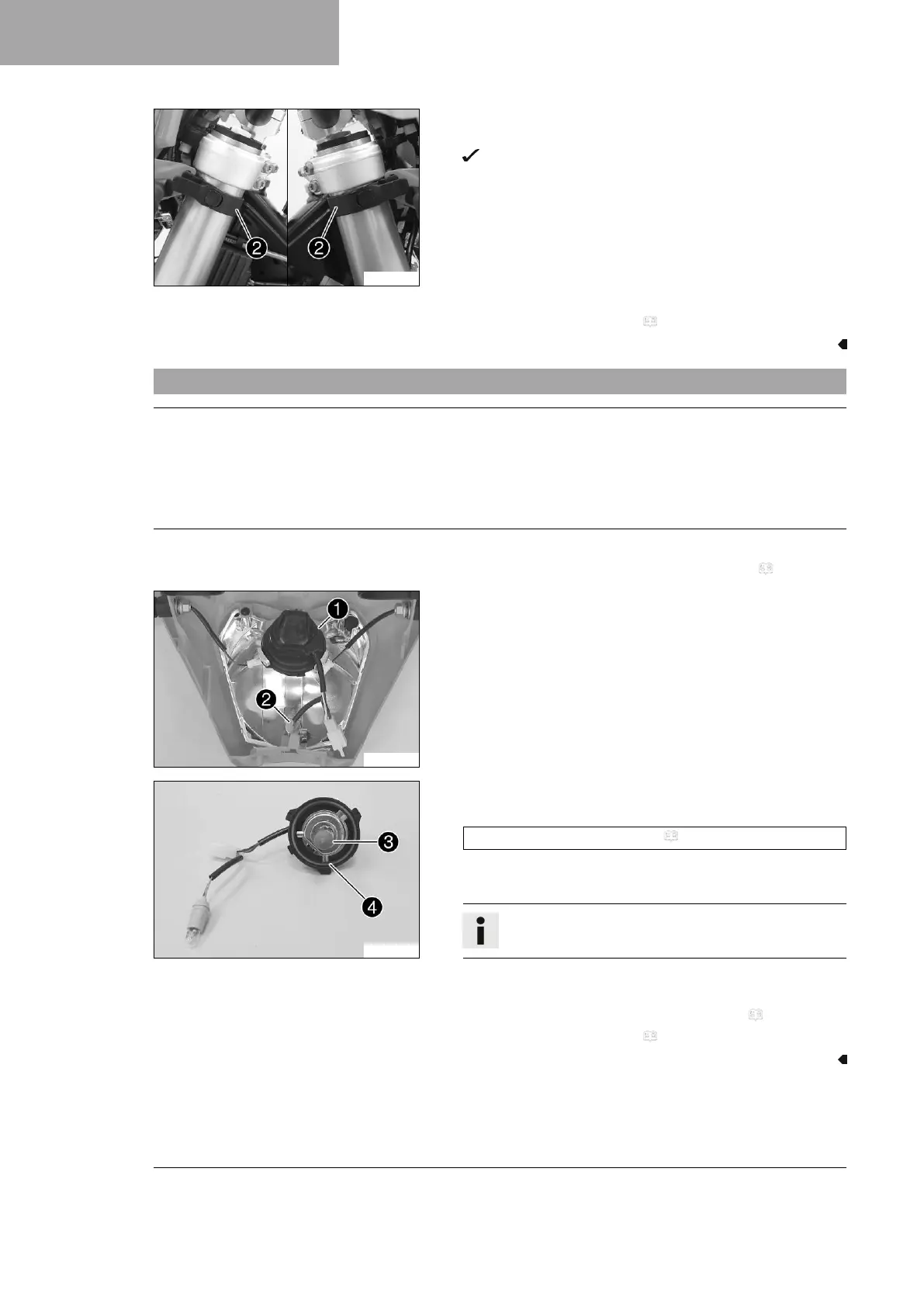

15.8 Changing the headlight bulb
Note
Damage to reflector Grease on the reflector reduces the light intensity.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
Preparatory work
– Remove the headlight mask with the headlight. ( p. 125)
E00358-10
Main work
–
Turn protection cap
1
together with the underlying bulb
socket counterclockwise all the way and remove it.
–
Pull bulb socket
2
of the position light out of the reflector.
E00359-10
–
Pull out headlight bulb
3
.
– Insert the new headlight bulb.
Headlight (HS1/socket BX43t) ( p. 161)
– Insert the protection cap with the bulb socket into the reflector
and turn it clockwise all the way.
Info
Ensure that O-ring
4
is seated properly.
– Insert the bulb socket of the position light into the reflector.
Finishing work
– Install the headlight mask with the headlight. ( p. 125)
– Check the headlight setting. ( p. 127)
