CONTROLS 6
17

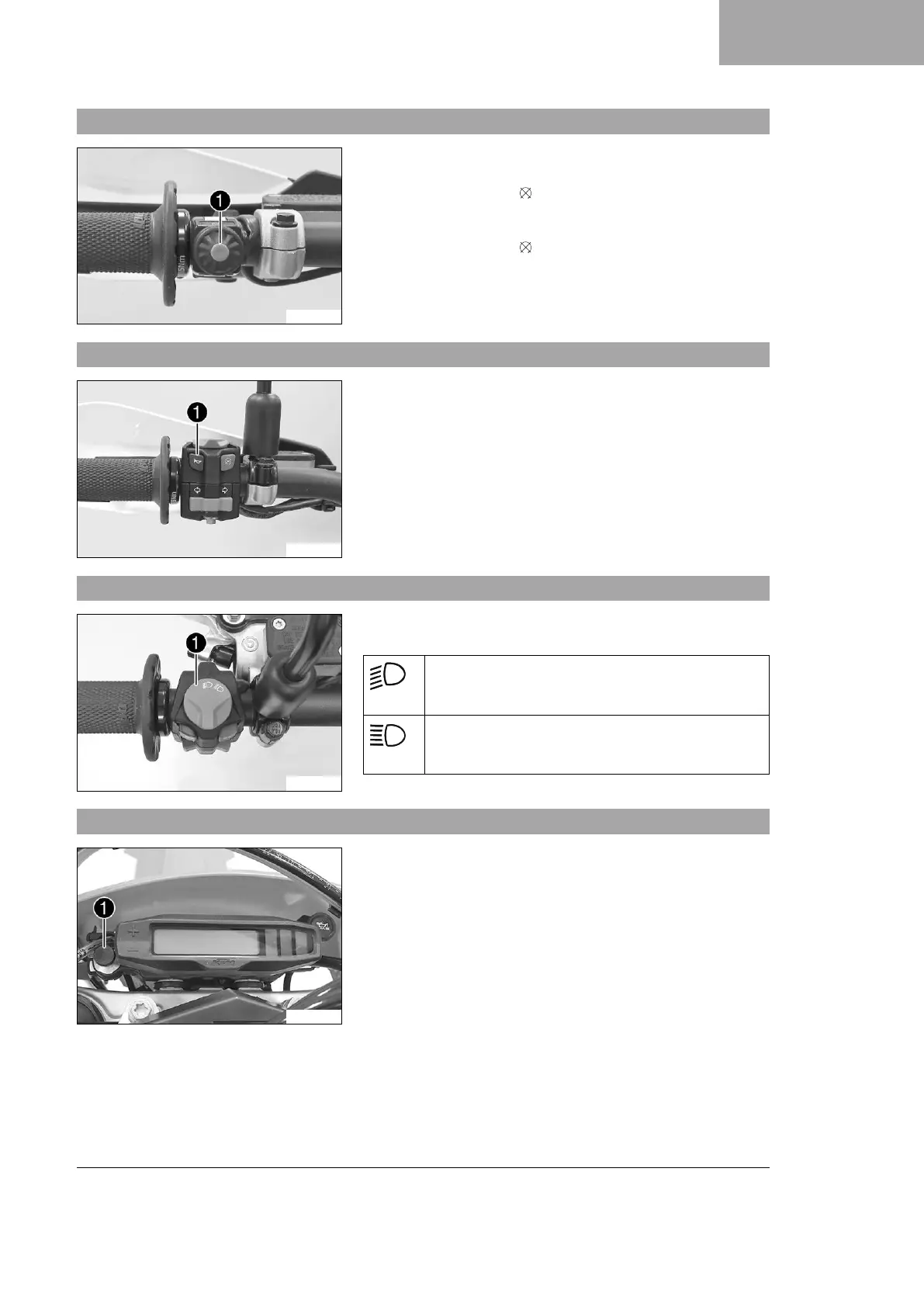

6.5 Switch-off button (All XC‑W models)
E00821-10
Switch-off button
1
is fitted on the left side of the handlebar.
Possible states
• The switch-off button is in the basic position – In this
position, the ignition circuit is closed and the engine can be
started.
• The switch-off button is pressed – In this position, the igni-
tion circuit is interrupted, a running engine stops, and a non-
running engine will not start.
6.6 Horn button (All EXC models)
E00820-11
Horn button
1
is fitted on the left side of the handlebar.
Possible states
• The horn button is in the basic position
• The horn button is pressed – The horn is operated in this
position.
6.7 Light switch (All EXC models)
E00822-10
Light switch
1
is fitted on the left side of the handlebar.
Possible states
Low beam on – Light switch is in the central posi-
tion. In this position, the low beam and tail light are
switched on.
High beam on – Light switch is turned to the left.
In this position, the high beam and the tail light are
switched on.
6.8 Light switch (All XC‑W models)
E00858-10
The light switch
1
is located to the left of the combination
instrument.
Possible states
• Light off – Light switch is pressed in up to the stop. In this
position, the light is switched off.
• Light on – Light switch is pulled out to the stop. In this posi-
tion, the low beam and tail light are switched on.
