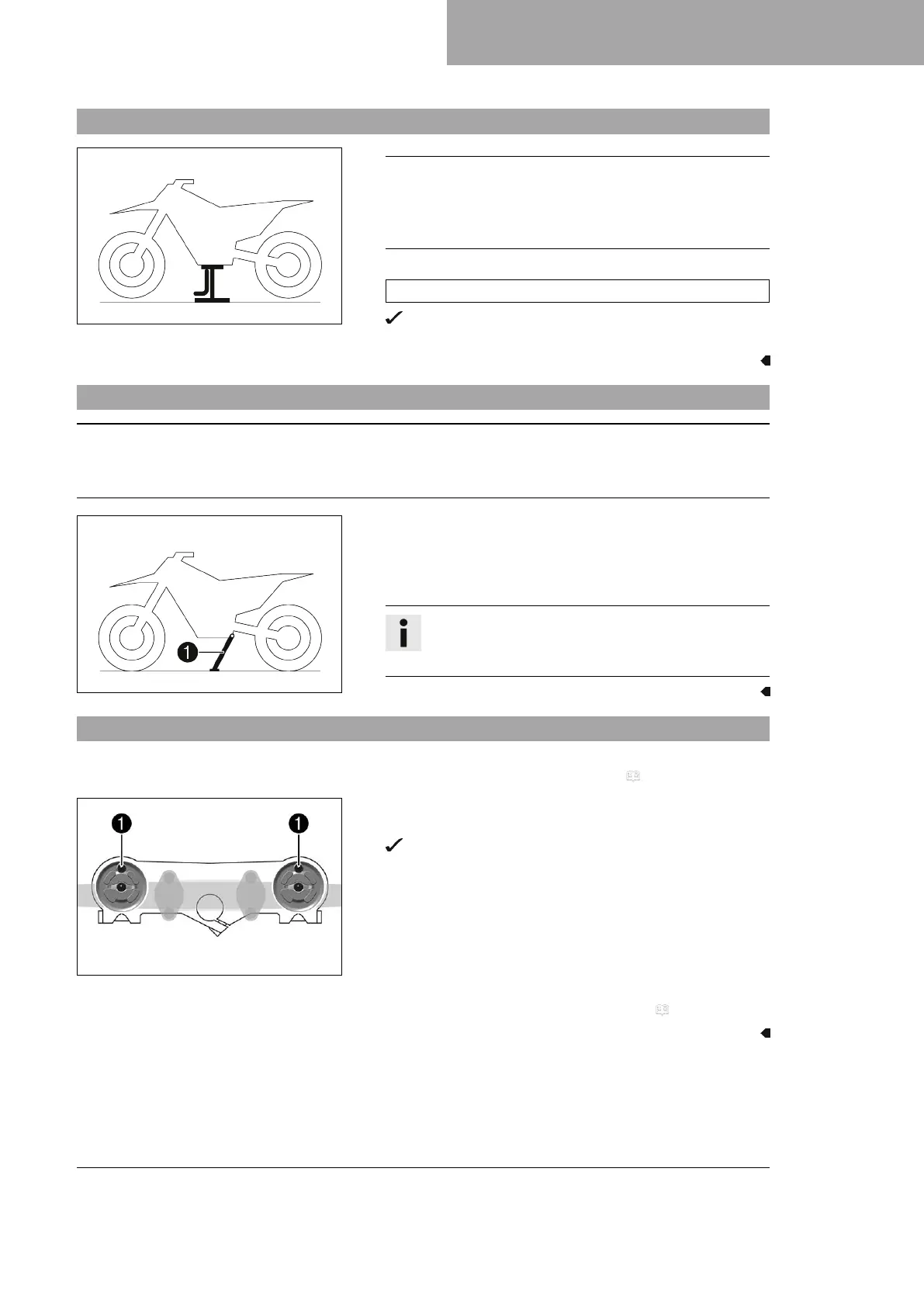

KTM 250 XC-W TPI User Manual

SERVICE WORK ON THE CHASSIS 12
65
12.1 Raising the motorcycle with a lift stand
401942-01
Note
Danger of damage The parked vehicle can roll away or fall
over.
– Park the vehicle on a firm and level surface.
– Raise the motorcycle at the frame underneath the engine.
Lift stand (78129955100)
Neither wheel is in contact with the ground.
– Secure the motorcycle against falling over.
12.2 Removing the motorcycle from the lift stand
Note
Danger of damage The parked vehicle can roll away or fall over.
– Park the vehicle on a firm and level surface.
401943-10
– Remove the motorcycle from the lift stand.
– Remove the lift stand.
–
To park the motorcycle, press side stand
1
to the ground
with your foot and lean the motorcycle on it.
Info
When you are riding, the side stand must be folded up
and secured with the rubber strap.
12.3 Bleeding the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 65)
S03463-10
Main work
–
Release bleeder screws
1
.
Any excess pressure escapes from the interior of the fork.
– Tighten the bleeder screws.
Finishing work
– Remove the motorcycle from the lift stand. ( p. 65)

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
