ELECTRICAL SYSTEM 15

119

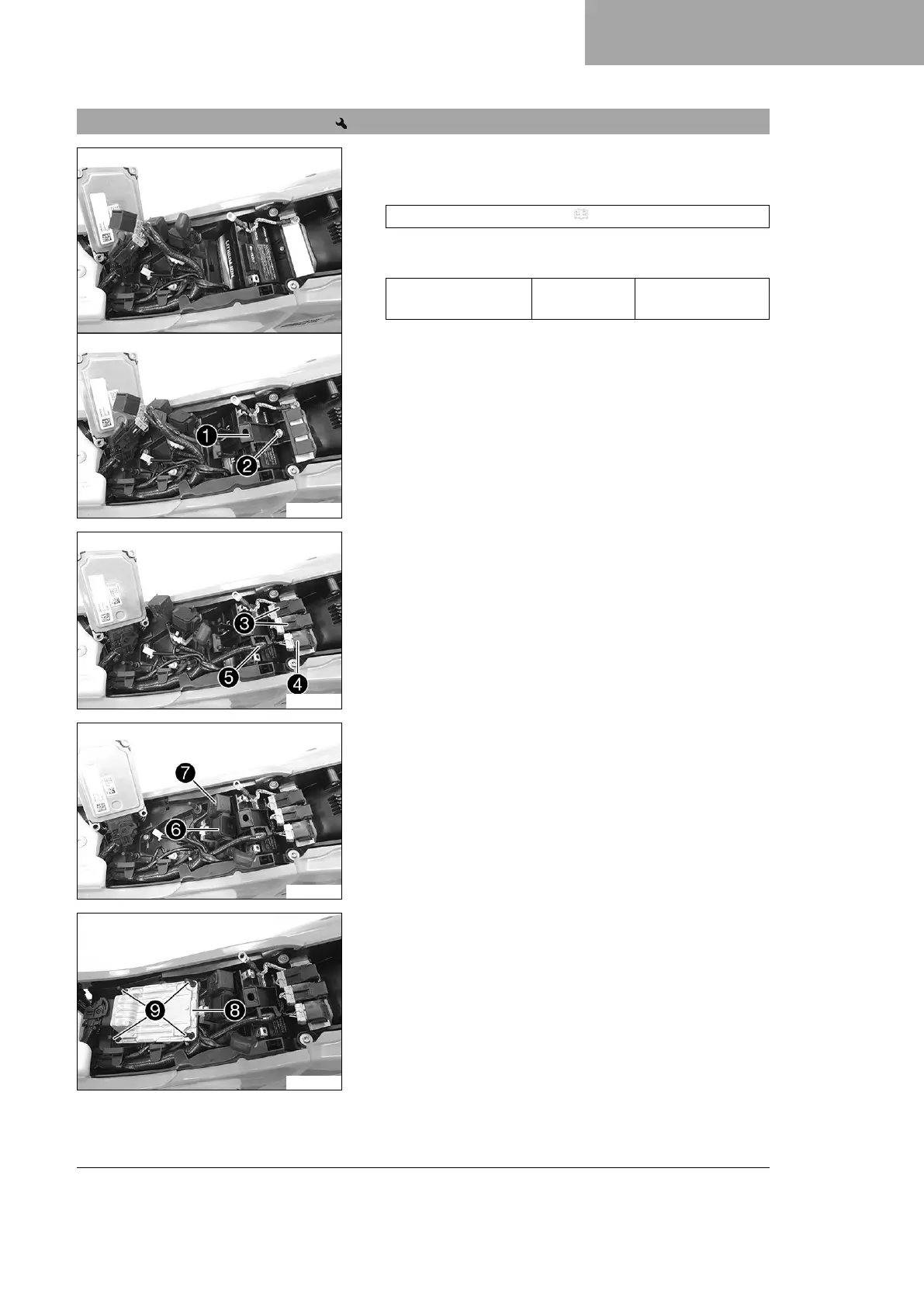

15.2 Installing the 12-V battery

S03494-10

Main work

– Insert the 12 V battery into the battery compartment with the

terminals facing forward and secure with holding bracket

12-V battery (HJTZ5S-FP-C) ( p. 161)

–

Mount and tighten screw

Guideline

Remaining screws,

chassis

M6 10 Nm (7.4 lbf ft)

S03492-11

–

Place relays

and connector

on the battery compart-

ment and attach the wiring harness

S03491-11

–

Attach starter relay

and fuse box

to the battery com-

partment.

S03490-11

–

Secure EFI control unit

with the rubber lugs
