KTM 250 XC-W TPI User Manual

11 TUNING THE CHASSIS
62

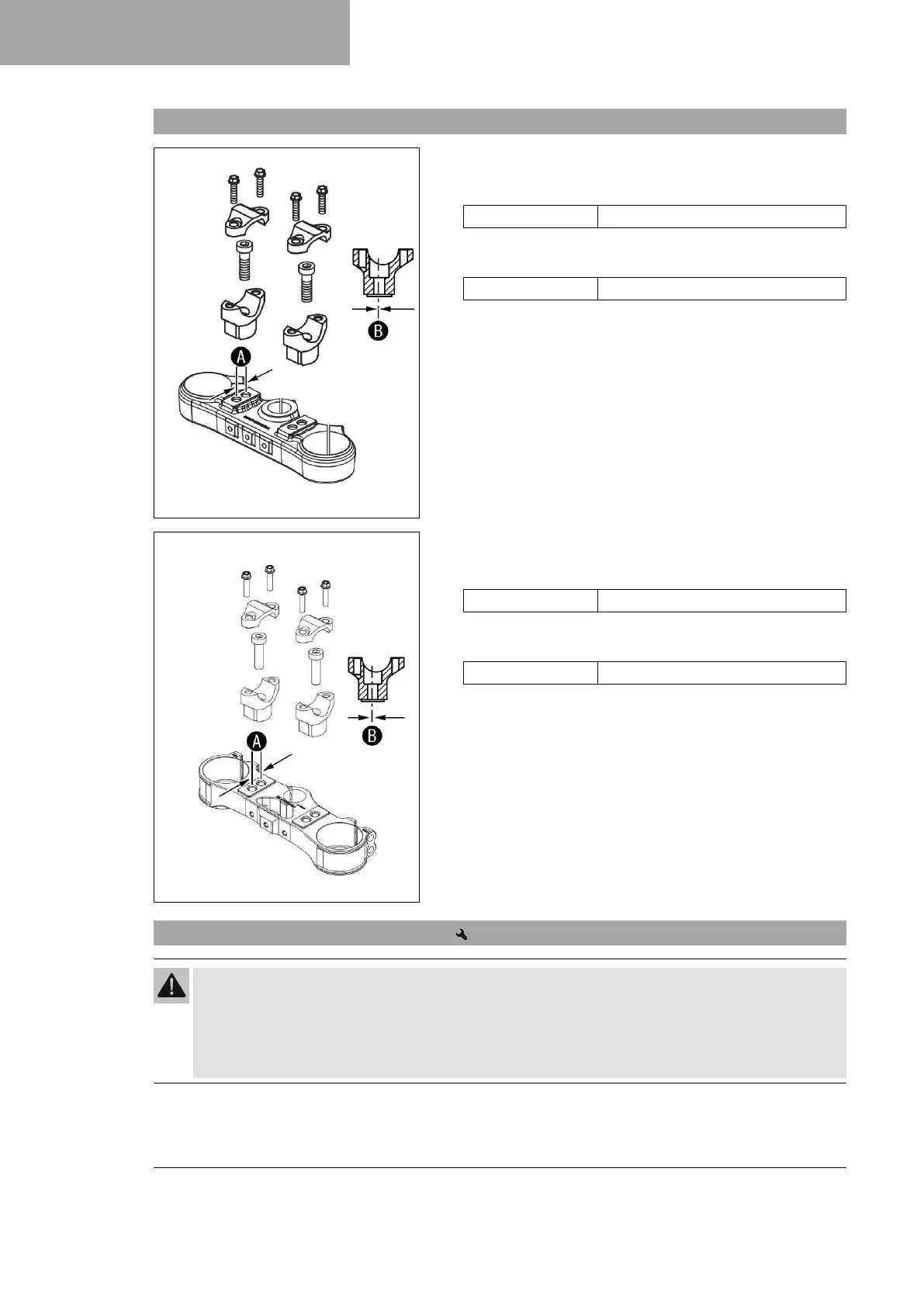

11.15 Handlebar position
M00993-10
(All standard EXC/XC-W models)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
M00987-10
(All special models)
On the upper triple clamp, there are 2 holes at a distance
of
A
to each other.
Hole distance A 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance
of
B
from the center.
Hole distance B 3.5 mm (0.138 in)
The handlebar can be mounted in four different positions. This
allows the handlebar to be mounted in the most comfortable
position for the rider.
11.16 Adjusting the handlebar position
Warning
Danger of accidents A repaired handlebar poses a safety risk.
If the handlebar is bent or straightened, the material becomes fatigued. The handlebar may break as a
result.
– Change the handlebar if the handlebar is damaged or bent.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
