KTM 250 XC-W TPI User Manual

ELECTRICAL SYSTEM 15
125

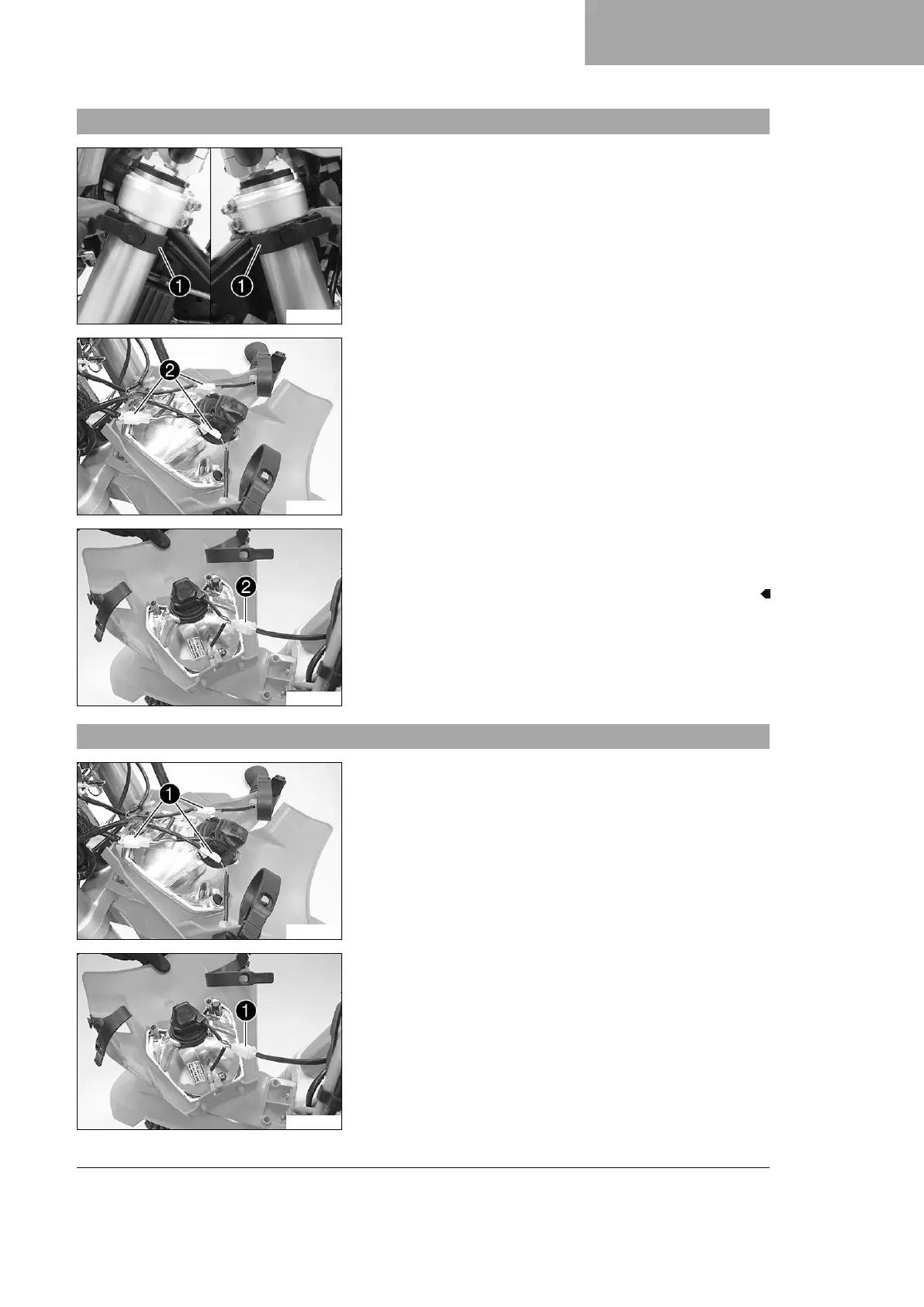

15.6 Removing the headlight mask with the headlight
E00899-10
– Detach the brake line and wiring harness from the headlight
mask.
–
Loosen rubber strap
1
. Slide the headlight mask up and
swing it forward.
E00900-10
(All EXC models)
–
Detach plug-in connectors
2
and take off the headlight
mask with the headlight.
E00357-10
(All XC‑W models)
–
Disconnect plug-in connector
2
and take off the head-
light mask together with the headlight.
15.7 Installing the headlight mask with the headlight
E00900-11
Main work
(All EXC models)
–
Join plug-in connectors
1
.
E00357-11
(All XC‑W models)
–
Join plug-in connector
1
.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
