KTM 250 XC-W TPI User Manual

SERVICE WORK ON THE CHASSIS 12
79

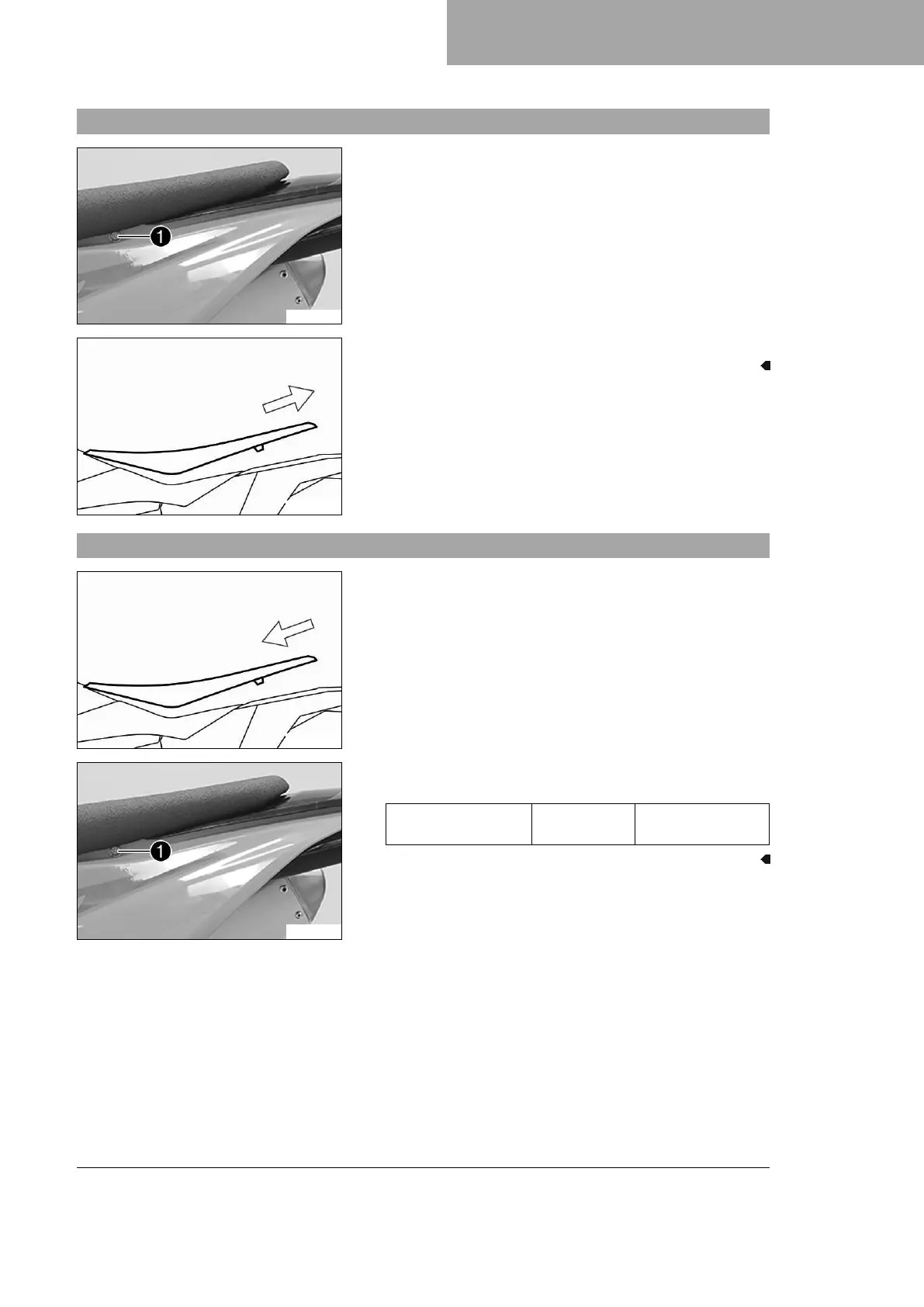

12.20 Removing the seat
S03480-10
–
Remove screw
1
on the left side.
H02218-10
– Raise the rear of the seat, pull the seat back, and lift it off.
12.21 Mounting the seat
H02218-11
– Mount the front of the seat on the two collar bushings of the
fuel tank, lower the seat at the rear, and push the seat forward.
– Make sure the seat is locked in correctly.
S03480-10
–
Mount and tighten screw
1
on the left side.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
