KTM 250 XC-W TPI User Manual

SERVICE WORK ON THE CHASSIS 12
67

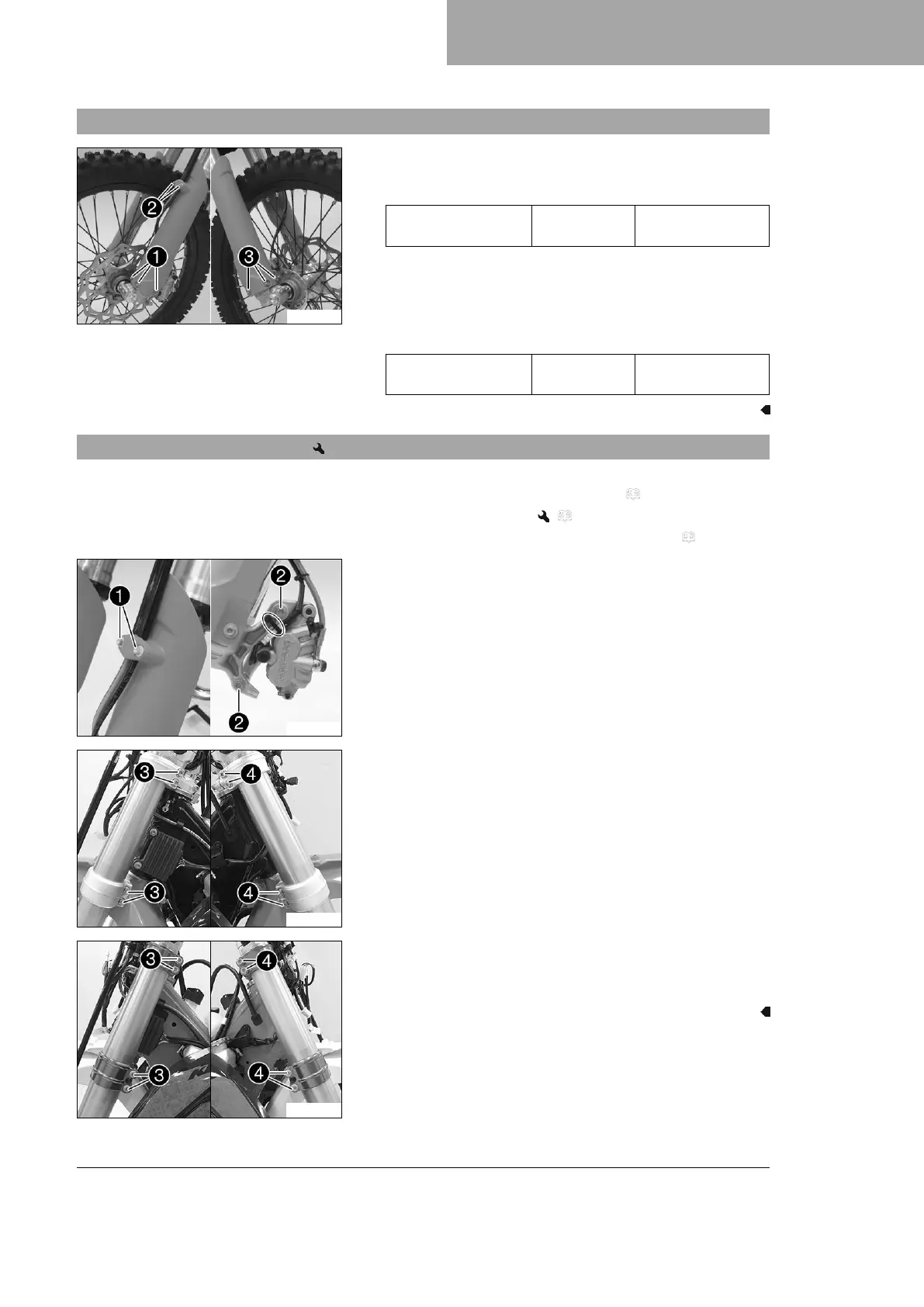

12.6 Installing the fork protector
V00332-11
– Position the fork protector on the left fork leg. Mount and
tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
– Position the brake line, wiring harness, and clamp. Mount and
tighten screws
2
.
– Position the fork protector on the right fork leg. Mount and
tighten screws
3
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
12.7 Removing the fork legs
Preparatory work
– Raise the motorcycle with a lift stand. ( p. 65)
– Remove the front wheel. ( p. 110)
– Remove the headlight mask with the headlight. ( p. 125)
E00375-10
Main work
–
Remove screws
1
and take off the clamp.
– Remove the cable tie.
–
Remove screws
2
and take off the brake caliper.
– Hang the brake caliper and the brake line loosely to the side.
S03475-10
(All standard EXC/XC-W models)
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.
S03476-10
(All special models)
–
Loosen screws
3
. Remove the left fork leg.
–
Loosen screws
4
. Remove the right fork leg.

KTM 250 XC-W TPI Specifications

General

Displacement	249 cc
Cooling	Liquid cooled
Transmission	6-speed
Starter	Electric starter
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Seat Height	960 mm
Ground Clearance	370 mm
Engine Type	1-cylinder, 2-stroke
Fuel System	TPI
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP Xplor shock absorber
Fuel Capacity	9 liters
Frame	Chromium-Molybdenum steel central tube frame
Weight (without fuel)	103 kg
