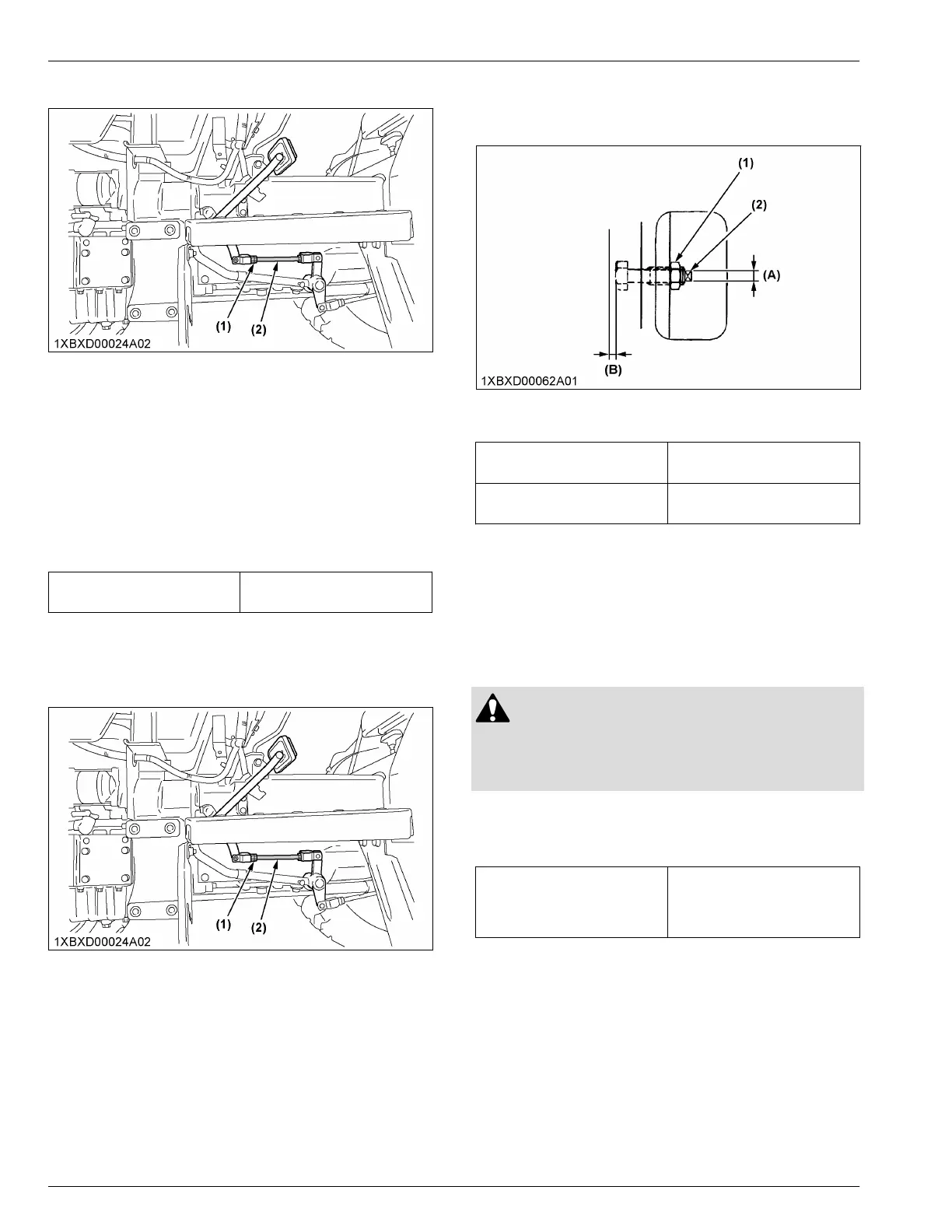

4. Retighten the lock nut.
(1) Lock nut (2) Clutch rod
5. Adjusting the clutch pedal with
dual clutch [L3901 Manual
transmission type]
At first adjust of clutch
1.
Stop the engine and remove the starter key
.
2. Slightly depress the clutch pedal and measure the
free travel at the top of stroke of the clutch pedal.
Proper clutch pedal free travel
20 mm to 30 mm (0.8 in. to
1.2 in.) on the clutch pedal
3. If adjustment is needed, loosen the lock nut and
turn the clutch rod to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
(1) Lock nut (2) Clutch rod
At Second adjust of clutch
1. Remove
the
cover located on the right side of the
case housing the flywheel.
2. Loosen the lock nut, and then tighten the adjusting
bolt by using the 7 mm (0.28 in.) spanner until the
head of the adjusting bolt contacts the pressure
plate slightly.
3. Turn counterclockwise to 3/4 to give the following
clearance
between the head of the adjusting bolt
and pressure plate.
(1) Lock nut
(2) Adjusting bolt
(A)
Diameter of adjusting bolt
(B) Clearance
Diameter of adjusting bolt (A)
7 mm
(0.28 in.)
Clearance (B)
0.9 mm to 1.0 mm
(0.035 in. to 0.039 in.)
4. Tighten the lock nut, holding the adjusting bolt.
5. Turn
the flywheel to adjust the clearance of other
adjusting bolts (3 bolts).
6. Repeat the step 2. and readjust the free travel of
the clutch pedal if necessary.
6. Adjusting the brake pedal
WARNING
To avoid personal injury or death:
•
Stop the engine and chock the wheels before
checking the brake pedal.
1. Release the parking brake.
2. Slightly depress
the brake pedals and measure the
free travel at the top of stroke of the brake pedal.
Proper brake pedal free travel
15 mm to 20 mm (0.6 in. to
0.8 in.) on brake pedal.
Keep the free travel in the right
and left brake pedals equal.
3. If adjustment is needed, loosen the lock nut and
turn
the brake rod to adjust the rod length within the
acceptable limits.
PERIODIC SERVICE SERVICE EVERY 100 HOURS
