3. Hand throttle lever
Pulling the
hand-throttle-lever back decreases engine
speed, and pushing it forward increases engine speed.

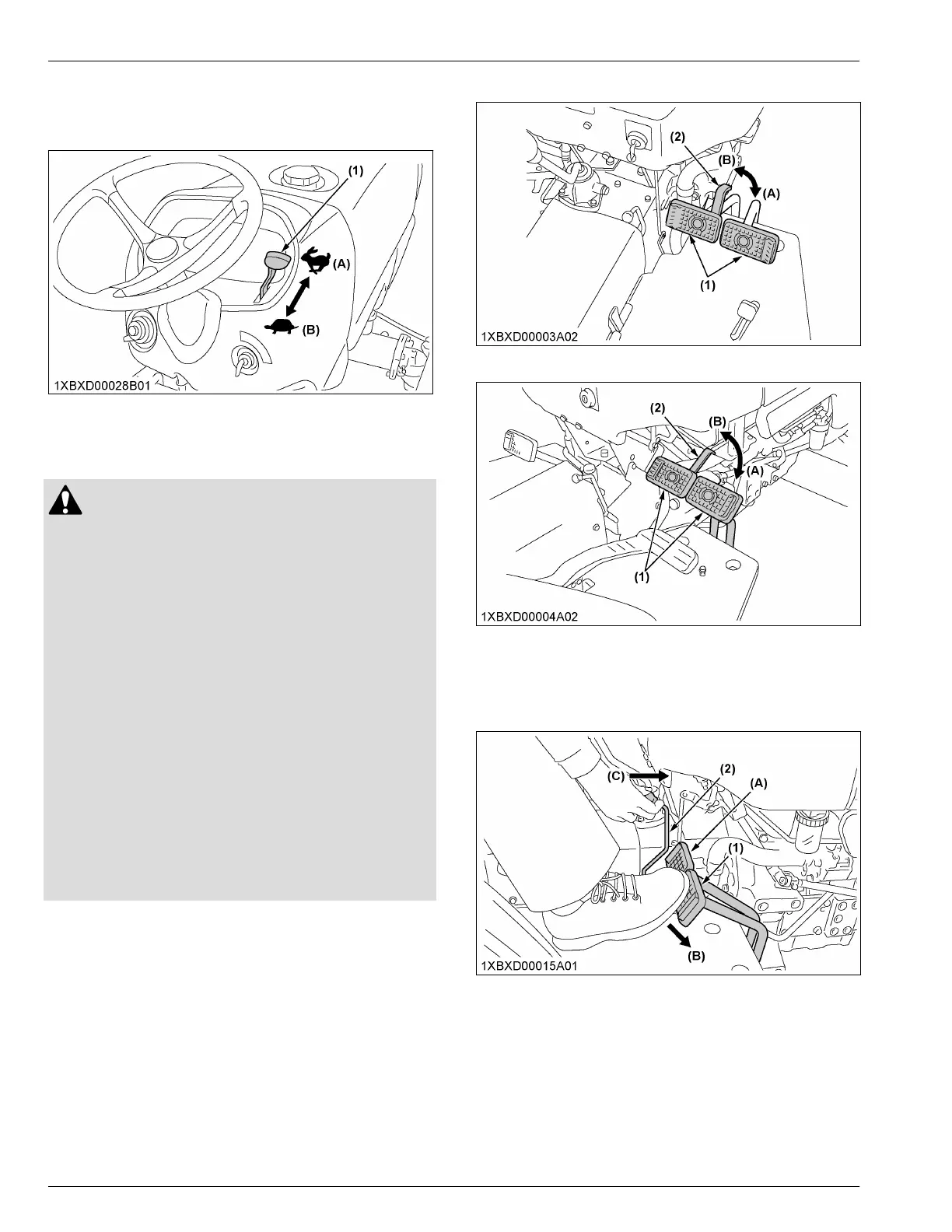

(1) Hand throttle lever (A) Increase
(B) Decrease
4. Brake pedals (right and left)
WARNING
T
o avoid personal injury or death:
•
Be sure to interlock the right and left pedals.
Applying only 1 rear-wheel-brake at high
speeds could cause the tractor to swerve or
roll-over.
• Be sure that the brake pedals is equally
adjusted when using locked together. Incorrect
or unequal adjustment of brake pedal can cause
the tractor to swerve or roll-over.
• Do not brake suddenly.
An accident may occur as a result of a heavy
towed load shifting forward or loss of control.
• To avoid skidding and loss of steering control
when driving on icy, wet, or loose surfaces,
make sure that the tractor is correctly ballasted,
operated at reduced speed, and operated with
the front-wheel drive engaged if equipped.
• The braking characteristics are different
between 2-wheel drive and 4-wheel drive. Be
aware of the difference and use carefully.
• Before operating the tractor on the road or before
applying the parking brake, be sure to interlock the
right and left pedals as the following figure.
• Use individual brakes to assist in turning sharply at
slow speeds (field operation only). Disengage the
brake-pedal-lock and depress only 1 brake pedal.
• Be sure brake pedals have equal adjustment when
being used locked together.
[Manual transmission type]
[HST type]
(1) Brake pedal
(2) Brake pedal lock
(A)
Lock
(B) Release
4.1 How to use the parking brake
(1) Brake pedal
(2) Parking brake lever
(A)
Interlock the brake pedals
(B) Depress
(C) Push
NOTE :
• The parking-brake-indicator
in the Easy
Checker
™
comes on while the parking brake is
applied and goes off when it is released.
