3. Then install the split-pin-plug again.
(1) Split pin plug
3. Replacing the fuse
IMPORTANT :
• Before
replacing
a blown fuse, determine why
the fuse blew and carry out any necessary
repairs. Failure to follow the replacing
procedure may result in serious damage to the
electrical system of the tractor. See ENGINE
TROUBLESHOOTING on page 128 or your local
KUBOTA Dealer for specific information dealing
with electrical problems.
The electrical system of the tractor is protected from
potential damage by fuses.
A blown fuse indicates that there is an overload or short
somewhere in the electrical system.
1. If any of the fuses should blow, replace with a new
fuse with the same capacity.

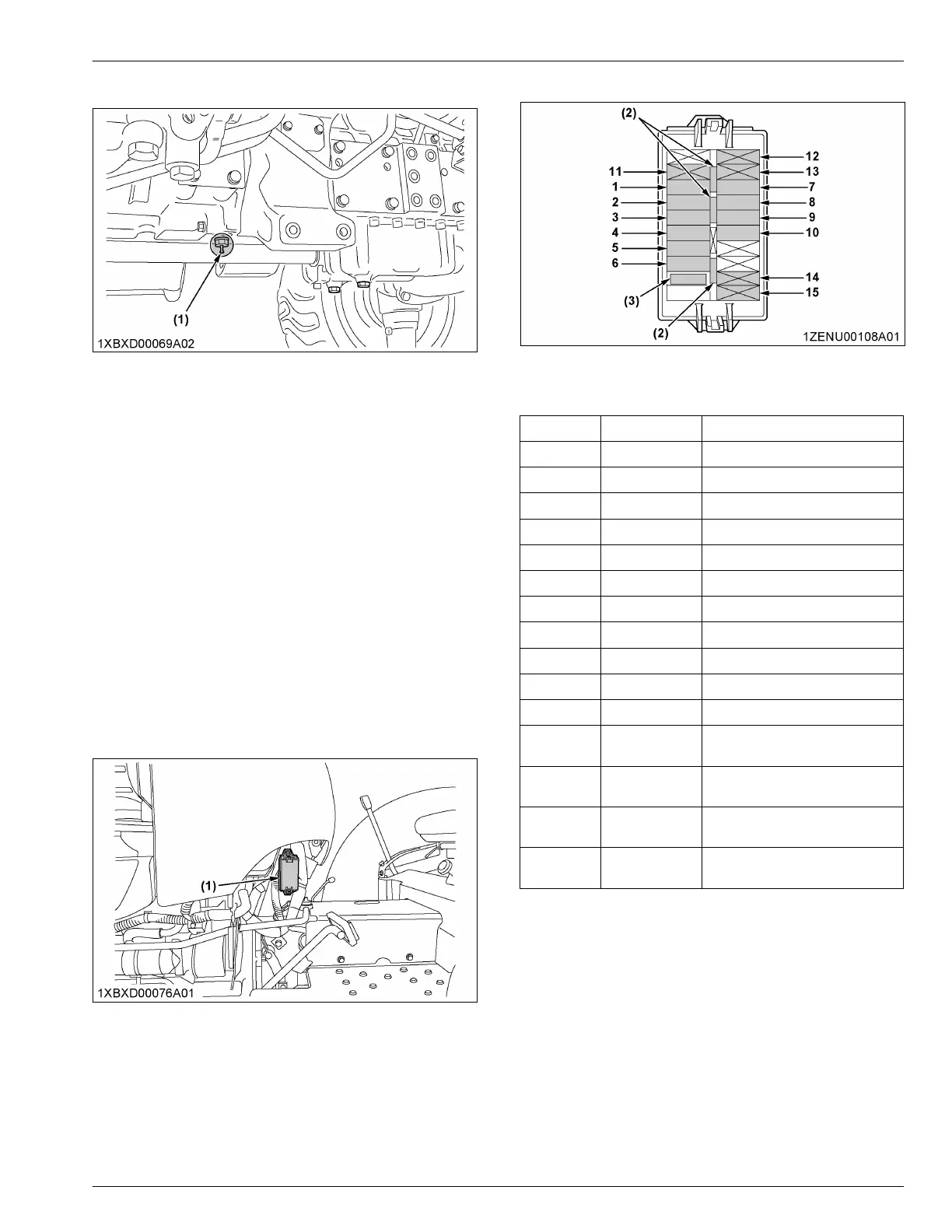

(1) Fuse
Fuse (1)
(2) Spare fuse (3) Fuse puller
Protected circuit
Fuse No. Capacity (A) Protected circuit
1 5 Engine ECU (Ignition key)
2 5 Main ECU (Ignition key)
3 5 Meter panel (Ignition key)
4 10 Combination switch
5 10 Work light
6 5 Starter relay
7 20 Engine ECU (Battery)
8 5 Main ECU (Battery)
9 5 Meter panel (Battery)
10 10 Hazard
11 5 Heater relay (if equipped)
12 10
Heater (Oil separator, IN 1) (if
equipped)
13 10
Heater (Oil separator, IN 2) (if
equipped)
14 10
Heater (Oil separator, OUT 1) (if
equipped)
15 10
Heater (Oil separator, OUT 2) (if
equipped)
4. Replacing the slow-blow fuses
The slow-blow fuses are intended to protect the
electrical cabling.
SERVICING AS REQUIRED PERIODIC SERVICE
L3301,L3901
123
