Kubota L3901 User Manual

Tire Tread
15-19.5
Industry
(A) 1145 mm (45.1 in.)
13.6-16
Turf
(A) 1115 mm (43.9 in.)
11.2-24
Farm
(A) 1115 mm
(43.9 in.)
(A) 1195 mm
(47.1 in.)
(A) 1290 mm
(50.8 in.)

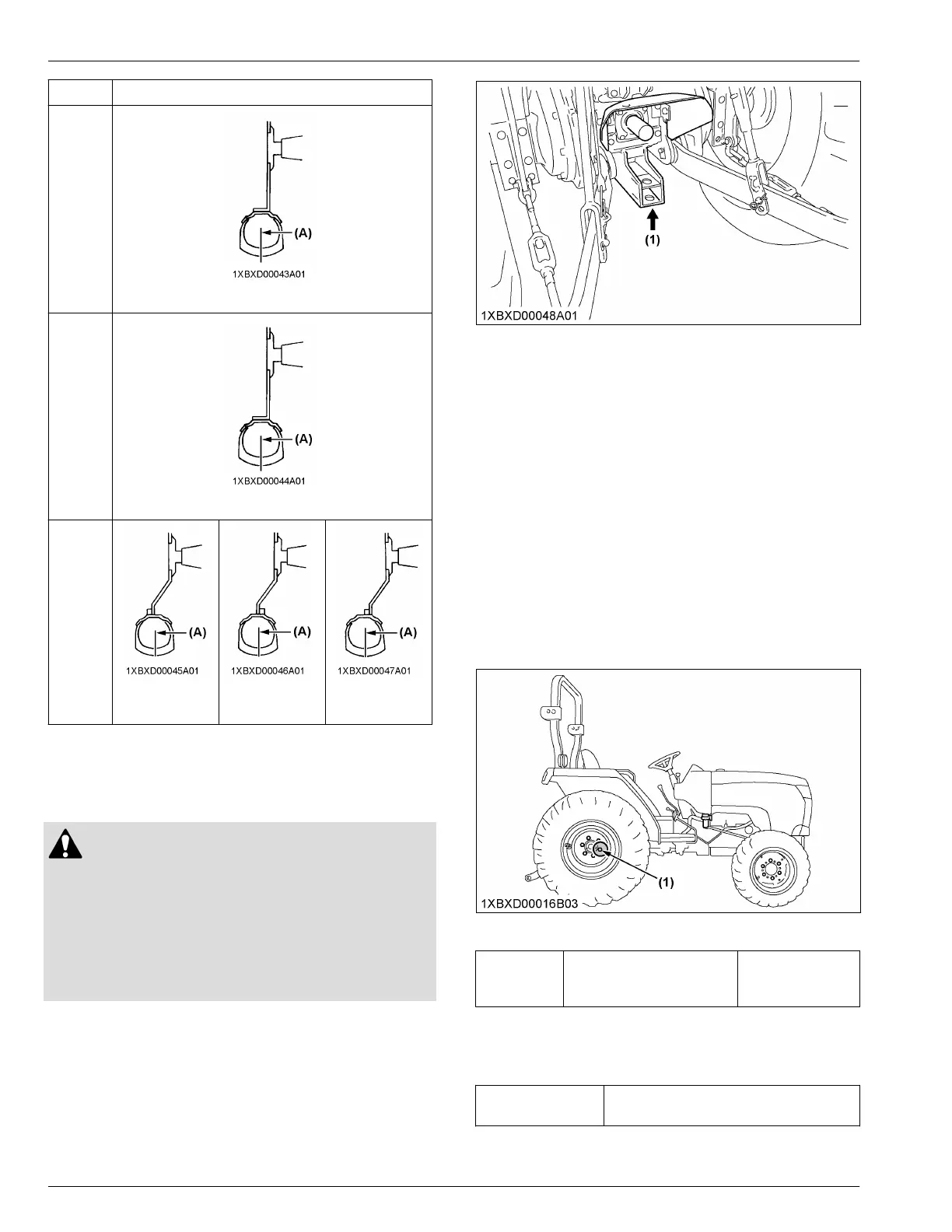

2.1 Adjusting the rear wheels
This section describe the procedure to change the
width of the rear tread.
WARNING
T
o avoid personal injury or death:
•
Before jacking up the tractor, park it on a firm
and level ground and chock the rear wheels.
• Fix the front axle to keep it from pivoting.
• Select the jacks that withstand the machine
weight and set them up as shown in the
following figure.
(1) Jack point
1. Remove
the
bolts which mount the wheel rim and /
or disk.
2. Change the position of the rim and / or disk (right
and left) to the desired position.
3. Tighten the bolts.
IMPORTANT :
• Always attach the tires as shown in the
following figure.
• If you do not attach the rear wheel as the
following figure, transmission parts may be
damaged.
• Do not turn the rear discs to obtain the wider
tread.
• When re-fitting or adjusting a wheel, tighten
the bolts to the following torques.
(1) Bolt
Bolt (1) Tightening torque
215 N⋅m
(22 kgf⋅m)
[160 ft⋅lbs]
Then recheck after driving the tractor as
follows, and
thereafter according to
SERVICE INTERVALS on page 87.
Driving tractor
200 m (200 yards) and 10 times of shuttle
movement by 5 m (5 yards)
TIRES, WHEELS, AND BALLAST WHEEL ADJUSTMENT
84
L3301,L3901

Kubota L3901 Specifications

General

Engine Type	Diesel
Engine Horsepower	37.5 HP
3-Point Hitch	Category I
Weight	2, 623 lbs (Gear Drive), 2, 778 lbs (Hydrostatic)
Displacement	111.4 cu in
Cylinders	3
Displacement (cu in)	111.4
Hydraulic System Type	Open center
Width	55.1 inches
Transmission Type	Gear or HST
Fuel Capacity	11.1 gal
Gears	8 forward, 4 reverse (Gear)
Number of Gears	8 forward, 4 reverse
Fuel Tank Capacity	11.1 gal
Lift Capacity at 24"	1433 lbs
Height	91.7 inches
Tire Size (Front)	7-16
Tire Size (Rear)	11.2-24
Engine Model	D1803
