HYDRAULIC UNIT
IMPORTANT :
• Do not
operate the hydraulic unit until the
engine is warmed up. If operation is attempted
when the engine is still cold, the hydraulic
system may be damaged.
• If you hear noises when implement is lifting
after the hydraulic-control-lever has been
activated, the hydraulic mechanism is not
adjusted properly. Unless corrected, the
hydraulic unit will be damaged. Contact your
KUBOTA Dealer for adjustment.
3-POINT HITCH CONTROL
SYSTEM
WARNING
T
o avoid personal injury or death:
•
Before using the 3-point hitch controls, make
sure that no person or object is in the area of
the implement or 3-point hitch.
• Do not stand on or near the implement or
between the implement and tractor when
operating the 3-point hitch controls.

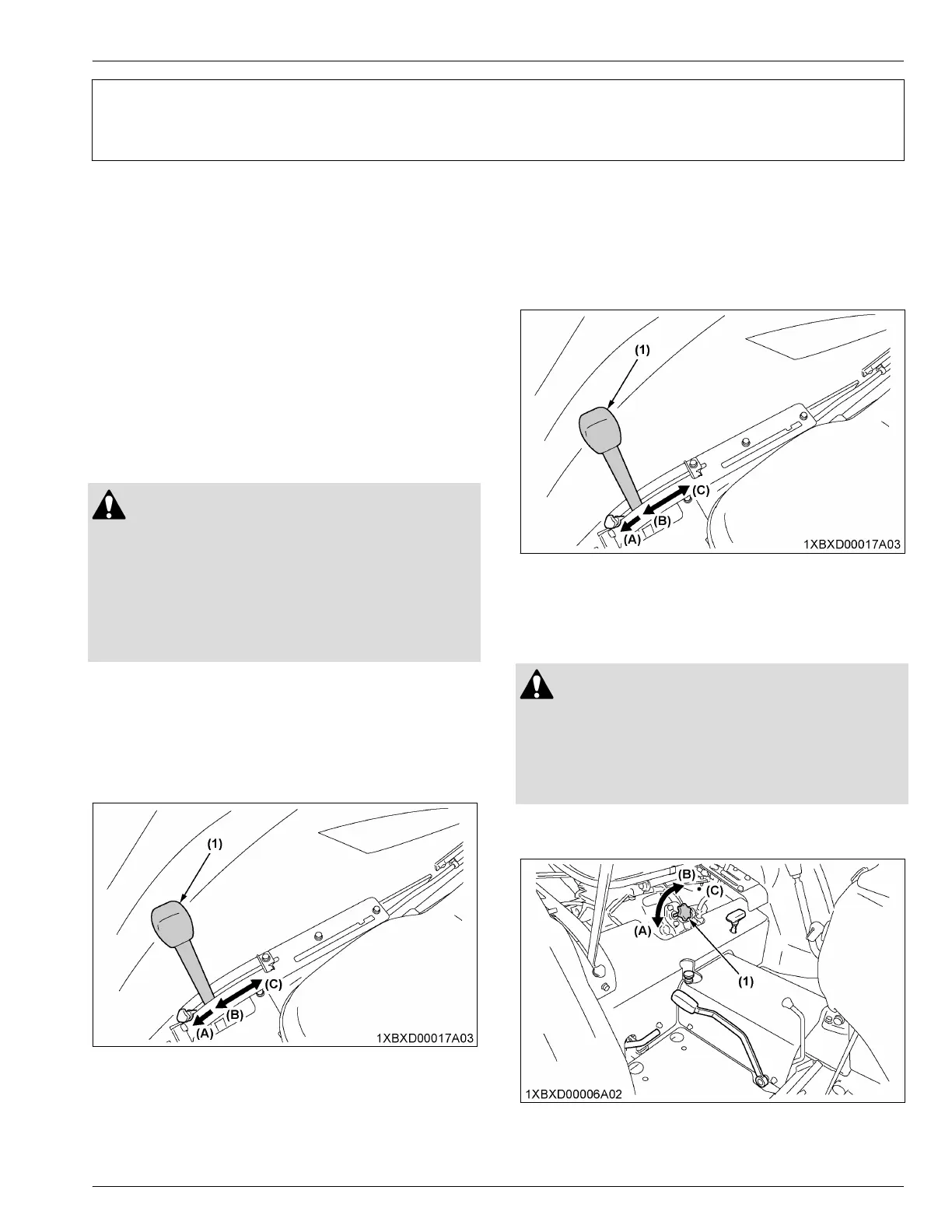

1. Position control of 3-point hitch
mounted implement
Position control will control the working depth of 3-point
hitch mounted implements regardless of the amount of
pull required.
(1) Position control lever (A) Float
(B) Down
(C)
Up
2. Float control of 3-point hitch
mounted implement
Place the
position-control-lever in the float position to
move the lower links freely along with the ground
conditions.
(1) Position control lever (A) Float
(B) Down
(C)
Up
3. 3-point hitch lowering speed
WARNING
To avoid personal injury or death:
•
Fast lowering speed may cause damage or
injury. You should adjust the lowering speed of
3-point hitch mounted implement to 2 or more
seconds.
You can control the lowering speed of the 3-point hitch
by adjusting the 3-point hitch lowering speed knob.
(1) 3-point hitch lowering speed
knob
(A) Fast
(B) Slow
(C)
Lock
