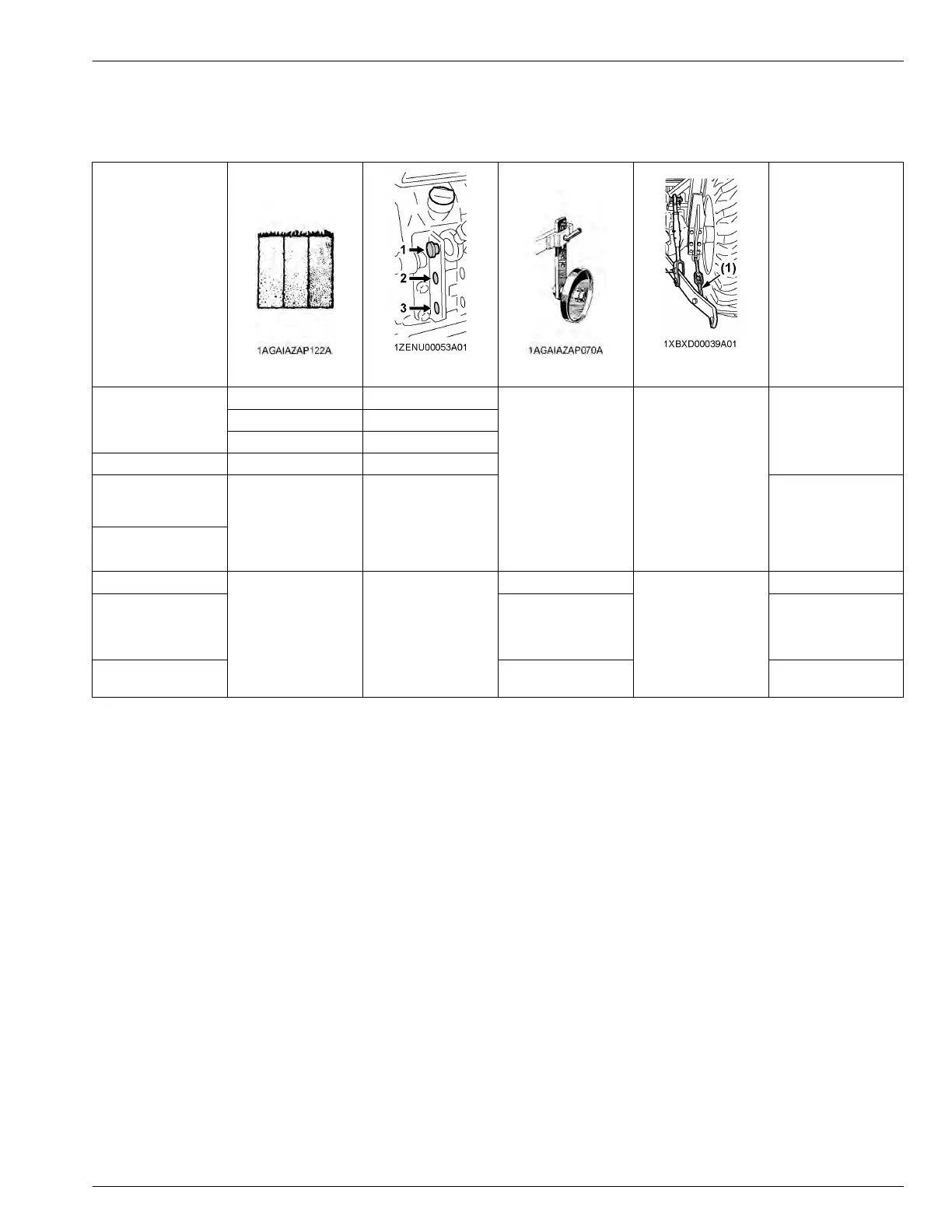

2. Hydraulic control unit use reference chart
In order
to use the hydraulics properly, the operator must know the following chart. Though this information may not
be applicable to all types of implements and soil conditions, it is useful for general conditions.
Implement
Soil condition
Top link mounting
holes
Gauge wheel
(1) Check chains
Remarks
Moldboard plow
Light soil 1 or 2
Yes/no Loose
Adjust the check chains
so that the implement
can move 5 cm to 6 cm
(2.0 in. to 2.4 in.) later-
ally.
Medium soil 2 or 3
Heavy soil 3
Disc plow - 2 or 3
Harrower (spike,
springtooth, and disc
type)
--- 2 or 3
T
ighten the check
chains enough to pre-
vent excessive imple-
ment movement when
implement is in raised
position.
Sub-soiler
Weeder and ridger
--- 3
YES
Tighten
Earthmover, digger,
scraper, manure fork,
and rear carrier
Yes/no
With implements with
gauge wheels, lower
the position-control-lev-
er all the way.
Mower (mid mount type
and rear mount type)
No
AUXILIARY HYDRAULICS HYDRAULIC UNIT
L3301,L3901
81

Kubota L3901 Specifications

General

Engine Type	Diesel
Engine Horsepower	37.5 HP
3-Point Hitch	Category I
Weight	2, 623 lbs (Gear Drive), 2, 778 lbs (Hydrostatic)
Displacement	111.4 cu in
Cylinders	3
Displacement (cu in)	111.4
Hydraulic System Type	Open center
Width	55.1 inches
Transmission Type	Gear or HST
Fuel Capacity	11.1 gal
Gears	8 forward, 4 reverse (Gear)
Number of Gears	8 forward, 4 reverse
Fuel Tank Capacity	11.1 gal
Lift Capacity at 24"	1433 lbs
Height	91.7 inches
Tire Size (Front)	7-16
Tire Size (Rear)	11.2-24
Engine Model	D1803
