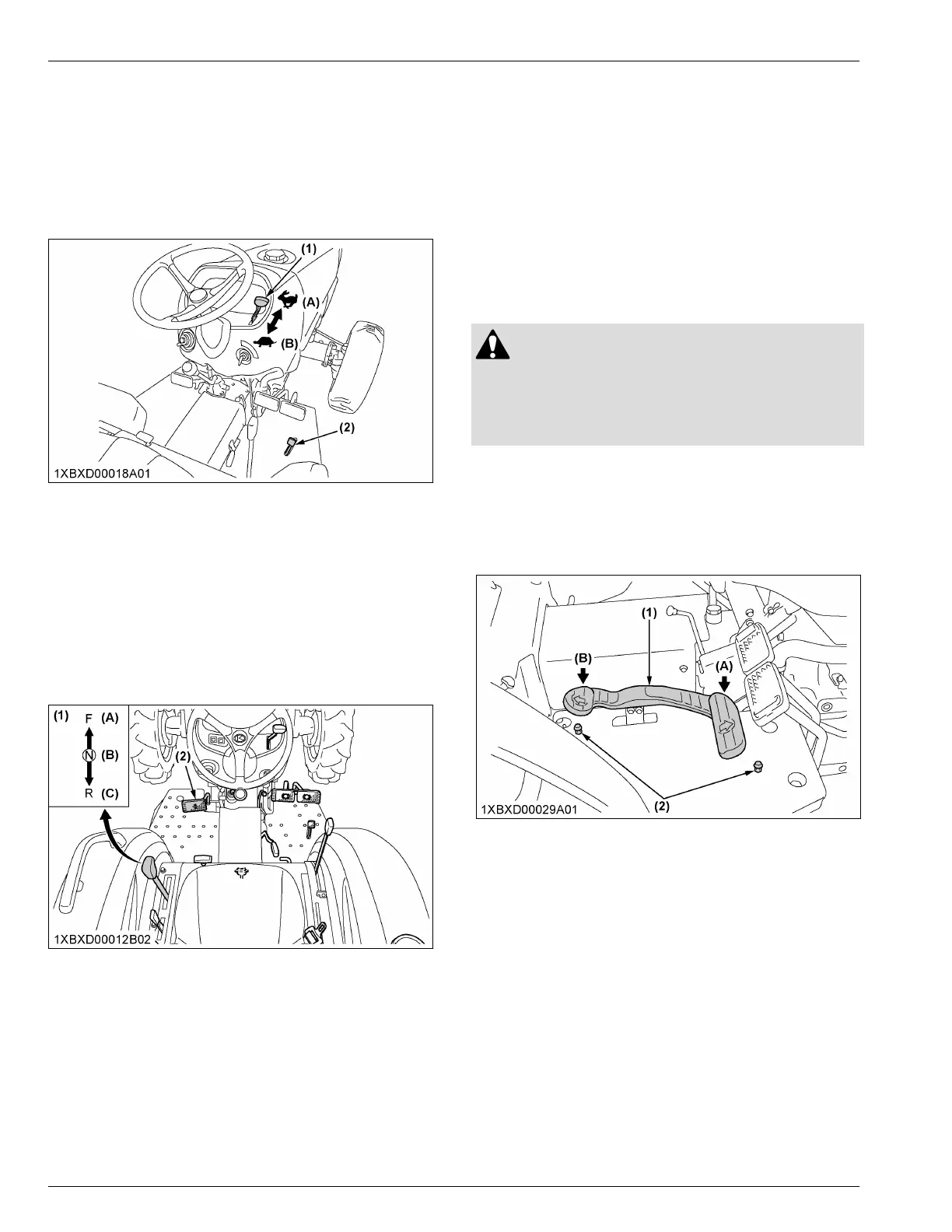

11. Foot throttle [Manual
transmission type only]
Use the foot throttle when traveling on the road.
Press down
on the foot throttle for higher speed. The
foot throttle is interlocked with the hand-throttle-lever.
When using the foot throttle, keep the hand-throttle-
lever in the low idling position.
(1) Hand throttle lever
(2) Foot throttle
(A) Increase
(B) Decrease
12. Synchro-shuttle shift lever
[Manual transmission type only]
Shift the synchro-shuttle shift lever forward to obtain
forward
speeds
and shift back to obtain reverse
speeds.
When changing the synchro-shuttle shift lever, depress
the clutch pedal and stop the tractor before shifting.
(1) Synchro-shuttle shift lever
(2) Clutch pedal
(A)
Forward
(B) Neutral position
(C) Reverse
IMPORTANT :
• The synchro-shuttle
shift lever may be shifted
while the tractor is moving slowly and the
clutch is depressed, but sudden gear shifting
may cause transmission damage.
NOTE :
• When you
stand up from the operator's seat
with the synchro-shuttle shift lever at
“FORWARD” or “BACKWARD”, the engine will
stop regardless of whether the machine is
moving or not. The engine stop is because the
tractor is equipped with operator-presence-
control system (OPC).
13. Speed control pedal [HST type
only]
WARNING
To avoid personal injury or death:
•
Do not operate if the tractor moves on level
ground with foot off of the speed control pedal.
• Consult your local KUBOTA Dealer.
• Forward pedal
Depress the speed-control-pedal with the toe of
your right foot to move forward.
• Reverse pedal
Depress the speed-control-pedal with the heel of
your right foot to move backward.
(1) Speed control pedal
(2) Stopper bolt
(A)
Forward
(B) Reverse
IMPORTANT :
• To
prevent serious damage to the HST, do not
adjust the stopper bolts.
NOTE :
• When you stand up from the operator's seat
with the speed-control-pedal stepped on or the
cruise-control-lever engaged on, the engine will
stop regardless of whether the tractor is moving
or not. The engine stop is because that the
tractor is equipped with the operator-presence-
control system (OPC).
INSTRUMENT PANEL AND CONTROLS
FOOT CONTROLS AND HAND CONTROLS
