5. Dismount the operator's seat and tilt up quickly.
Engine
will
stop if there is a delay in tilting up the
operator's seat.
[Manual transmission type]
[HST type]

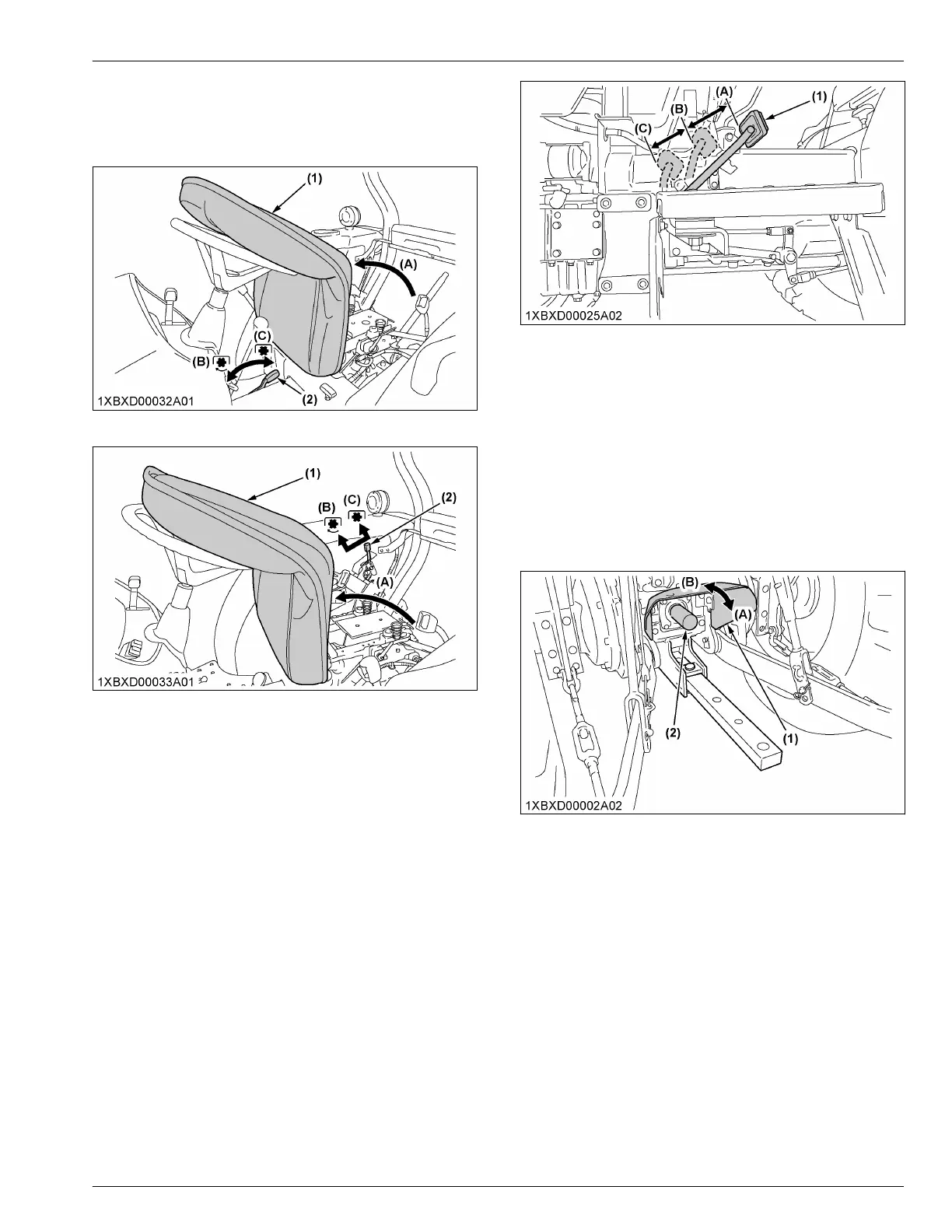

(1) Operator's seat
(2) PTO gear shift lever
(A) Tilt forward
(B) On
(C) Off
NOTE :
• If the
PTO system is engaged and you stand
up from the operator's seat or the operator's
seat is not tilted forward, the engine stops
automatically after standing up.
3. Operating the live PTO with dual
clutch [L3901 Manual transmission
type only]
1. Fully depressed the clutch pedal (1), and move the
PT
O-gear-shift lever to the “ON” position and select
the traveling speed.
2. Release the clutch pedal half-way (B).
The PTO will be engaged, but transmission clutch
remains disengaged
3. Release the clutch pedal (A) and start the tractor.
(1) Clutch pedal (A) Release fully
(B) Release half-way
(C)
Depressed fully
4. PTO shaft cover and PTO shaft
cap
Keep the PTO-shaft-cover in place at all times.
Replace the
PTO-shaft-cap when the PTO shaft is not
in use.
When connecting or disconnecting the joint to the PTO
shaft, raise up the PTO-shaft-cover.
(1) PTO shaft cover
(2) PT
O shaft cap
(A) Normal position
(B) Raised position
IMPORT
ANT :
• The universal joint of the PTO-drive-shaft is
technically limited in its moving angle. Refer to
the PTO Drive Shaft Instructions for proper use.
