14. Range gear shift lever (L-M-H)
[HST type only]
You
can shift the range gear only when the tractor is
completely stopped and the speed-control-pedal is the
neutral position.

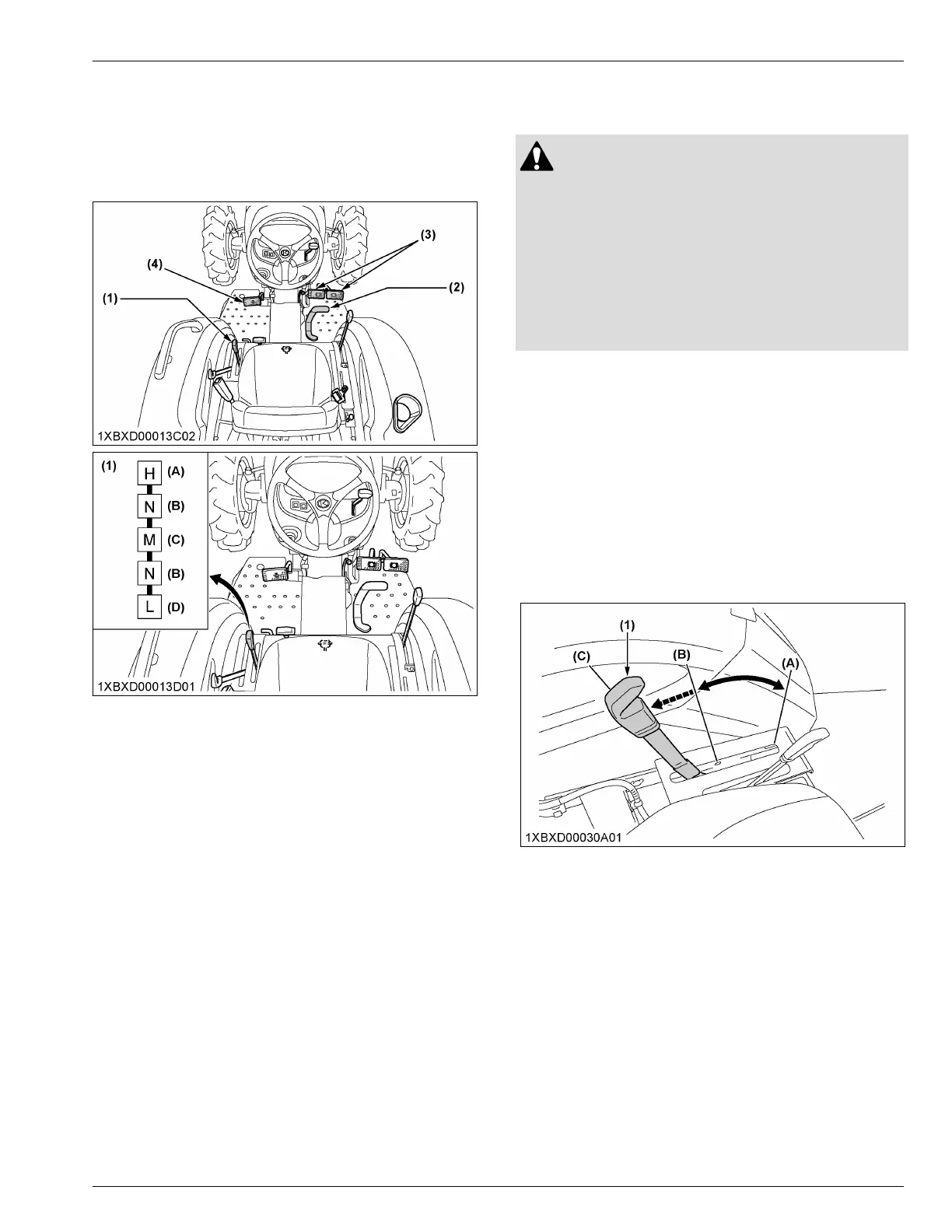

(1) Range gear shift lever (L-M-
H)
(2) Speed control pedal
(3)
Brake pedal
(4) Clutch pedal
(A) High
(B) Neutral position
(C) Middle
(D) Low
IMPORTANT :
To
avoid damage of transmission and shift linkage
when shifting:
• Completely stop the tractor using the brake
pedals.
• Do not force the range-gear-shift-lever.
• If it is difficult to shift the range-gear-shift-lever
into [L], [M], or [H] from the neutral position:
On slopes, be sure to set the parking brake and
start the following procedure.
1. Slightly depress the speed-control-pedal to
rotate the gears inside of transmission.
2. Release the speed-control-pedal to the
neutral position.
3. Depress the clutch pedal, wait for a moment,
and then shift the range-gear-shift-lever.
15. Cruise control lever (if equipped)
[HST type only]
WARNING
To avoid personal injury or death:
•
Pull the cruise-control-lever completely to the
rear before starting the engine.
• Do not use the cruise control when driving on
the road.
• Be sure to connect both the left and the right
brakes to release the cruise control. The speed-
cruise-control will not be released with single
brake activation.
Cruise control is designed for operating efficiency of the
tractor and operator comfort. Cruise control will provide
a constant forward operating speed by mechanically
holding the cruise-control-lever at the selected position.
NOTE :
• Cruise-control-device will not operate in
reverse.
• Preferably set the cruise-control-lever, while
holding down the speed-control-pedal. You can
set the cruise-control-lever smoothly.
• When releasing the cruise mode, be sure to
return the cruise-control-lever fully backward.
(1) Cruise control lever (A) Increase
(B) Decrease
(C)
Off
