FOOT CONTROLS AND HAND CONTROLS

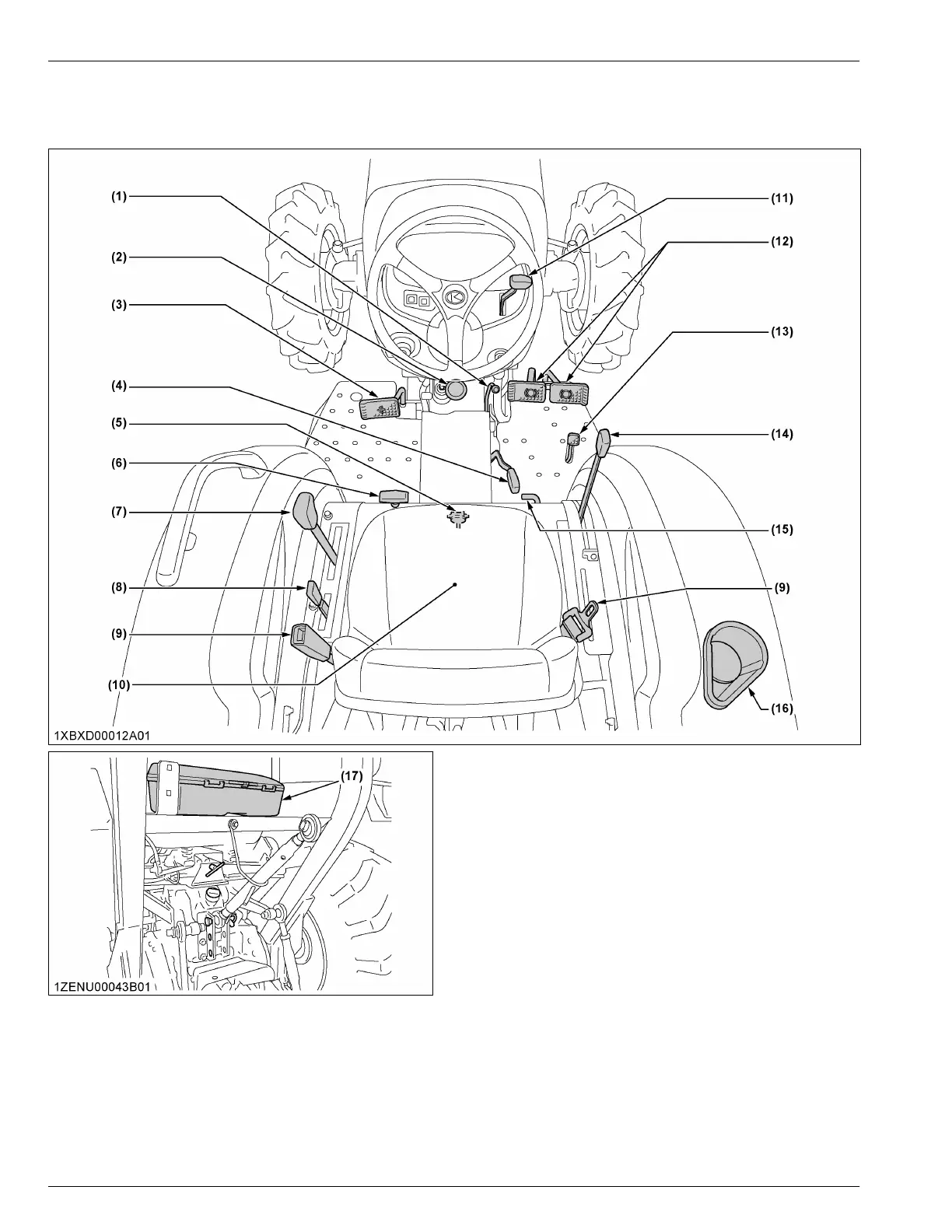

1. Foot controls and hand controls [Manual transmission type]
(1) Parking brake lever........................................................................ 36
(2) Main gear shift lever
...................................................................... 39
(3) Clutch pedal [3301]........................................................................ 39
/
Clutch pedal [3901]........................................................................ 39
(4) PTO gear shift lever....................................................................... 74
(5) 3-point hitch lowering speed knob ................................................. 79
(6) Front wheel drive lever [4WD type]................................................ 37
(7) Synchro-shuttle shift lever ............................................................. 40
(8) Range gear shift lever.................................................................... 39
(9) Seat belt......................................................................................... 38
(10) Operator's seat .............................................................................. 38
(11) Hand throttle lever ......................................................................... 36
(12) Brake pedal.................................................................................... 36
(13) Foot throttle.................................................................................... 40
(14) Position control lever ..................................................................... 79
(15) Differential lock pedal .................................................................... 71
(16) Cup holder
(17) Tool box
INSTRUMENT PANEL AND CONTROLS FOOT CONTROLS AND HAND CONTROLS
34
L3301,L3901

Kubota L3901 Specifications

General

Engine Type	Diesel
Engine Horsepower	37.5 HP
3-Point Hitch	Category I
Weight	2, 623 lbs (Gear Drive), 2, 778 lbs (Hydrostatic)
Displacement	111.4 cu in
Cylinders	3
Displacement (cu in)	111.4
Hydraulic System Type	Open center
Width	55.1 inches
Transmission Type	Gear or HST
Fuel Capacity	11.1 gal
Gears	8 forward, 4 reverse (Gear)
Number of Gears	8 forward, 4 reverse
Fuel Tank Capacity	11.1 gal
Lift Capacity at 24"	1433 lbs
Height	91.7 inches
Tire Size (Front)	7-16
Tire Size (Rear)	11.2-24
Engine Model	D1803
