6. ENGINE REMOVAL
6-10
MXU 300/ 250

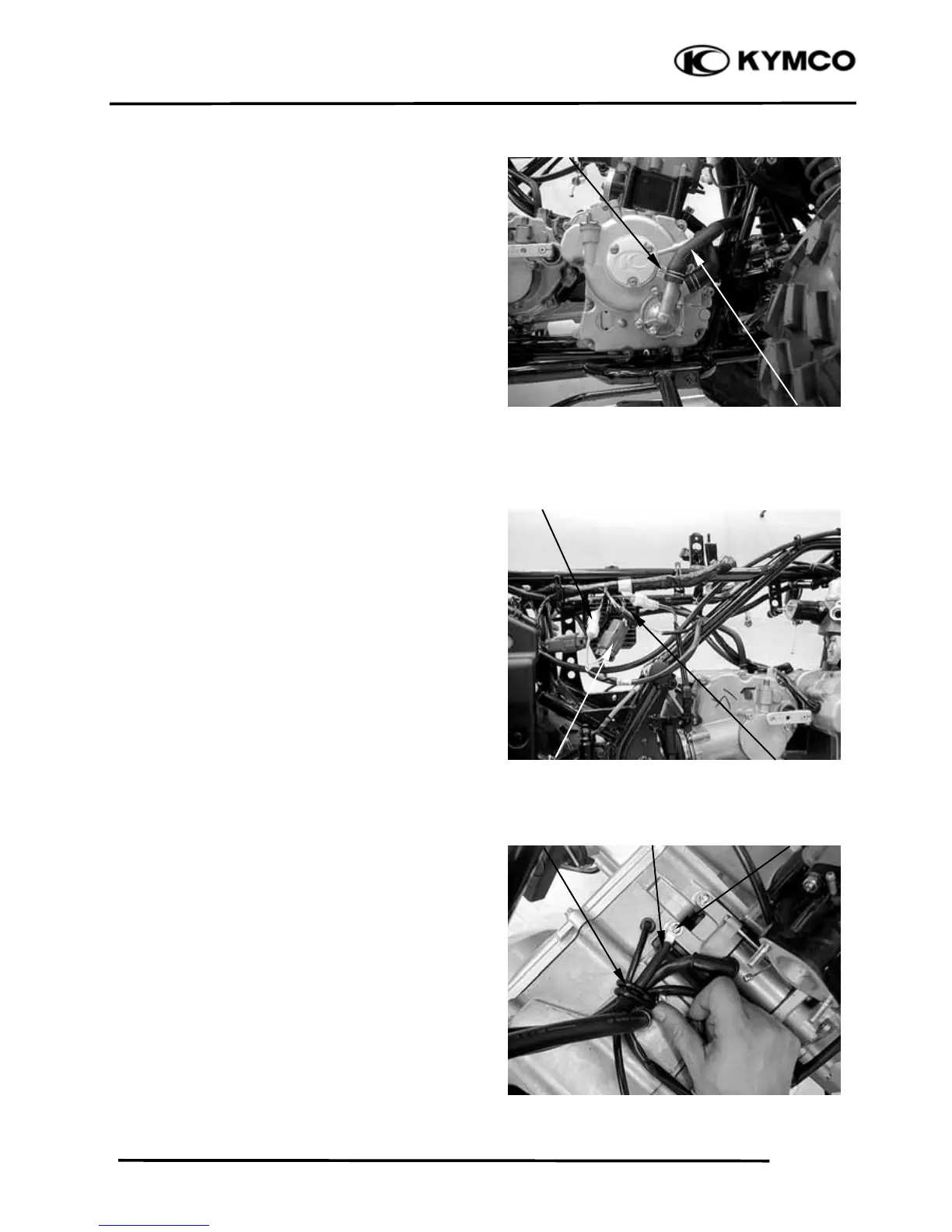

Loosen the hose band and disconnect the
water hose from the water pump.
Remove the A.C. Generator, ignition pulse
generator and gear change switch
connectors.
Straight the clamp and remove the bolt, then
disconnect the engine ground cable.
Band
Water Hose
Ignition Pulse Generator Connectors
Gear Change Switch
Connector
A.C. Generato
r
Clamp Engine Ground Cable Bol
t
