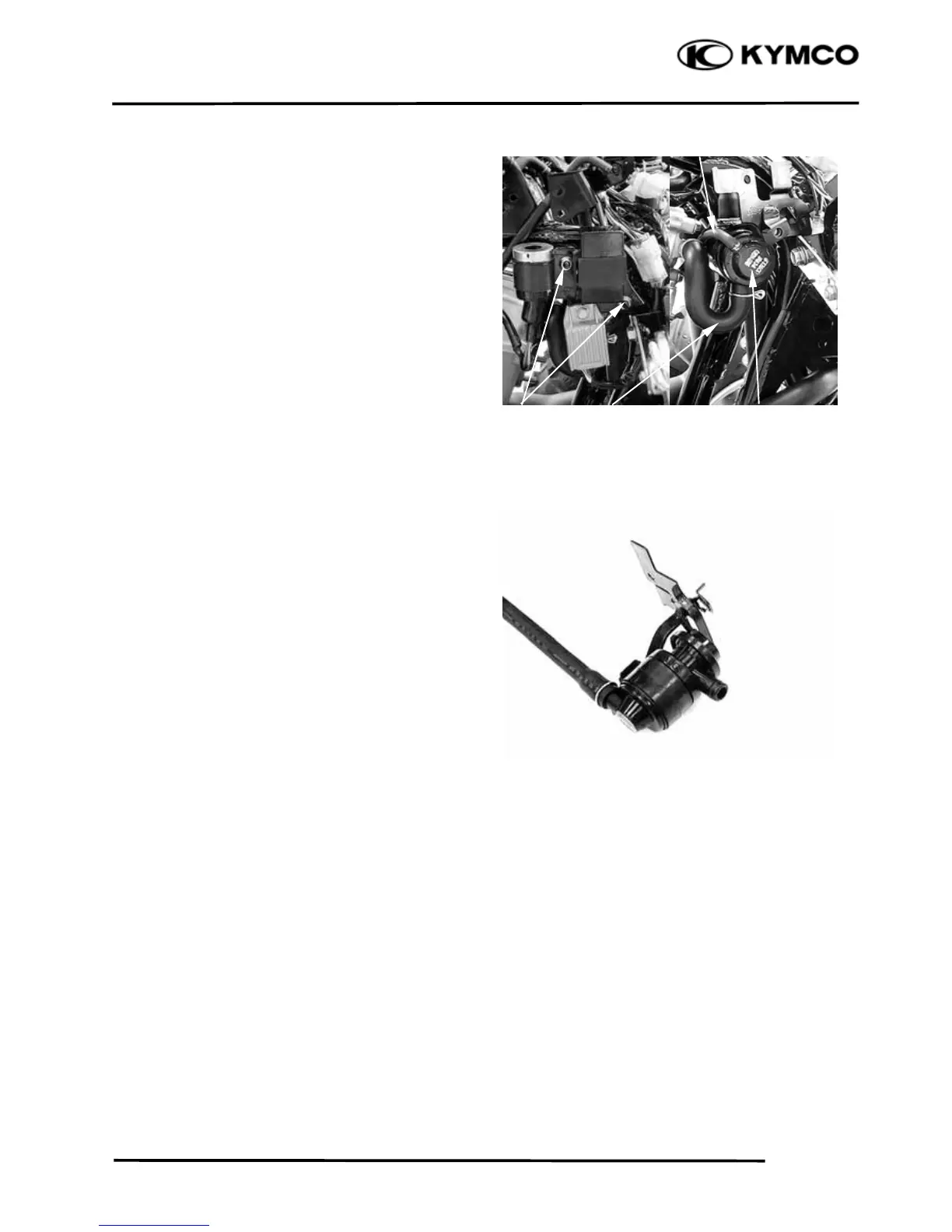

. FUEL SYSTEM
5-16
MXU
300/250
PAIR SOLENOID VALVE
REMOVAL/INSTALLATION
Remove the two nuts and electrical holder.
Disconnect air supply hose and vacuum hose
from the air solenoid valve, then remove the
air solenoid valve.
Installation is in the reverse order of
removal.
N
uts
Vacuum Hose
Vacuum Hose
PAIR Solenoid Valve
96
98
