13. BRAKE SYSTEM
13-6
MXU 300/250

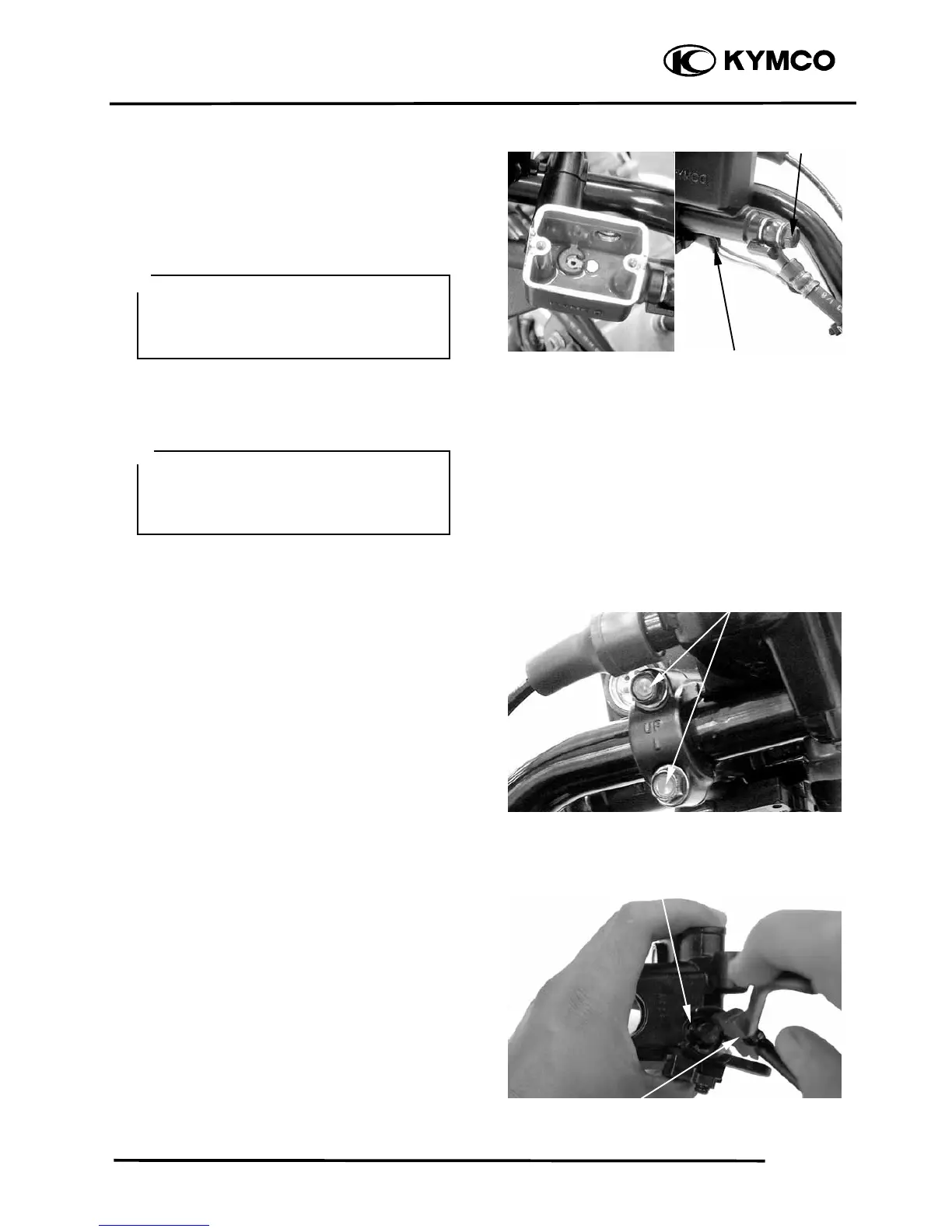

BRAKE MASTER CYLINDER
DISASSEMBLY
Remove the brake reservoir cover
Drain the brake fluid from the hydraulic
brake system. (
page
13-4)
Remove fluid tube bolt and then disconnect
the fluid tube.
Disconnect the stop light switch wires.
Remove the two master cylinder holder
bolts and remove the master cylinder.
Remove the brake lever bolt and the brake
lever.
Remove the piston rubber cover and snap
ring from the brake master cylinder.
Snap Ring
Snap Ring Pliers (Close)
Fluid Tube Bol
Stop Light Switch Wire
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
＊
When removing the brake fluid tube bolt,
be sure to place towels under the tube
and plug the tube end to avoid brake
fluid leakage and contamination.
＊
Bolts
To Next Page
