13. BRAKE SYSTEM
13-9
MXU 300/250

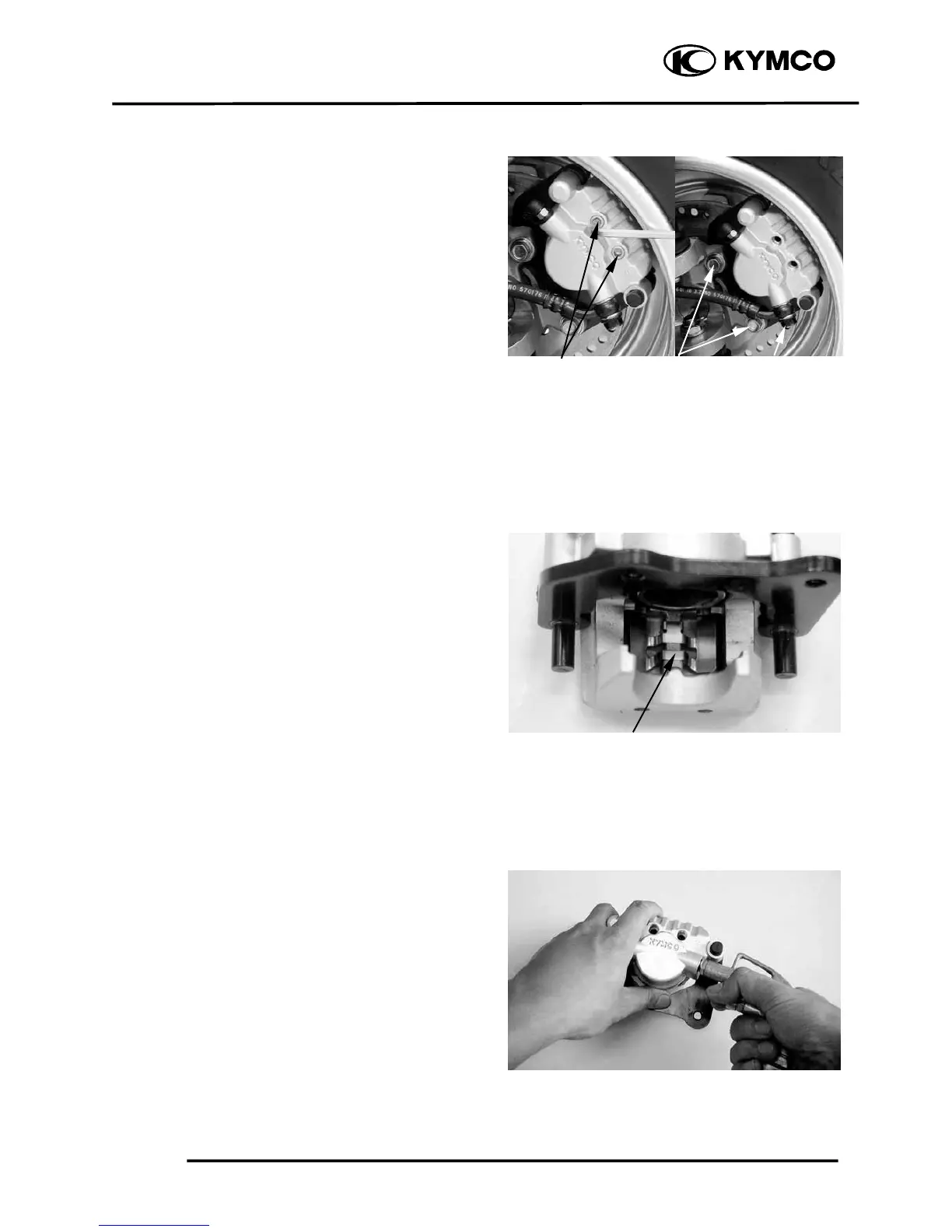

FRONT BRAKE CALIPER
REMOVAL
Remove the front wheel. (
page 14-3
)
First drain the brake fluid from the
hydraulic brake system. (
page
13-4)
Remove the brake pad pins.
Remove the brake fluid tube bolt.
Remove the two bolts attaching the brake
caliper.
Remove the brake caliper.
DISASSEMBLY
Remove the brake pads. (
page
13-3)
Remove the brake pad spring plate.
Remove the piston from the brake caliper.
If necessary, use compressed air to squeeze
out the piston through the brake fluid inlet
opening and place a shop towel under the
caliper to avoid contamination caused by
the removed piston.
Check the piston cylinder for scratches or
wear and replace if necessary.
Spring Plate
Brake Pad Pins
Bolts
Fluid Tube Bol
