19. LIGHTS/SWITCHES
19-2
MXU 300/250
BULBS REMOVAL
HEADLIGHT
Remove the front fender. (See page 2-8)
Remove the rubber boot from the headlight
case.
Disconnect the headlight wire connector.
Relax the lock clips to remove the bulb and
replace with a new one.
Install the bulb, aligning the bulb socket
groove with the bulb tab and set the lock
clips.
Connect headlight wire connector.
Install the rubber boot.
Install the front fender in the reverse order
of removal.
POSITION LIGHT
Remove the bulb socket by pulling it out.
Remove the bulb.
Install the bulb in the reverse order of
removal

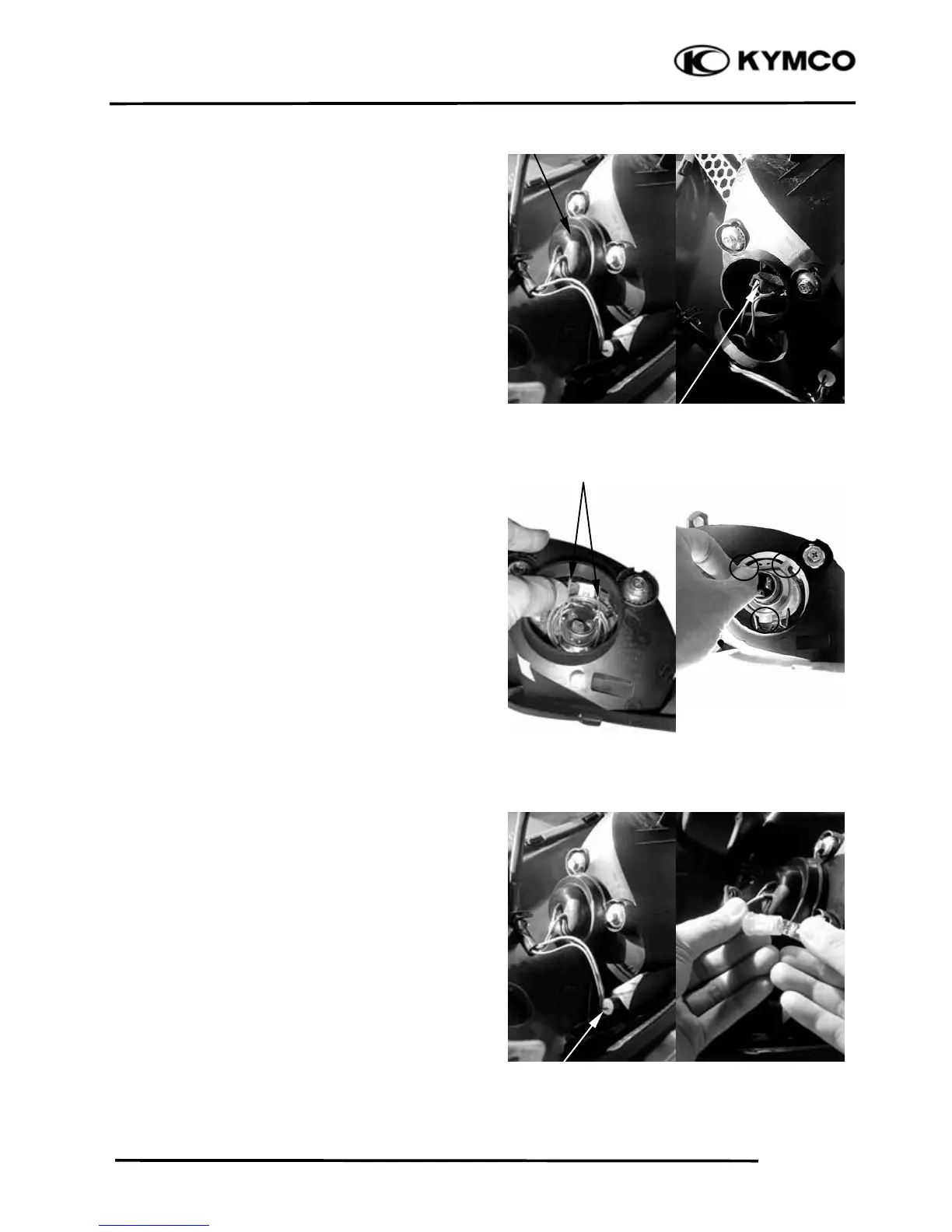

Rubber Boot
Bulb Socket
Lock Clips
Lock Clip
Headlight Connector
