12
. COOLING SYSTEM
12-14
MXU
300/250

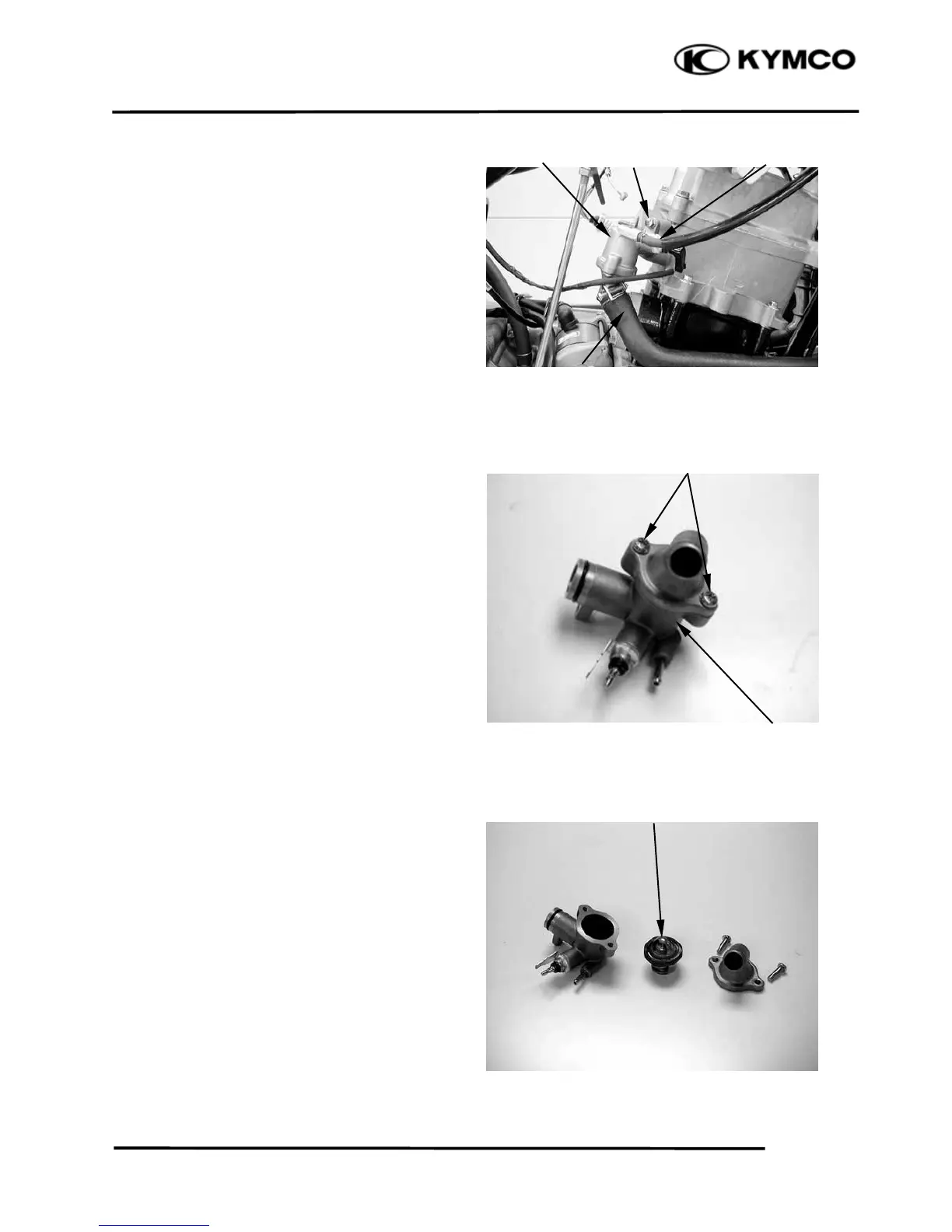

THERMOSTAT
THERMOSTAT REMOVAL
Drain the coolant. (
page
12-7)
Disconnect the thermosensor wire from the
thermosensor.
Disconnect the water hose from the
thermostat housing.
Disconnect the air vent tube from the
thermostat housing.
Remove the mounting bolt and the
thermostat housing from the cylinder head.
Remove the two screws and separate the
thermostat housing halves.
Remove the thermostat from
the thermostat
housing.
Thermosta
t
Bolts
Thermosta
t
Bolts
Air Vent Tube
Water Hose
Thermosta
t
