KYMCO MXU 300 - REAR WHEEL;REAR WHEEL HUB

15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-4
MXU 300/250
REAR WHEEL/REAR WHEEL
HUB
REMOVAL AND INSPECTION

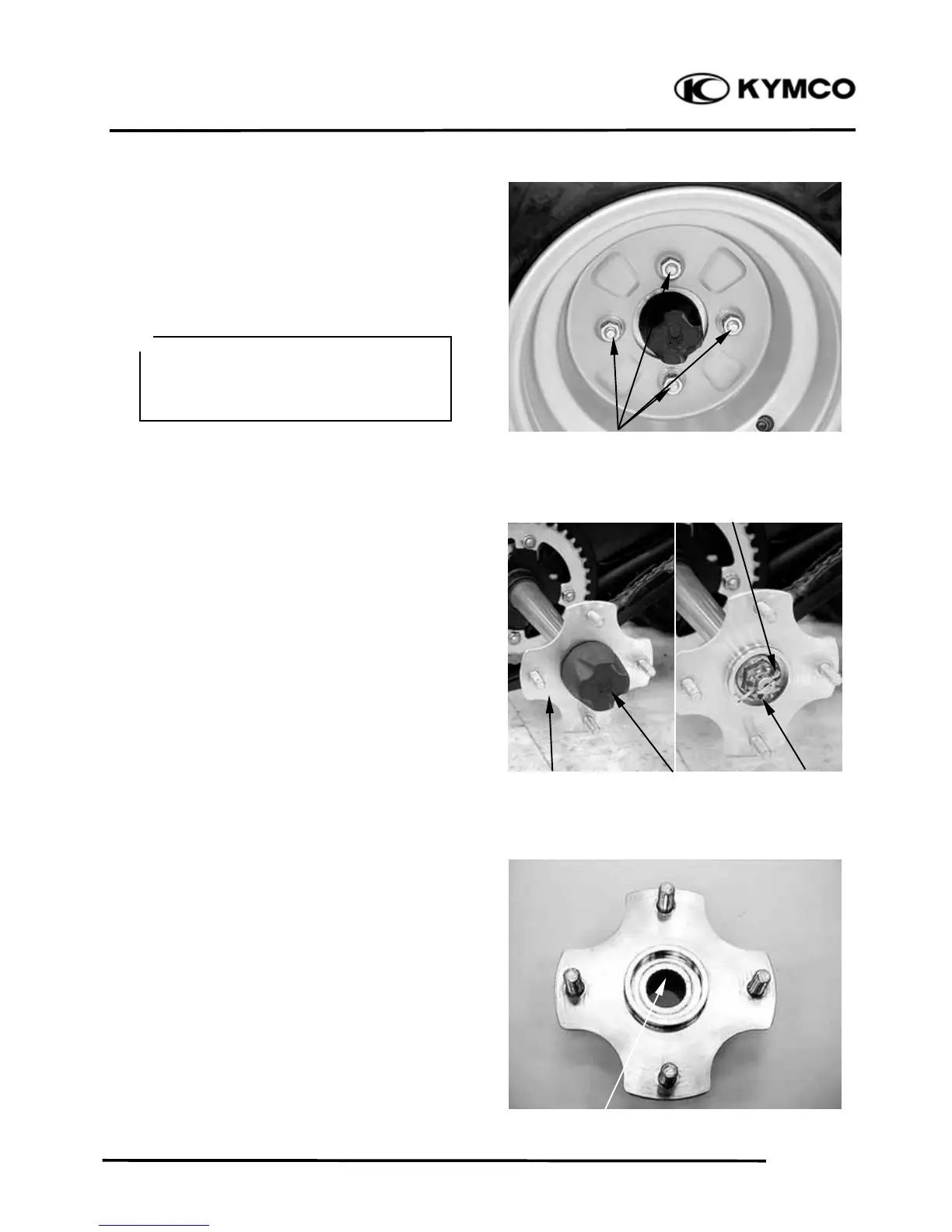

Remove four nuts attaching the rear wheel
hub of the both rear wheels, then remove
the both rear wheels.
Remove the nut cap.
Remove the cotter pin and then remove nut.
Remove the rear wheel hub.
Inspect the rear wheel hub.
Cracks/damage → Replace.
Inspect the rear wheel hub splines.
Wear/damage → Replace.
Wheel Nuts
Splines
Elevate the rear wheels by placing a
suitable stand under the rear of frame.
Support the machine securely so there is
no danger of it falling over.
＊
Cotter Pin
N
u
t
Rear Wheel Hub
N
ut Cap
