9.DRIVE AND DRIVEN PULLEYS
9-3
MXU 300/250

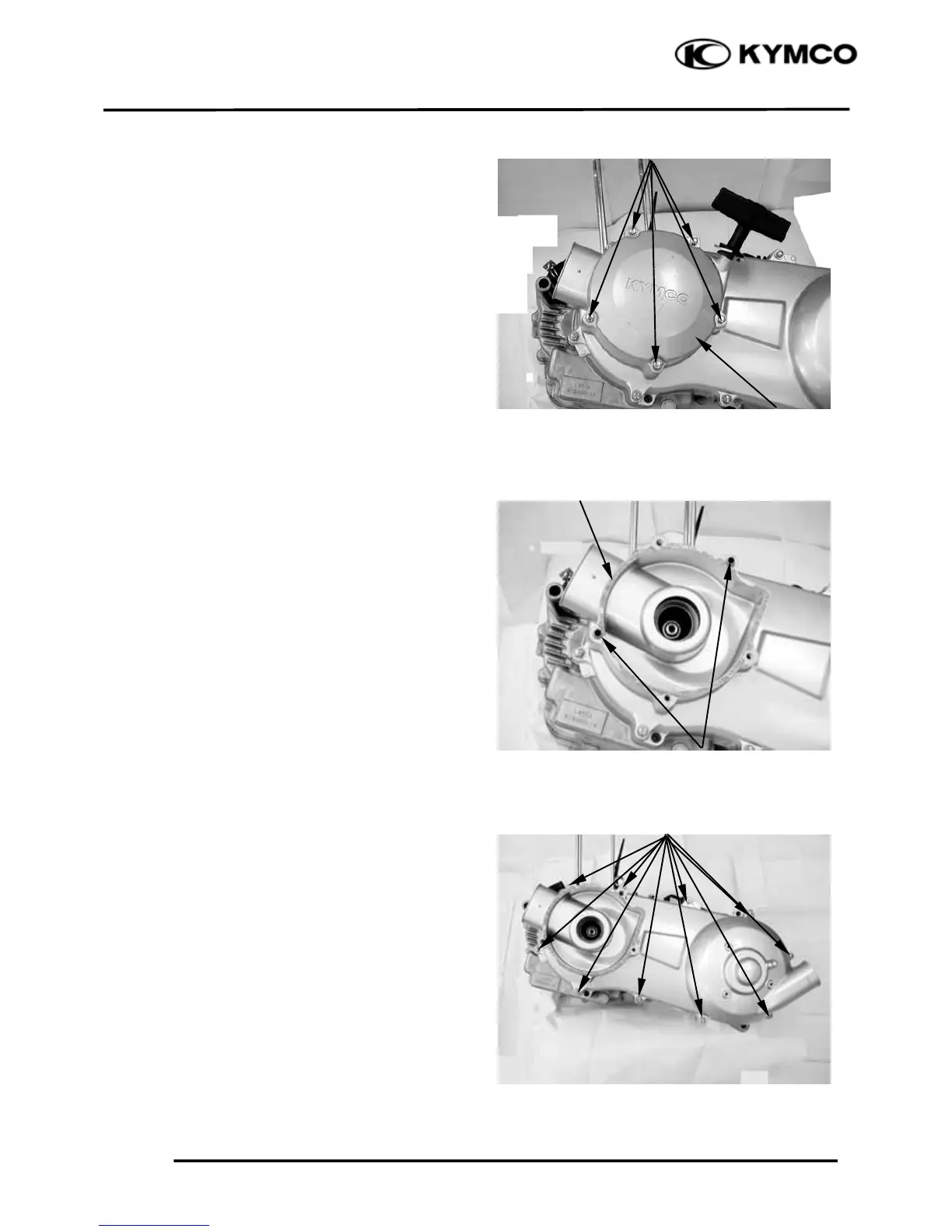

LEFT CRANKCASE COVER
REMOVAL
Remove the five bolts.
Remove the recoil starter cover.
Remove the dowel pins and gasket.
Disconnect drive belt air inlet and outlet hose
from left crankcase cover (see page 6-5).
Remove the left crankcase cover bolts and
left crankcase cover.
Remove the gasket and dowel pins.
Bolts
Recoil Starte
r
Cove
r
Dowel Pins
Gaske
t
Bolts
