10.FINAL REDUCTION/
TRANSMISSION SYSTEM
10-4
MXU 300/250
TRANSMISSION CASE COVER (MXU
250)
REMOVAL
Drain transmission gear oil into a clean
container. (Refer to the “TRANSMISSION
OIL REPLACEMENT” section in the chapter
3)
Remove the three bolts and then remove the
drive sprocket cover (see page 6-3).
Remove the two bolts and then remove the
washer and drive sprocket (see page 6-3).
Remove the bolt and then disconnect the
drive shift arm from the shift shaft (see page
6-3).
Disconnect the speedometer cable (see page
6-3).

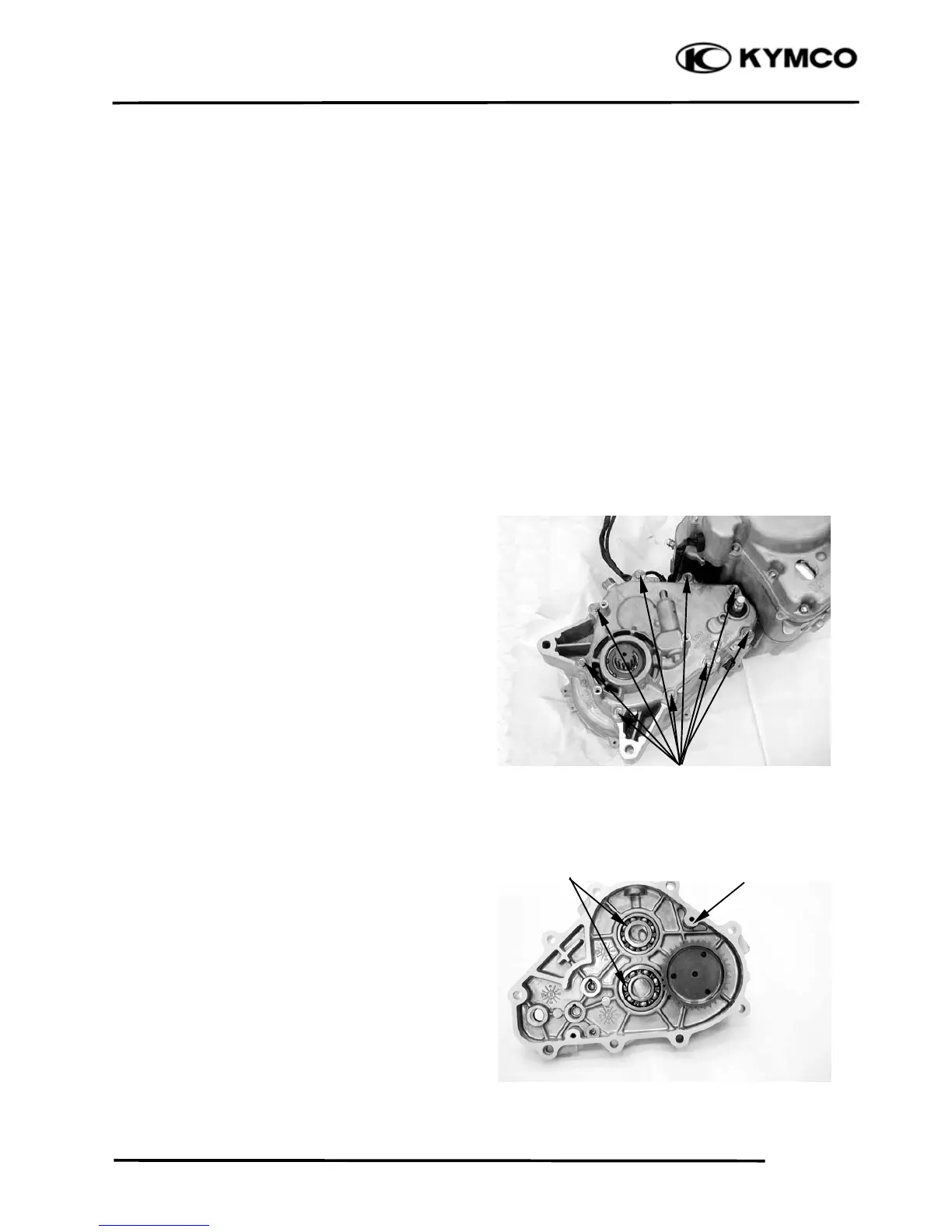

Remove the transmission case cover
attaching bolts.
Remove the transmission case cover, dowel
pins and gasket.
Inspect the bearings for allow play in the
transmission case cover or the bearings turn
roughly.
If any defects are found, replace the bearing
with a new one.
Transmission Case Cover
Bearings
Bolts
To Next Page
