13. BRAKE SYSTEM
13-12
MXU 300/250

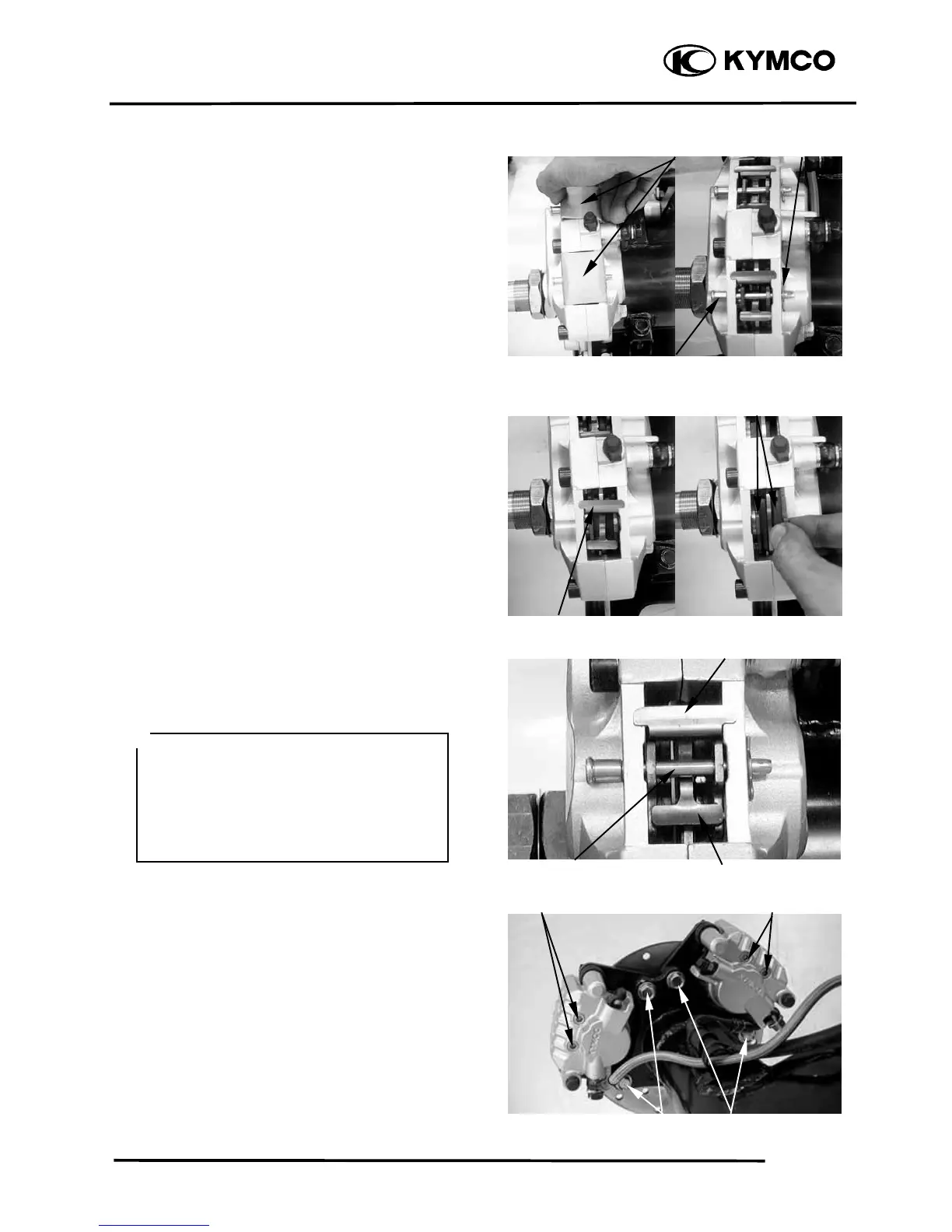

REAR HYDRAULIC BRAKE
REAR BRAKE PADS (MXU 250)
Removal
Remove the brake pads cover.
Remove the cotter pin and then pull out the
brake pad pin from the caliper.
Remove the brake spring plate and then
remove brake pads.
Installation
Reverse the “REAR BRAKE PADS
REMOVAL” procedures.
REAR BRAKE PADS (MXU 300)
Replacement
Remove the left rear wheel (page 15-4).
The rear and front brake pads are replaced
the same (page 13-3).
Brake Pad Cove
Cotter Pin
Brake Pad Pin
Spring Plate
Brake Pads
Spring Plate Small End
Brake Pad Pin
Spring Plate Big End
• Make sure put the spring plate big end
on the rear caliper.
• Make sure put the spring plate small
end on the rear pads.
• Make sure brake pad pin over the
spring plate.
＊
Bolts Bolts
Brake Pad Pins Brake Pad Pins
To Next Page
