KYMCO MXU 300 - REAR BRAKE MASTER CYLINDER (REAR BRAKE PEDAL)

13. BRAKE SYSTEM
13-16
MXU 300/250
REAR BRAKE MASTER
CYLINDER (REAR BRAKE
PEDAL)
REAR MASTER CYLINDER ON THE
LEFT HANDGRIP DISASSEMBLY
Refer to the “FRONT BRAKE MASTER
CYLINDER DISASSEMBLY” section in
the chapter 13.
ASSEMBLY
Refer to the “FRONT BRAKE MASTER
CYLINDER ASSEMBLY” section in the
chapter 13.

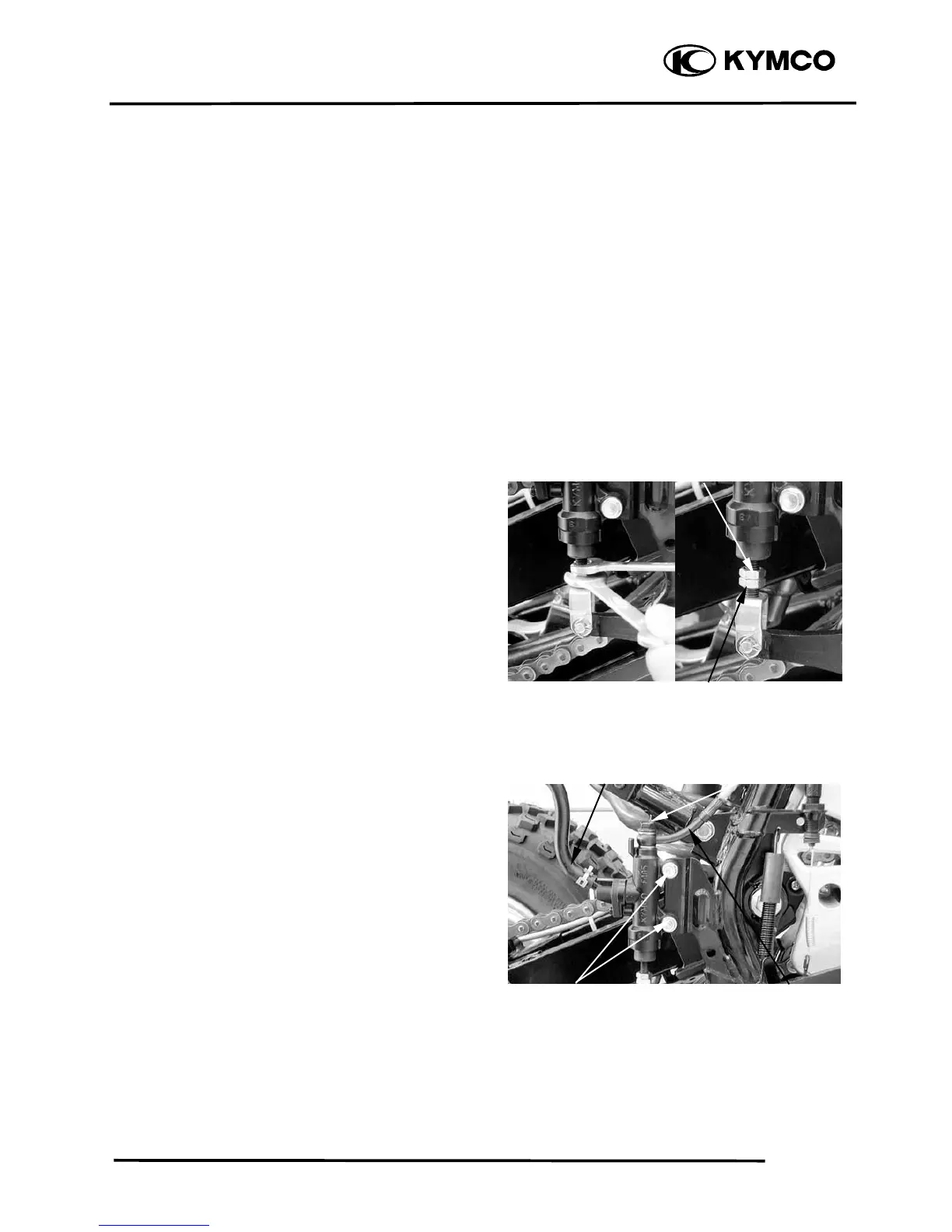

REAR MASTER CYLINDER ON THE
REAR BRAKE PEDAL DISASSEMBLY
Remove the brake reservoir cover.
Drain the brake fluid from the hydraulic
brake system. (
page
13-13)
Loosen the upper and lower nuts.
Hold the lower nut to turn clockwise and
tighten upper nut.
Turn the lower nut counterclockwise
disconnect the rear brake pedal.
Disconnect the fluid inlet tube and remove
the fluid bolt to disconnect the fluid outlet
tube.
Remove the two bolts and remove the
master cylinder.
Upper Nu
t
Lower Nu
t
Bolts
Fluid Inlet Tube
Fluid Outlet Tube
Fluid Outlet Tube Bol
t
