15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-36
MXU 300/250

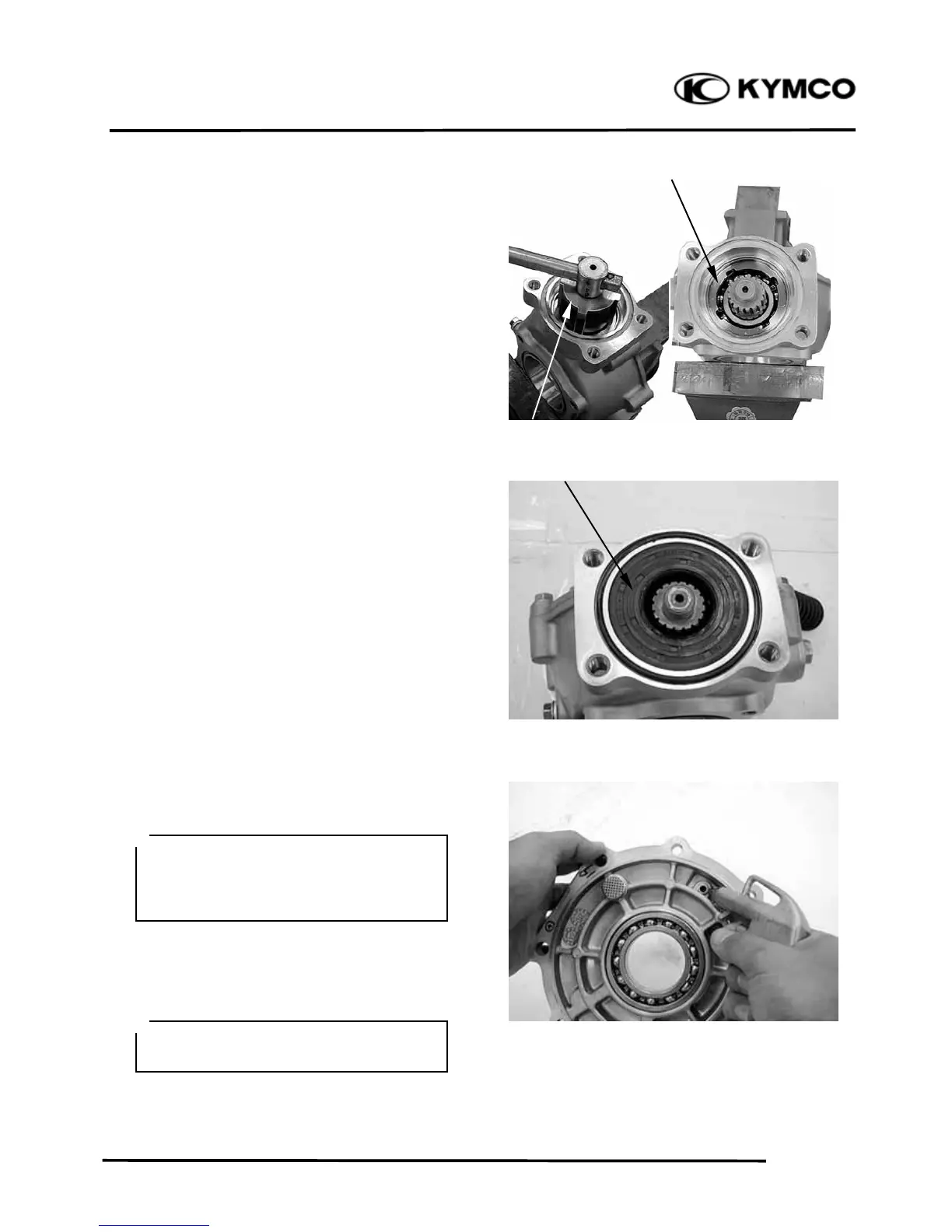

Install a new lock nut and tighten it to the
specified torque using the special tools.
Special tool:
Lock nut wrench F015
Torque: 100 N-m (10 kgf-m, 72 lbf-ft)
Apply grease to a new oil seal lips and
install it into the gear case until it is fully
seated.
FINAL GEAR CASE (MXU 300)
ASSEMBLY
Clean the mating surface of the gear case
and cover, being careful not to damage
them.
Blow compressed air through the breather
hole in the gear case.
Lock Nu
Lock Nut Wrench
Oil Seal
When the gear set, bearing, and/or gear
case has been replaced, check the tooth
contact pattern (page 15-30) and gear
backlash (page 15-26).
＊
Keep dust and dirt out of the case and
cover.
＊
To Next Page
