3. INSPECTION/ADJUSTMENT
3-12
MXU 300/250

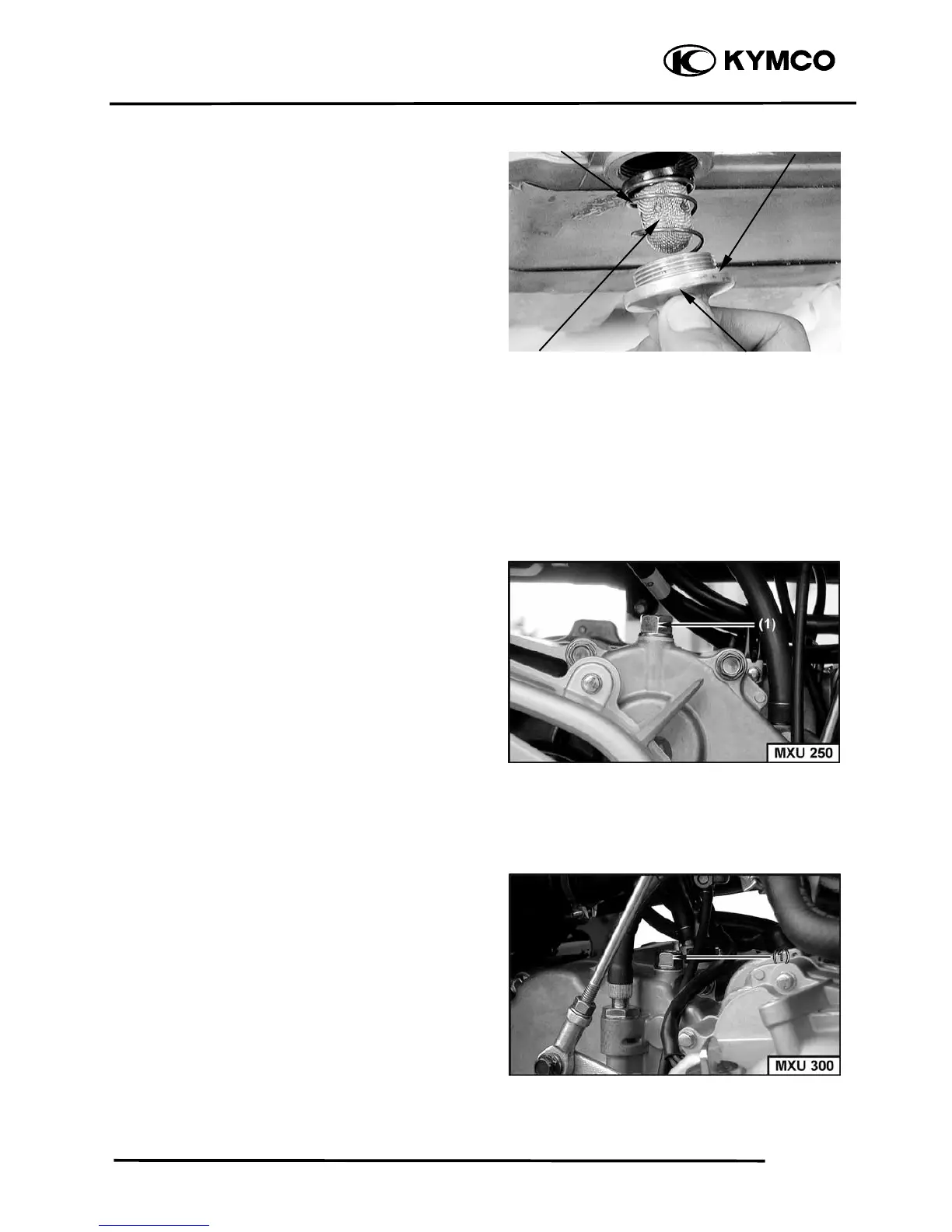

Clean the oil strainer with solvent.
Inspect the O-ring and replace if damaged.
Reinstall the O-ring, oil strainer,
compression spring and oil filter cap.
Tighten the oil filter cap to specification.
Torque: 1.5 kgf-m (15 Nm, 11 lbf-ft)
Fill the engine with oil and install the oil fill
cap.
Oil Capacity:
At disassembly:
1.6 liter (1.4 lmp qt, 1.7 Us qt)
At change:
1.4 liter (1.23 lmp qt, 1.48 Us qt)
TRANSMISSION OIL
REPLACEMENT
Place the machine on a level place.
Place a container under the engine.
Remove the oil filler bolt (1).
O-ring
Compression Spring
Oil Straine
To Next Page
