15. REAR WHEEL/AXLE/SUSPENSION/
DRIVING MECHANISM
15-6
MXU 300/250

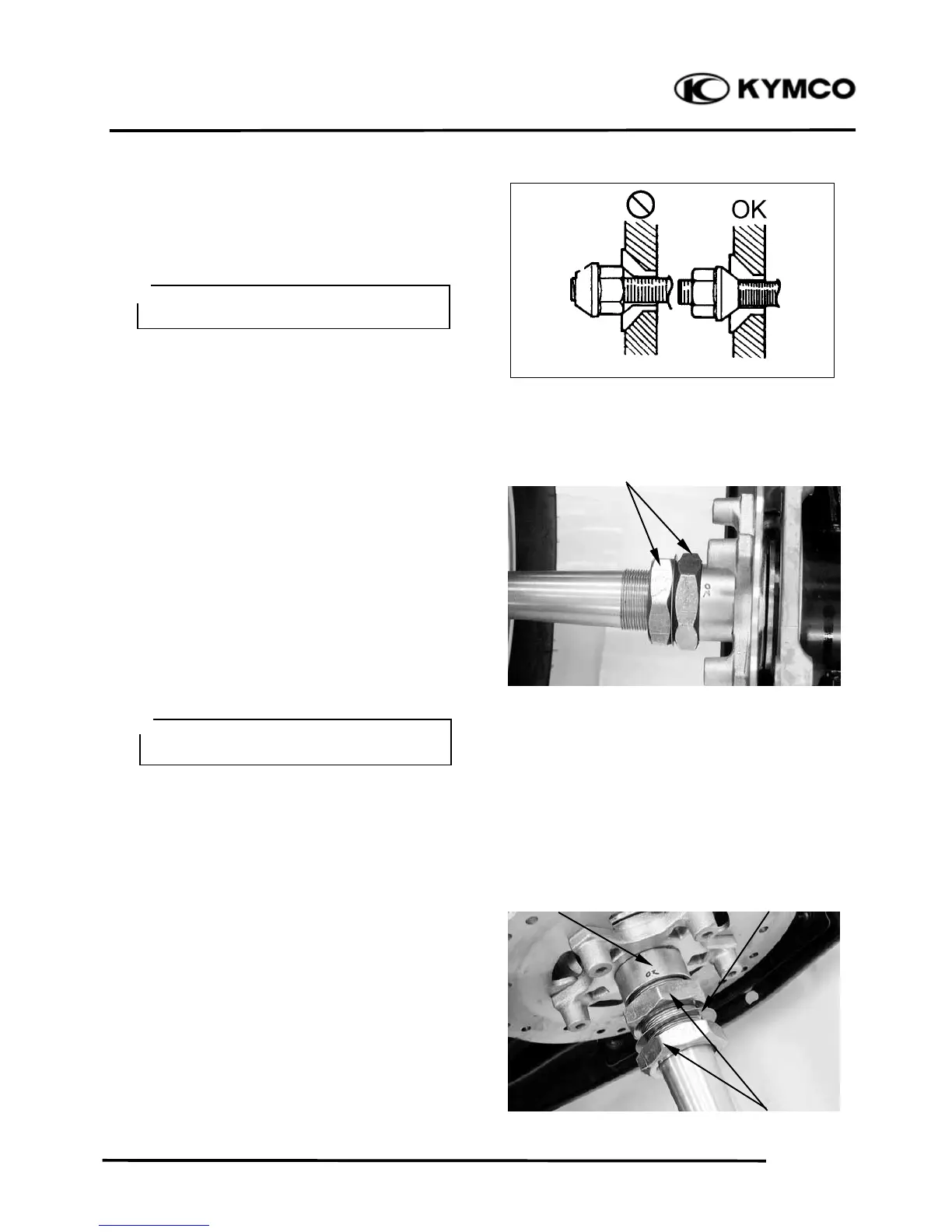

Install the rear wheel and tighten the four
nuts.
Torque: 4.5 kgf-m (45 Nm, 32 lbf-ft)
REAR AXLE/AXLE HUB (MXU
250)
REMOVAL AND INSPECTION
Place the machine on a level place.
Remove the rear caliper. (Refer to the
“REAR BRAKE CALIPER
REMOVAL” section in chapter 13)
Remove the rear wheels (page 15-4).
Use the nut wrench to loosen two rear axle
nuts (inner and outer) of the rear axle.
Special tool: Nut wrench F010
Remove the two rear axle nuts (outer and
inner), washer and collar.
Rear Axle Nuts
Washe
r
Colla
r
Rear Axle Nuts
Note that the rear axle nuts are left
threaded.
＊
Be sure the tapered side of the wheel nuts
face the wheel rim.
＊
