5. FUEL SYSTEM
5-15
MXU 300/250

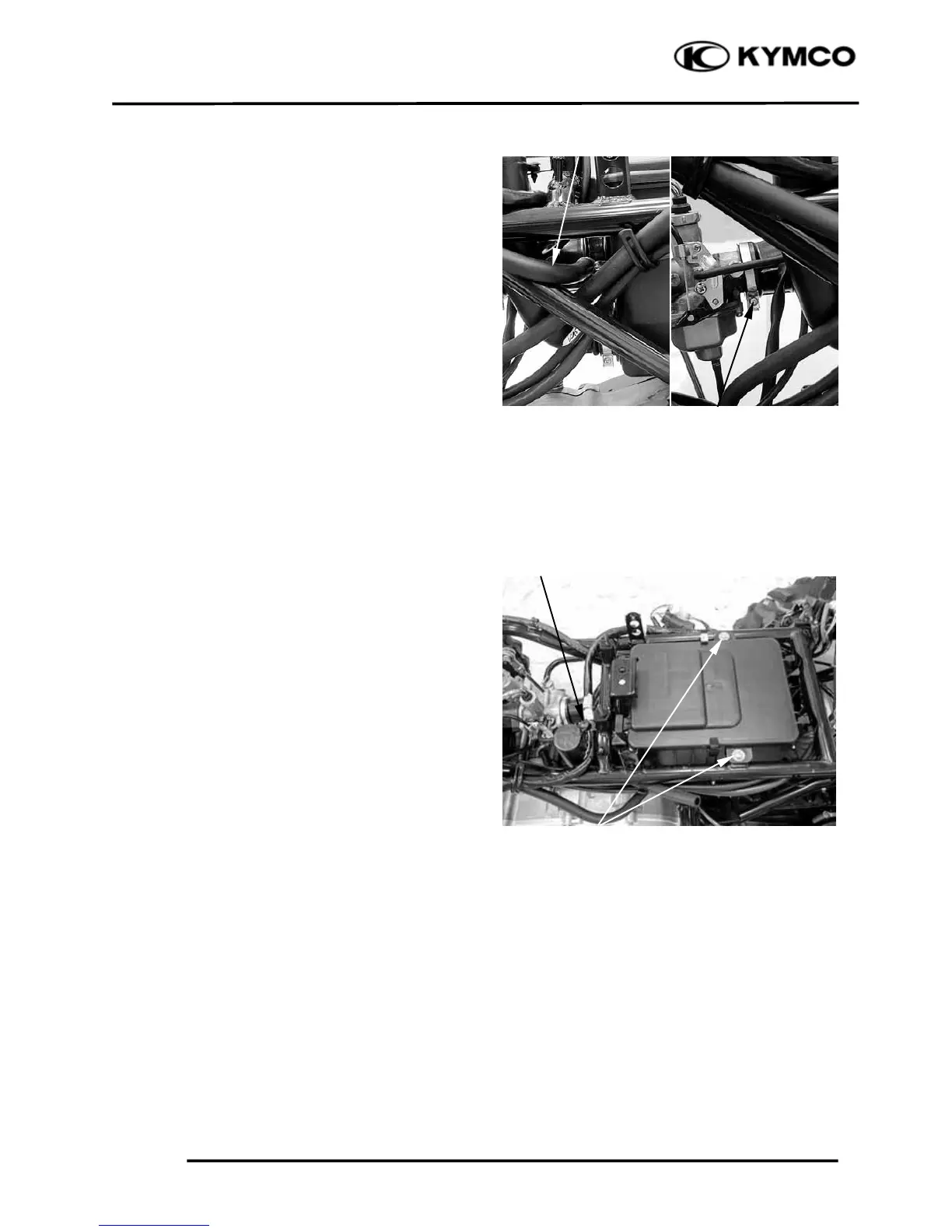

AIR CLEANER HOUSING
REMOVAL/INSTALLATION
Remove the seat (see page 2-3).
Remove the side covers (see page 2-6).
Remove the clip and disconnect the
crankcase breather hose from the crankcase.
Loosen the carburetor-to-air cleaner
connecting tube band screw.
Remove the intake air duct trim clip.
Remove the mounting bolts and then remove
the air cleaner housing from the carburetor
and the intake duct.
Installation is in the reverse order of
removal.
Breather Hose
Band Screw
Trim Clip
Bolts
To Next Page
